Aluminum Curtain Wall Automatic Tenon Milling Machine, aluminum door window machine, China aluminum window door machiner
- 100 Set / Sets per Month
- Qingdao
- T/T L/C Credit Card
- 5 days
Product Details
Brand Name: | Rebound | Place of Origin: | China | Model Number: | LXDW-250Z |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Aluminum Curtain Wall Automatic Tenon Milling Machine, aluminum door window machine, China aluminum window door machinery,
The aluminum door window machine is suitable for the majority of the longer curtain wall profiles, multi-batch molding process, one milling can achieved the required mortise size in the profile end.
LXDB-250Z Aluminum Curtain Wall Automatic Tenon Milling Machine Equipment advantages:
(1). This machine has profile fixed, tool movement, can achieve longer profiles multi-number, multi-batch molding process.
(2). Six sets of combination tools can be combined into any size according to user needs, which two sets of tools can be adjusted in the 180 ° range.
(3). One feeding can be achieved milling needed mortise size in the profile end, at the same time our company can make special thickness tools according to customer requirements to meet the customer's different tenon size requirements.
(4). Installed the worm gear reducer can achieve the smooth feeding of the tool, to ensure that the profile processing size.
LXDB-250Z Aluminum Curtain Wall Automatic Tenon Milling Machine Technical Parameters:
Power supply: 380V 50Hz
Motor total power: 13.2kw(Six groups)
Motor speed: 2800r/min
Feeding motor: 1.1kw
Air pressure: 0.5-0.8MPa
Motor shaft diameter: φ32mm
Number of milling cutter: 6 pieces
door and window profile φ250 milling cutter 4 pieces, 14″ milling cutter 2 pieces
curtain wall profile φ250 pieces 5 pieces, 14″ pieces 1 piece
Cutter feed stroke: 1650mm
Worktable size: 510×480 mm
Cutter adjustment: Horizontal 80 mm longitudinal 280 mm
Overall dimension:4000mm×1340mm×1965mm
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp:0086-132 9644 3055
QQ/WeChat:1303954009

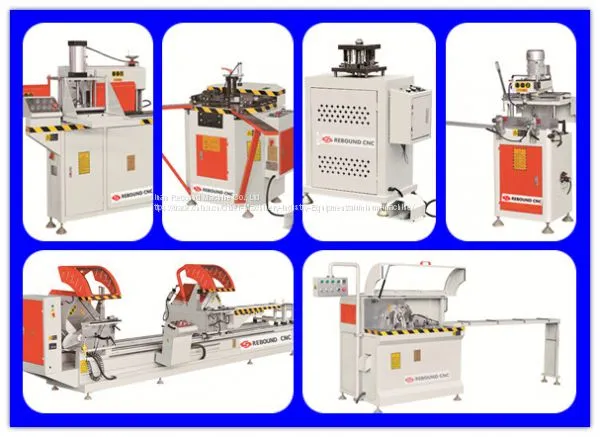

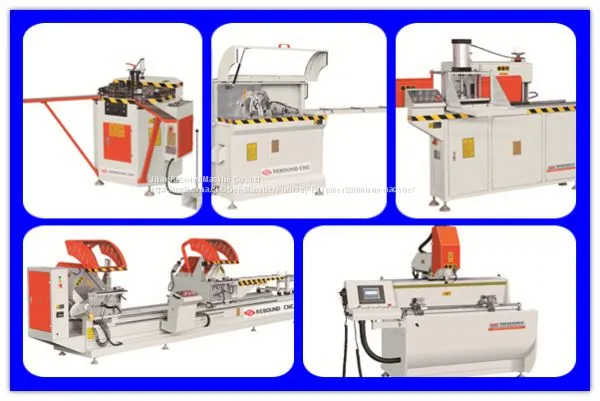

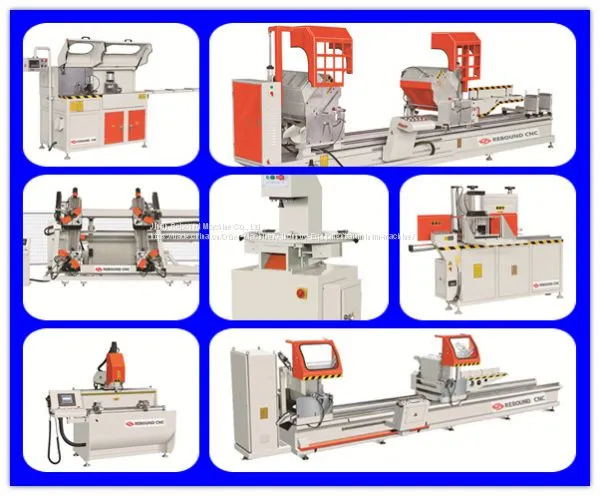

Other relevant aluminum door window machines:
