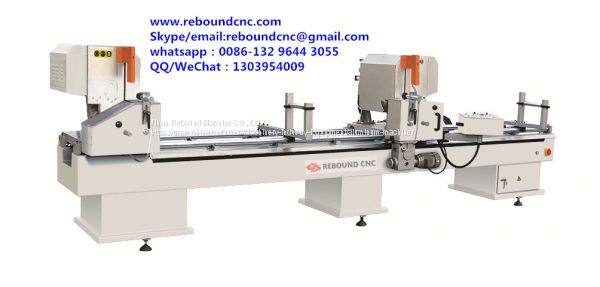

LJZ2-450*3700 Double Head Aluminum Saw for Door and Window,aluminum door and window making machinery
LJZ2-450*3700 Double Head Aluminum Saw for Door and Window Performance and Features:
(1). The machine is used for cutting aluminum profile.
(2). Imported carbide saw blade gives accurate processing and high efficiency.
(3). Two cutting heads can work together or single, when together work, one time can cut of the required length and angle.
(4). Right head adopts motor drive.
(5). Two saw head can be manually switching angle, realize the -45 degree, 90 degree, 45 degree angle cutting profile.
LJZ2-450*3700 Double Head Aluminum Saw for Door and Window Technical Parameters:
Power supply | 380V 50Hz |
Input Power | 3.0KW |
Working Air pressure | 0.5-0.8Mpa |
Blade rotational speed | 2800r /min |
Saw Blade specification | D=450mm d=30mm |
Cutting Length | Min380mm Max3700mm |
Cutting angle | 90° 45° |
Outside dimension(mm) | 4500mm×1300mm×1600mm |
Weight | 1500Kg |
Jinan Rebound Machine Co., Ltd China
Skype/email:reboundcnc@gmail.com
Whatsapp：0086-132 9644 3055
QQ/WeChat：1303954009
