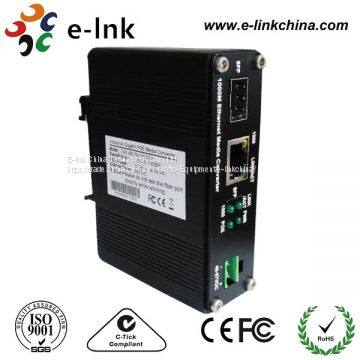

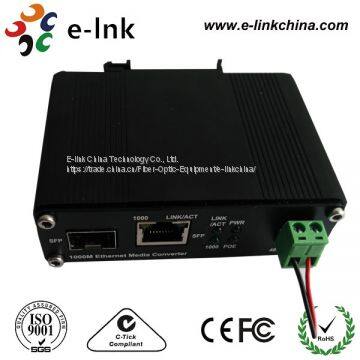

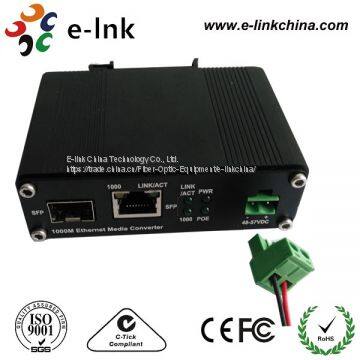

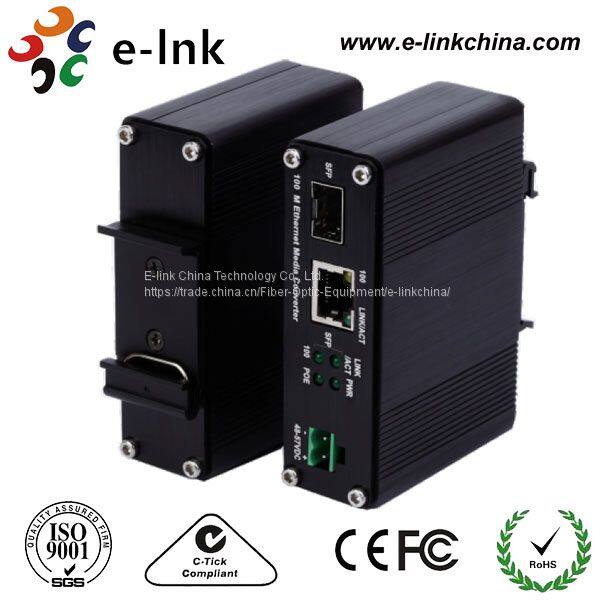

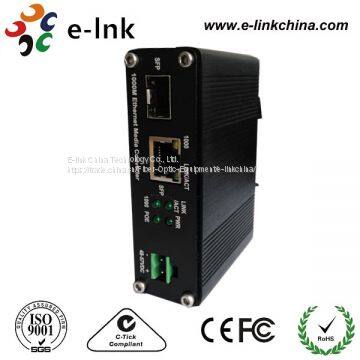

Hardened 10/100/1000Base-T to 1000Base-X SFP Ethernet Media Converter With PoE+

Standards:

IEEE802.3ab 1000Base-T

IEEE802.3az Gigabit Fiber

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

48VDC (Terminal Block)

Power Consumption:

36W Max. 0.75A@48VDC

Standard:

IEEE802.3at

PoE:

Port:

RJ45

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

1000TX:

Link/Activity, Speed

SFP:

Link/Activity

Dimensions (WxDxH):

95 x 70 x 28 mm

Weight:

0.25Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

LNK-IMC3011P-SFP

Hardened 10/1001000BASE-TX to 1000BASE SFP Ethernet   Media Converter with PoE+

SFP Options

► SFP option. Please select your SFP on our SFP Options   Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount   Bracket is included.

Power Options

► 60W/1.25A   48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
