Overview

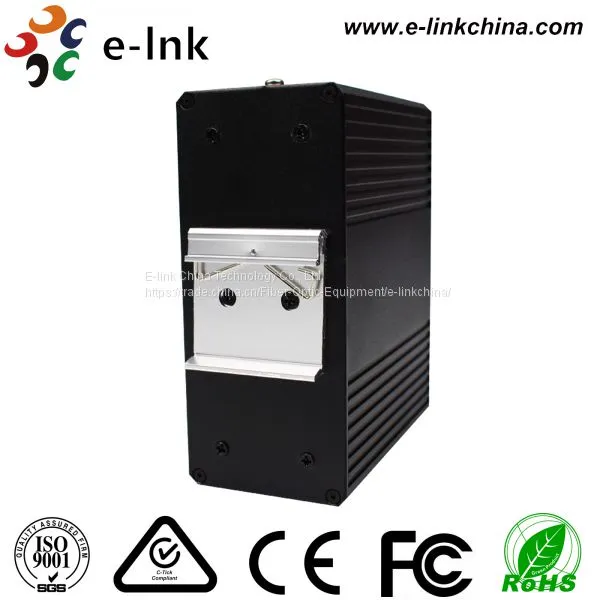

LNK-IMC800G is a unmanaged 8 ports 1000Base-FX SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. The Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -40oC to 80oC and DIN-Rail installation.
Features
8 1000Base-FX SFP + 2 10/100/1000Base-TX
10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports external SFP
Supports 802.3x Flow control
Supports 8K MAC address
1M bits frame buffer memory
Super lightening protection, IP40 protection
Excellent heat elimination without cooling fan
Supports Relay output for Power and Port failure
Redundant Power Inputs
Supports DIN-Rail and Wall-mount installation
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Warranty
5-Year Warranty

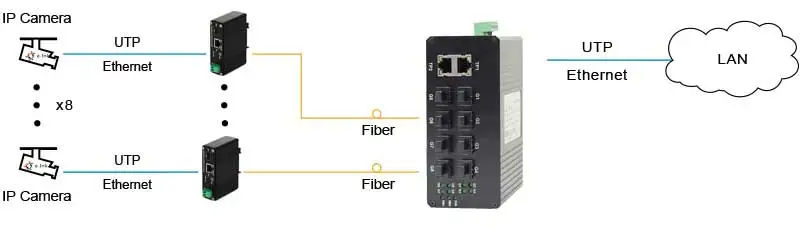

Typical Application
Technical Indexes
Ethernet | |
Standards | IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX | |
IEEE802.3ab 1000Base-T/FX | |
IEEE802.3z 1000Base-X | |
Processing Type | Store-and-Forward |
Switch Fabric | 24Gbps |
Forward Filter Rate | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
SwithPacket Buffer Memory | 1 Mbit |
Max. Packet Length | 1522 Bytes |
Address Table Size | 8K MAC Addresses |
Connector | 2 x RJ45 |
Optical Port | 8x SFP |
Electrical and Mechanical | |
Input Power | 12~36 VDC, Redundant Dual Input Power |
(6-pin Terminal Block) | |
Power Consumption | Max. 7W (System no-load) |
Max. 13W (System Full-load) | |
LED Indicators | |
Power | Power Status |
Ethernet (Per Port) | LINK/Activity, Speed |
SFP (Per Port) | LINK/Activity |
Dimensions (L x W x H) | 138 × 112 × 60 mm |
Weight | 710g |
Casing | Aluminum Case |
Mounting options | Din Rail, Wall Mount bracket included |
Environmental | |
Operation Temperature | -40°C to 80°C (-40°F to 176°F) (cold startup at -40°C) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity | 5% to 95% non-condensing |
MTBF | > 300,000 hrs |
Regulatory Approvals | |
ISO9001, CE, FCC, RoHS | |
EMI | |
EN55022:2010+AC: 2011, Class A | |
EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
EN 61000-3-3: 2013 | |
EN55024:2010 | |
EMS | |
IEC 61000-4-2: 2008 (ESD) | |
IEC 61000-4-3: 2010 (RS) | |
IEC 61000-4-4: 2012 (EFT) | |
IEC 61000-4-5: 2014 (Surge) | |
IEC 61000-4-6: 2013 (CS) | |
IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
Model | Description |
LNK-IMC800G | Hardened Unmanaged 8-port 1000Base-FX SFP + 2-port 10/100/1000Base-TX Optical Ethernet Switch |
SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
SFP module is to be purchased separately. | |
Mounting Options | Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
Power Options | 12-36VDC Power Supply. Open Wire for Terminal Block |
Power Supply is to be purchased separately. |
Product Quality:
• ISO9001 Quality System
• Full-Spectrum environment and electrical testing of all product design
• 48 hours aging test before delivery
• Qualified CE, RoHS, FCC
Product Advantage:
• Low cost
• Plug-and-play
• Build-in remote diagnostic capability
Since the launch of our products on the domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security, Bank , ect. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
Our knowledgeable sales, technical support and engineering staff are dedicated to understanding your requirements and designing products & solutions to meet your needs. We shall be pleased to provide you fiber optical network products with our best price, superior quality and fast delivery.
