Industrial PoE(PSE) 10/100/1000Base-TX to 1000Base-X SFP Media Converter
- 100 Pair / Pairs per Month
- shenzhen
- T/T Credit Card PayPal Other
- 3 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | E-link | Place of Origin: | China | Model Number: | LNK-POE1000SFP Series |
Product Description
Overview

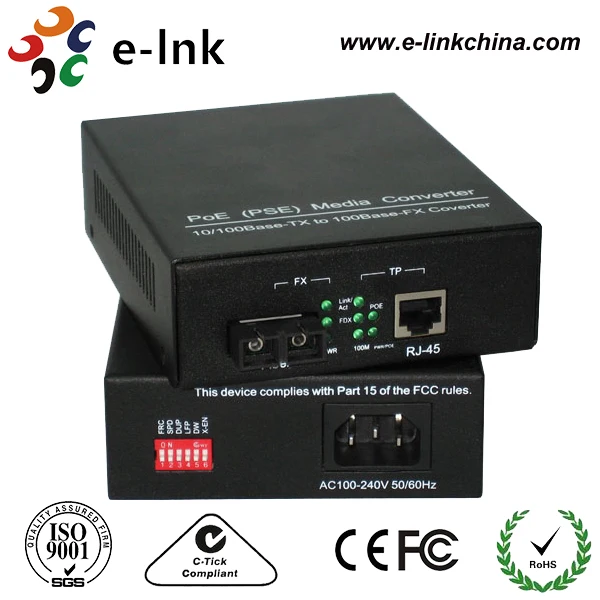

LNK-POE1000SFP series is a 10/100/1000Base-TX to 1000Base-X SFP (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function, etc. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.
Features
10/100/1000Base-TX UTP to 1000Base-X SFP fiber media conversion
IEEE802.3at / IEEE802.3af PoE PSE compatible
Built-in AC/DC power supply
Over-current protection
Supports external 1000Base-X SFP
DIP switch to set different configurations
LFP (Link Fault Pass-through) support
DIN mounted.
Technical Indexes
Data Rates | 10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx) |
1000Mbps (1000Base-FX) or 100Mbps (100Base-FX) | |
Input Power Requirements | |
Input voltage | 100 VAC to 240 VAC or 48DC |
Input frequency | 47 Hz to 63 Hz |
Power over Ethernet Output | |
Pin Assignment and Polarity | |
For IEEE802.3af standard | 1/2 (V+),3/6 (V-) |
For IEEE802.3at standard (30watts maximum) | 1/2 (V+),3/6 (V-) |
For IEEE802.3at standard (50watts maximum) | 1/2/4/5 (V+),3/6/7/8 (V-) |
Output Power | please refer to ordering information |
Efficiency | 75% min |
Short circuit protection | auto recovery |
Over current protection | auto recovery |
Environmental Conditions | |
Operating temperature | -20℃ to 70℃ |
Cooling | free air convection |
Storage temperature | -40℃ to +85℃ |
Operating Humidity | 90% max, non-condensing |
Mechanical Specifications | |
Case Material | Iron |
Case Color | Black |
Net Weight | 560g approx. / unit |
Dimensions | 110(W) x 40(H) x 140(L) (mm) |
Do not include transceiver length | |
Connectors | |
AC Inlet | IEC-J-4 |
LAN | Shielded RJ-45 |
Fiber | see ordering information |
*Specifications subject to change without notice.
Ordering Information:
Part Number | Supported Standard | Output Voltage | Output Current | Output Power | Remark |
LNK-POE1000S-XX-XXX | IEEE 802.3af | 48V | 0.35A max | 15.4W max | default |
LNK-POE1000-XX-XXX | IEEE 802.3af | 48V | 0.54A max | 25W max | default |
LNK-POE1000T-XX-XXX | IEEE 802.3at | 52V | 0.60A max | 30W max | default |
LNK-POE1000H-XX-XXX | IEEE 802.3at | 52V | 1.00A max | 50W max | default |
LNK-POE1000B-XX-XXX | Non-standard | 48V | 0.60A max | 30W max | optional |
LNK-POE1000C-XX-XXX | Non-standard | 24V | 1.20A max | 30W max | optional |
*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.
Suffix | Description | Suffix | Description |
SFP-M005 | LC/SFP, Multi-Mode, 550m , 850nm | SFP-S20 | LC/SFP, Single-Mode, 20km , 1310nm |
SFP-S10 | LC/SFP, Single-Mode, 10km , 1310nm | SFP-S40 | LC/SFP, Single-Mode, 40km , 1310nm |
