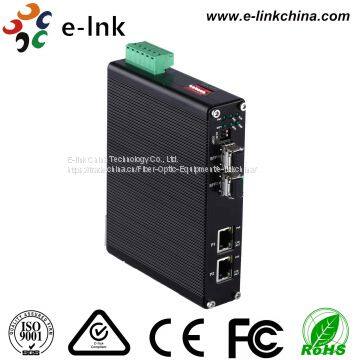

Self-Configured Hardened 2-port 10/100/1000BASE-T + 2-port 1000BASE-FX SFP Ethernet Switch

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

2048 MAC Addresses

Connector:

2 x RJ45

Optical Port:

2 x SFP 1000Base-X

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

2 x 9-36VDC (Terminal Block)

Power Consumption

5W Max. 0.1A@24VDC

Port:

RJ45 Port 1 ~ Port 2

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE

Per Port Status

Ethernet(Per Port):

Link/Activity

SFP:

Link

Dimensions (WxDxH):

148 x 120 x 31 mm

Weight:

0.4Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022 Class A, FCC part 15 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

LNK-IMC2200G-SFP

Self-configured Hardened 2-Port 10/100/1000BASE-T + 2-Port 1000BASE SFP Ethernet Switch

SFP Options

SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

SFP module is to be purchased separately.

Mounting Options

Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

Power Supply is to be purchased separately.
