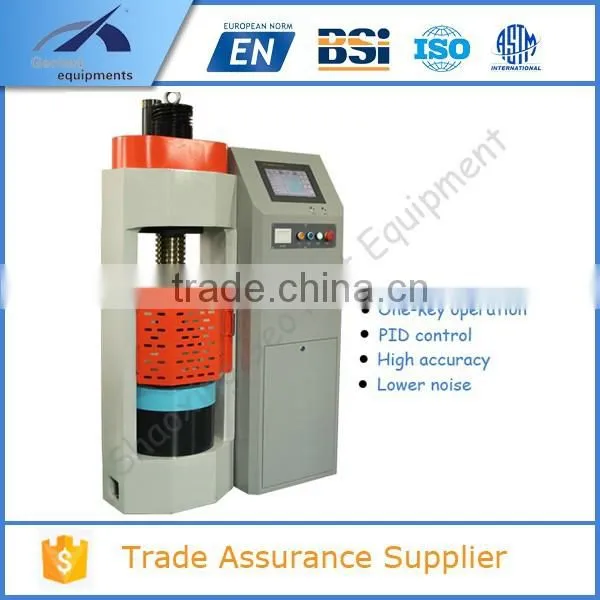

Compressive strength test machine price
GB/T50081-2002,GB/T2542-2012
Features:
1.The Compressive strength test equipment using frame structure,has screw lifting structure, fuel tanks mounted under design,the lift motor can drive the screw to adjust the test space.
2.The Compressive strength test equipment using the latest technology of servo pump
control Loading system,low noise, fast response, and stable.
3.Screw down automatically when the test begin and up automatically when the test finished ,which ensure the test to be finished efficiently.
4.10-inch touch panel PC man-machine interface, combined with the Independently developed
embedded control software, structure is compact and convenient for operation.
5.During the test the computer can automatically display the load, strength, speed and load curves, automatically determine the sample broken,calculate and save the test results, can query and print the complete test report.
Compressive strength test machine price
Model | CTM-2000B | CTM-3000B |
Max.load(kN) | 2000 | 3000 |
Measuring range(kN) | 200kN-2000kN | 300kN-3000kN |
Loading measuring accuracy | ≤±1% | |
Upper Platen size(mm) | 250×220 | 330×320 |
Under Platen size(mm) | 250×220 | 330×320 |
Max.distance between upper and lower pressure plate(mm)(mm) | 370 | 370 |
Max.Piston stroke (mm) | 60 | 80 |
Effective column distance (mm) | 390 | 490 |
Power(kW) | 1.8 | |
Input Voltage | AC220V ±10% | |
Overall dimensions(mm) | 980 × 440 ×1350 | 1180 × 480 × 1500 |
Approx Weight(kg) | 1350 | 2200 |
Compressive strength test machine price
Compressive strength test machine price
CTM-2000B/3000B Price Tensile Compression Testing Manchine
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
