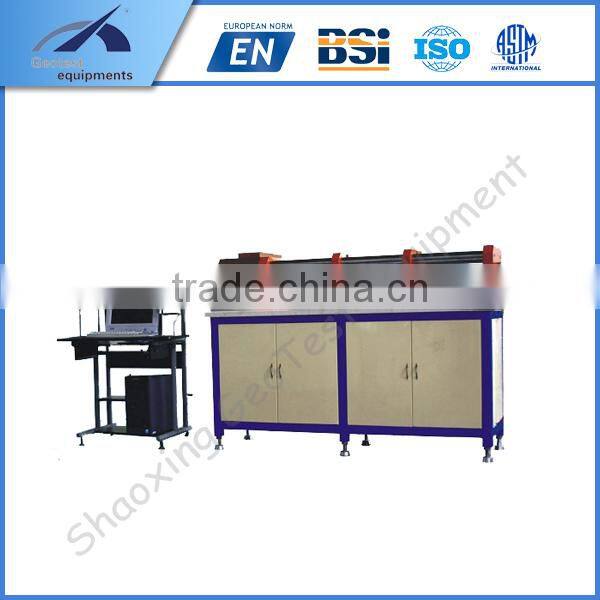

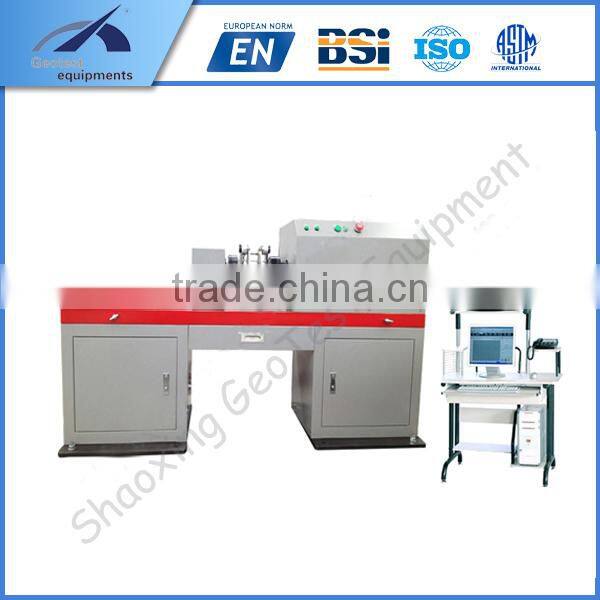

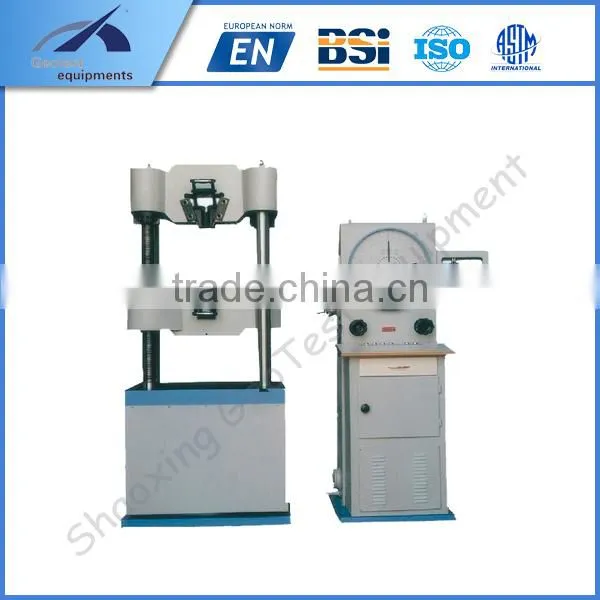

Analoge universal tensile testing machine
1. Specification
a. It is mainly used to do tensile test for metal and non metal material.
b. It also used to do tensile, compression, bending, shear, flexure, strength for metal and non metal material.
c. The control system using pressure sensor, high precision of measurement.
d. It uses high precision of displacement sensor to measure the displacement.
e. It can print complete test report.
| Model & Specifications | UTM-300AT | UTM-600AT | UTM-1000AT |
| Capacity | 300KN | 600KN | 1000KN |
| Measuring range | 0-60KN: 0.2KN/d 0-150KN:0.5KN/d 0-300KN: 1KN/d
| 0-120KN:0.5KN/d 0-300KN: 1KN/d 0-600KN: 2KN/d
| 0-200KN: 0.5KN/d 0-500KN: 1KN/d 0-1000KN: 2KN/d |
| Accuracy | ±1% | ±1% | ±1% |
| Tensile space | 620mm | 680mm | 680mm |
| Thickness of flat specimens | 0-15mm | 0-30mm | 0-40mm |
| Diameter of round specimens | Φ10-32mm | Φ13-40mm | Φ20-60mm |
| Distance between bending roller | 100-480mm | 100-660mm | 100-700mm |
| Diameter of shearing specimens | Φ10mm | Φ10mm | Φ10mm |
| Overall dimensions(main frame) | 640×550×1800mm | 900×600×2200mm | 1060×760×2400mm |
| Power | 1.5KW | 1.65KW | 2.25KW |
Analoge universal tensile testing machine
Analoge universal tensile testing machine
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
