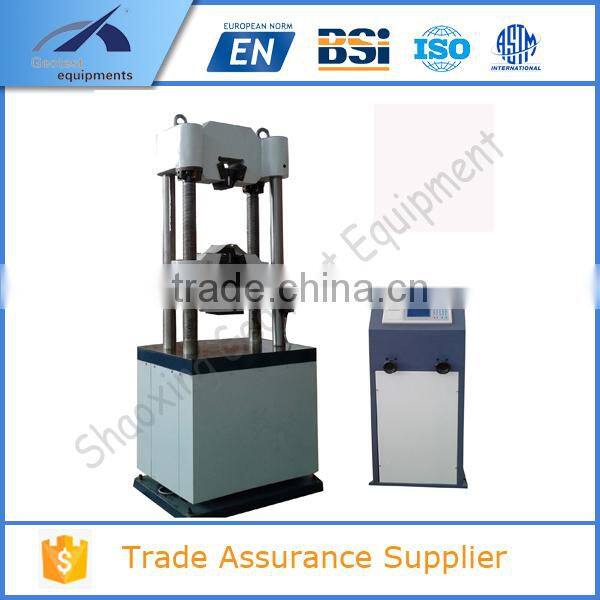

UTM-D Series Digital Universal Testing Machine
Characteristics:
It is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
Advantages:
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
| Model | UTM-300D | UTM-600D | UTM-1000D |
| Capacity | 300KN | 600KN | 1000KN |
| Accuracy | ±1% | ±1% | ±1% |
| Tensile space | 620mm | 680mm | 680mm |
| Thickness of flat specimens | 0-15mm | 0-30mm | 0-40mm |
| Diameter of round specimens | Φ10-32mm | Φ13-40mm | Φ20-60mm |
| Distance between bending rollers | 100-480mm | 100-660mm | 100-700mm |
| Diameter of shearing specimens | Φ10mm | Φ10mm | Φ10mm |
| Overall dimensions(frame) | 640x550x1800mm | 900x600x2200mm | 1060x760x2400mm |
| Power | 1500W | 1650W | 2250W |
