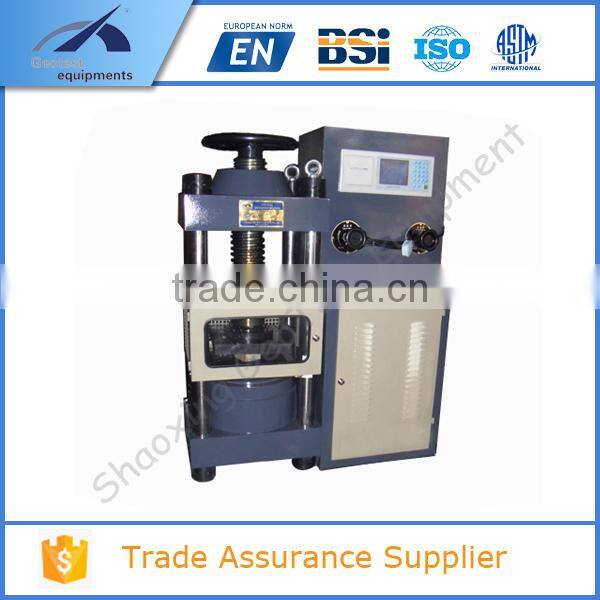

2000KN LCD Concrete Compression Testing Machine (hand-wheel)

Name: 2000KN LCD Concrete Compression Testing Machine (hand-wheel)
Brand: GEOTEST EQUIPMENTS
SKU: 143207898
Availability: InStock

Shaoxing GeoTest Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GEOTEST EQUIPMENTS

Model Number:

CTM-2000L

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Negotiable

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GEOTEST EQUIPMENTS

Model Number CTM-2000L

Power Electronic

Usage Compression Testing Machine

2000KN LCD Concrete Compression Testing Machine (hand-wheel)

Characteristic

a. The machine is suitable for doing compressive strength test of the building materials such as brick, cement mortar, and concrete and so on.

b. It is also suitable for the mechanical properties test for other materials.

c. The machine is of hydraulic loading and electronic dynamometry.

d. The machine has functions such as loading pressure in digital display, Max. loading pressure maintenance, power-off data protection and so on.

e. It can automatically process the test data and automatically print out the test report.

Our products are 100% supplied from the factory

If you are interested in our products, you can contact us directly or welcome to visit our site:

SKYPE ID: sun.nancy3

Loading capacity		2000kN
Measuring range		0-2000kN
Relative indication error		±1%
Size of bearing platen		320mm×260mm
Max. distance between upper and lower platen		320mm
Max. piston stroke		40mm
Diameter of piston		Φ250mm
Rated pressure of the hydraulic pump		40Mpa
Power		220V 50Hz 1ph 0.75KW 380V 3ph 0.75KW
Dimensions		960×480×1285mm
Net weight		About 800kg
