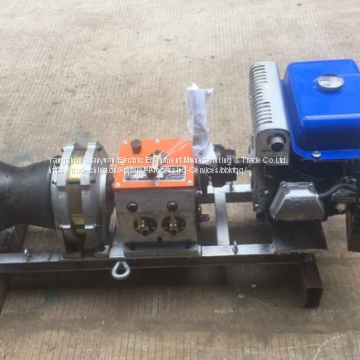

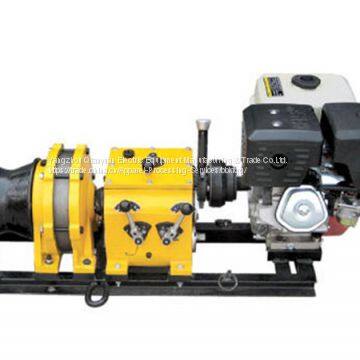

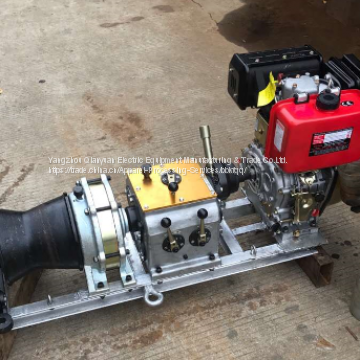

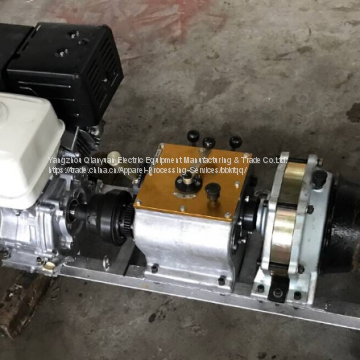

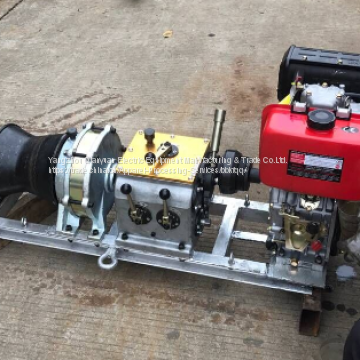

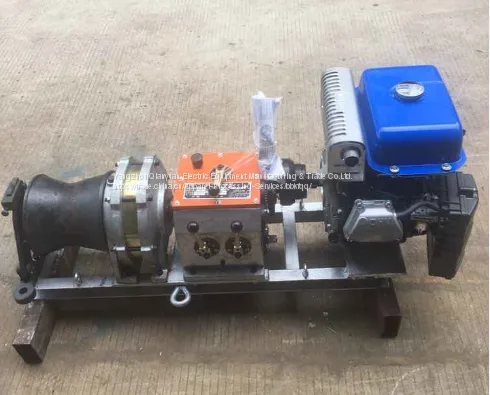

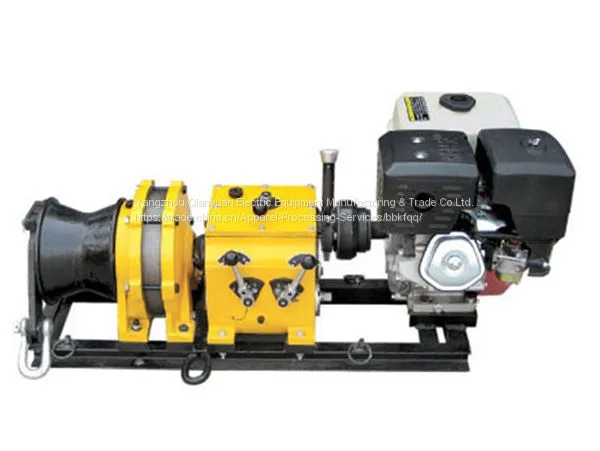

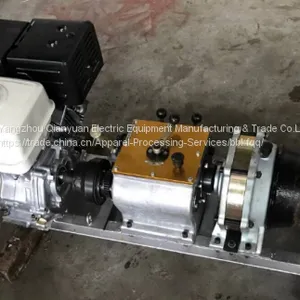

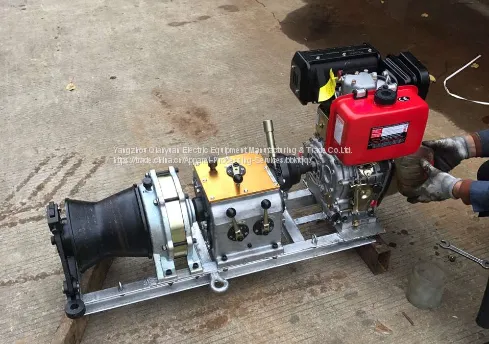

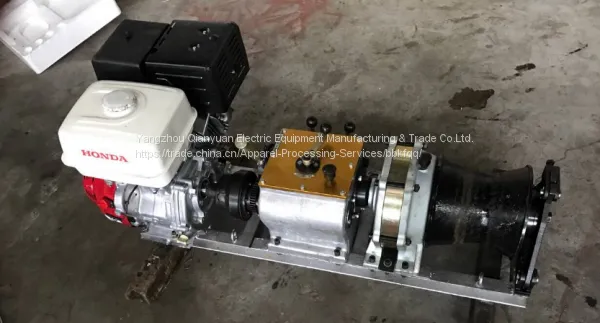

Fast Speed Engine Powered Winch of various type including petrol, diesel and electric winch, which is widely used in electric overhead powerline transmission project. This kind of Motorised Winch is specially used for pulling and tensioning cable or conductors instead of human labor with high efficiency, fast speed and small volume(easy to carry). Besides, it is also used for lifting and pulling heavy objects in various industries such as mining, fish shiping, building and so on. The most excellent characristic of this Gas Winch is that its speed can be adjusted according to the pulling force.
Fast Speed Engine Powered Winch is used to erecting,pulling and lifting operation in electric power line construction.
1)Characteristics: Fast speed range, multi-gears, wide application, compact, light, small volume, safe, reliable, high efficiency, etc.
2)Composition: Petrol or Diesel Engine, Clutch, Transform Gear Box, Brake, Planetary Gear Reducer Drum(groove bottom dia.160mm), equipped with Bottom Frame with Anchoring Eyes.
| Product No. | Model | Rated Load (KN) | Gear | Pulling Force (KN) | Pulling Speed (m/min) | Power (KW) | Dimensions (mm) | Total Weight (KG) |
| 10048 | FM-5P (Petrol) | 50 | Slow | 9.8(1T) | 24 | 6.7 | 1100*525*600 | 140 |
| Middle | 14.7(1.5T) | 13 | ||||||
| Middle | 24.5(2.5T) | 8 | ||||||
| Fast | 49(5T) | 4 | ||||||
| 10049 | FM-5D (Diesel) | 50 | Slow | 9.8(1T) | 24 | 4.8 | 1100*565*600 | 160 |
| Middle | 14.7(1.5T) | 13 | ||||||
| Middle | 24.5(2.5T) | 8 | ||||||
| Fast | 49(5T) | 4 | ||||||
| 10050 | FM-8P (Petrol) | 80 | Slow | 9.8(1T) | 28 | 11.76 | 1250*525*615 | 165 |
| Middle | 27.44(3T) | 16 | ||||||
| Middle | 39.2(4T) | 8 | ||||||
| Fast | 78.4(8T) | 4 | ||||||
| 10051 | FM-8D (Diesel) | 80 | Slow | 9.8(1T) | 28 | 8.5 | 1250*565*615 | 190 |
| Middle | 27.44(3T) | 16 | ||||||
| Middle | 39.2(4T) | 8 | ||||||
| Fast | 78.4(8T) | 4 |
