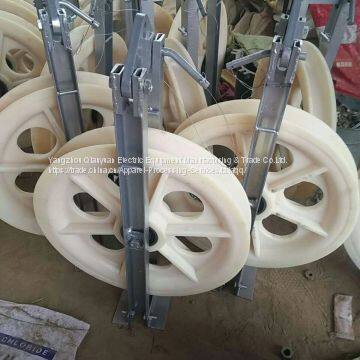

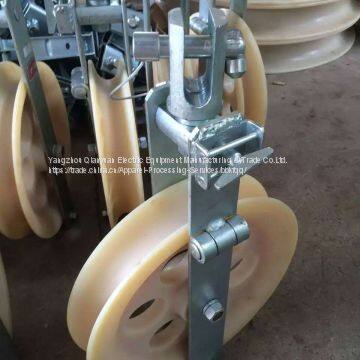

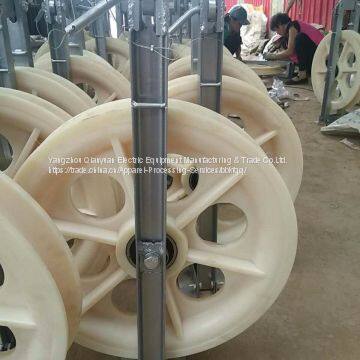

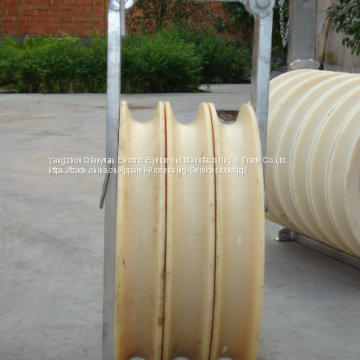

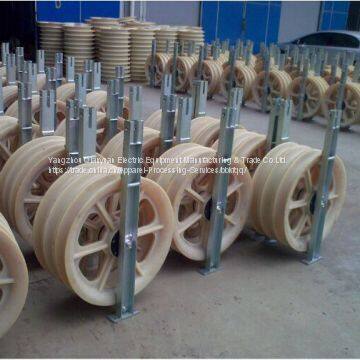

ACSR Conductor string pulley blocks
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Technical Data of Large 660mm Diameter Bundled Conductor Pulley Stringing Block with Nylon Wheel
Large 660mm Diameter Bundled Conductor Pulley Stringing Block with Nylon Wheel
Details
1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley Wheel Width: 100mm
3. Diameter: 660mm Wheel Width: 100mm
4. Nylon Wheels
Features: 1.Nylon sheave ; 2.Sheave number:1-7 ; 3.Used to pay off wire or cable.
Technical Parameters:
| Product NO. | Model | Sheave | Rated Load (KN) | Out-Dia*In-Dia*Width (mm) | ACSR (mm2) | Weight (kg) | Remark |
| 10065 | XH1-508*75A | 1 | 20 | 508*408*75 | ≤400 | 25 | Aluminum |
| 10066 | XH1-508*75N | 1 | 20 | 508*408*75 | ≤400 | 16.5 | MC Nylon |
| 10067 | XH3-508*75A | 3 | 40 | 508*408*75 | ≤400 | 58 | Aluminum |
| 10068 | XH3-508*75N | 3 | 40 | 508*408*75 | ≤400 | 38.5 | MC Nylon |
| 10069 | XH5-508*75A | 5 | 60 | 508*408*75 | ≤400 | 88 | Aluminum |
| 10070 | XH5-508*75N | 5 | 60 | 508*408*75 | ≤400 | 55.5 | MC Nylon |
| 10071 | XH7-508*75A | 7 | 100 | 508*408*75 | ≤400 | 150 | Aluminum |
| 10072 | XH7-508*75N | 7 | 100 | 508*408*75 | ≤400 | 105 | MC Nylon |
| 10073 | XH1-660*100A | 1 | 20 | 660*560*100 | ≤500 | 45 | Aluminum |
| 10074 | XH1-660*100N | 1 | 20 | 660*560*100 | ≤500 | 34.5 | MC Nylon |
| 10075 | XH3-660*100A | 3 | 40 | 660*560*100 | ≤500 | 113 | Aluminum |
| 10076 | XH3-660*100N | 3 | 40 | 660*560*100 | ≤500 | 78 | MC Nylon |
| 10077 | XH5-660*100A | 5 | 60 | 660*560*100 | ≤500 | 152 | Aluminum |
| 10078 | XH5-660*100N | 5 | 60 | 660*560*100 | ≤500 | 120 | MC Nylon |
| 10079 | XH7-660*100A | 7 | 100 | 660*560*100 | ≤500 | 226 | Aluminum |
| 10080 | XH7-660*100N | 7 | 100 | 660*560*100 | ≤500 | 186 | MC Nylon |
| 10081 | XH1-830*110N | 1 | 30 | 830*710*110 | ≤630 | 30 | MC Nylon |
| 10082 | XH3-830*110N | 3 | 60 | 830*710*110 | ≤630 | 118 | |
| 10083 | XH5-830*110N | 5 | 120 | 830*710*110 | ≤630 | 180 | |
| 10084 | XH7-830*110N | 7 | 130 | 830*710*110 | ≤630 | 290 | |
| 10085 | XH1-916*110N | 1 | 50 | 916*800*110 | ≤800 | 45 | MC Nylon |
| 10086 | XH3-916*110N | 3 | 110 | 916*800*110 | ≤800 | 140 | |
| 10087 | XH5-916*110N | 5 | 150 | 916*800*110 | ≤800 | 235 | |
| 10088 | XH7-916*110N | 7 | 180 | 916*800*110 | ≤800 | 335 |
