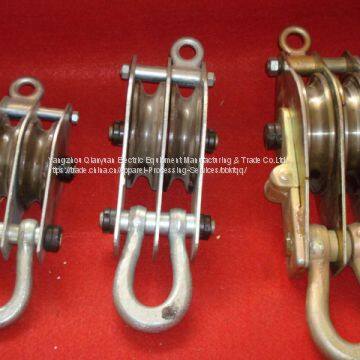

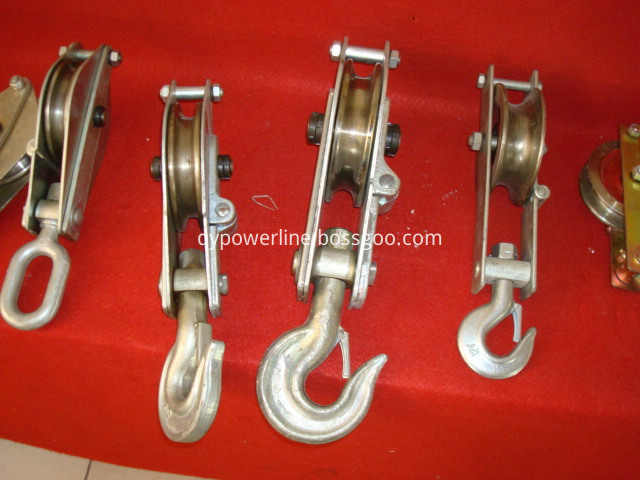

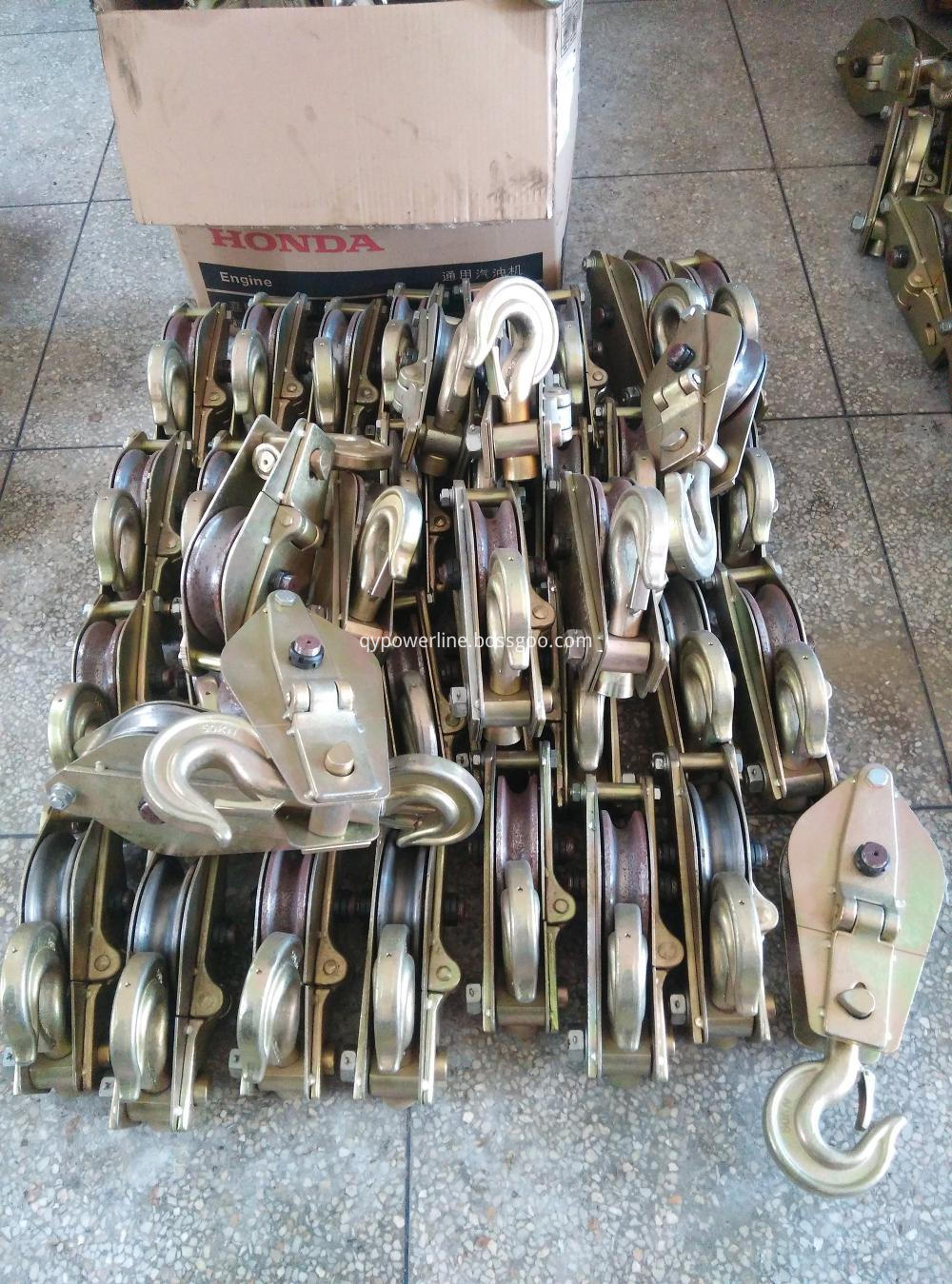

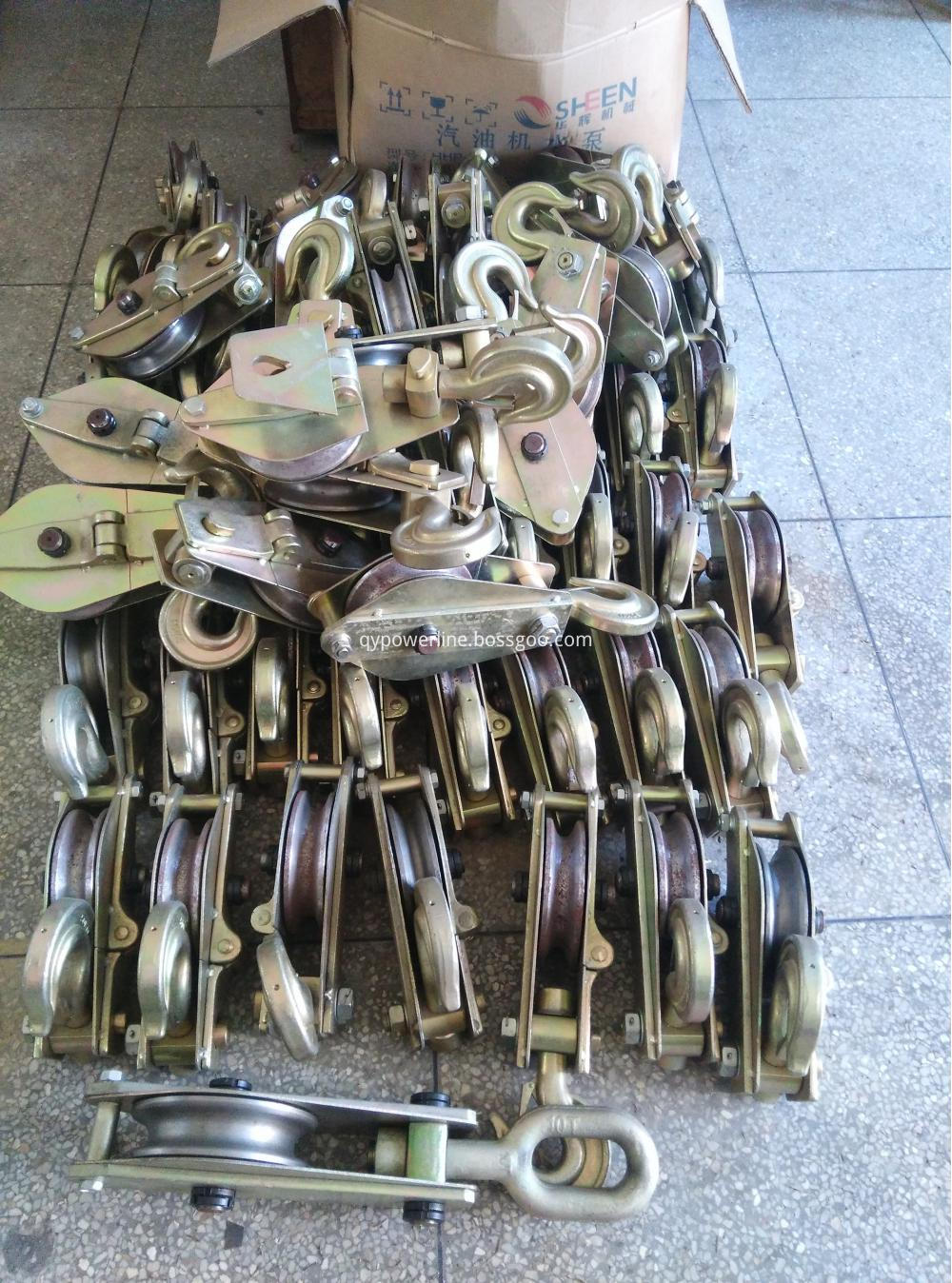

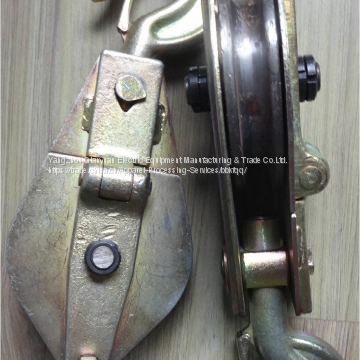

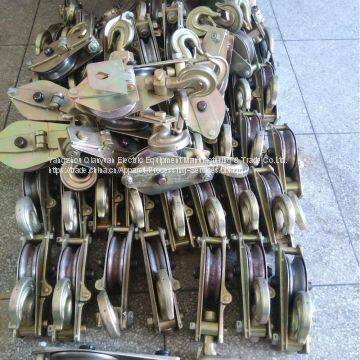

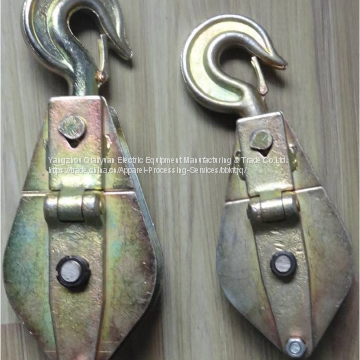

Aluminum Alloy Wire Rope Lifting Pulley
Application
Aluminum Alloy Wire Rope Lifting Pulley is used for lifting.It can be used in single, it also can be used as a block.It is used to set up pole, tower, line string, lifting things or lifting construction.
Characteristic: light weight, easy operation, no damage to the steel wire rope.
Characteristics
1.Material: Aluminum alloy

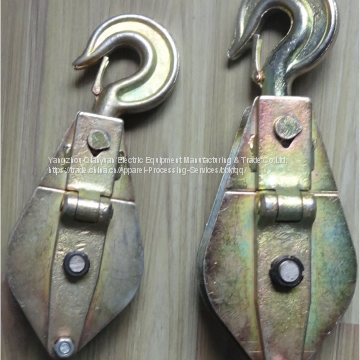

2.The type of Single wheel is open hook type.
3.The type of double wheel or third wheel is closed loop type.
3.It is made of aluminum alloy
4.Light weight
| Product No. | Model | Sheave | Rated Load (KN) | Suitable wire rope (mm) | Weight | |
| Alu/Nylon | Steel | |||||
| 10154 | QZH-1*1 | 1 | 10 | 7.7 | 1.9 | 3.1 |
| 10155 | QZH-1*2 | 2 | 5.7 | 1.9 | 3.3 | |
| 10156 | QZH-1*3 | 3 | 5.7 | 2.1 | 4.3 | |
| 10157 | QZH-2*1 | 1 | 20 | 11.0 | 3.0 | 4.7 |
| 10158 | QZH-2*2 | 2 | 7.7 | 3.1 | 5.4 | |
| 10159 | QZH-2*3 | 3 | 7.7 | 3.8 | 7.3 | |
| 10160 | QZH-3*1 | 1 | 30 | 12.5 | 4.2 | 6.6 |
| 10161 | QZH-3*2 | 2 | 7.7 | 4.5 | 7.9 | |
| 10162 | QZH-3*3 | 3 | 7.7 | 5.5 | 10.5 | |
| 10163 | QZH-5*1 | 1 | 50 | 15.5 | 5.7 | 10.0 |
| 10164 | QZH-5*2 | 2 | 12.5 | 6.2 | 10.7 | |
| 10165 | QZH-5*3 | 3 | 11.0 | 7.3 | 13.8 | |
| 10166 | QZH-8*1 | 1 | 80 | 18.5 | 8.6 | 14.4 |
| 10167 | QZH-8*2 | 2 | 15.5 | 8.8 | 20.1 | |
| 10168 | QZH-8*3 | 3 | 15.5 | 9.6 | 20.8 | |
| 10169 | QZH-10*1 | 1 | 100 | 20.0 | 11.6 | 21.0 |
| 10170 | QZH-10*2 | 2 | 15.5 | 11.9 | 24.2 | |
| 10171 | QZH-10*3 | 3 | 15.5 | 13.3 | 24.8 | |
| 10172 | QZH-15*1 | 1 | 150 | 20.0 | 22.1 | 42.2 |
| 10173 | QZH-15*2 | 2 | 15.5 | 23.6 | 46.3 | |
| 10174 | QZH-15*3 | 3 | 15.5 | 24.5 | 48.3 | |
