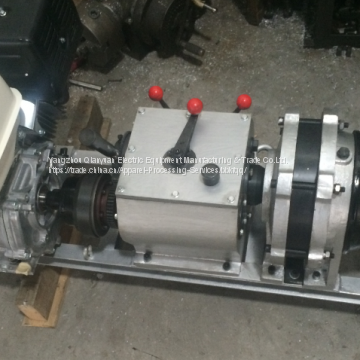

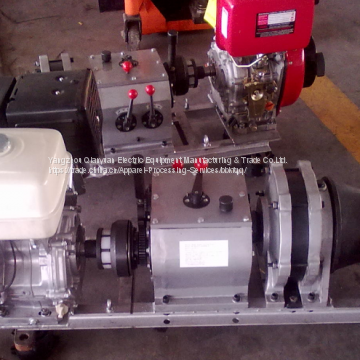

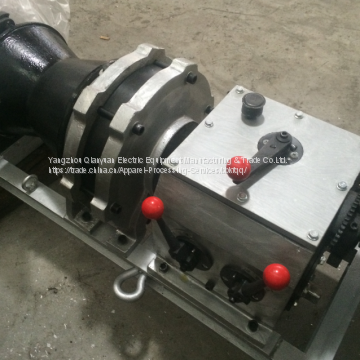

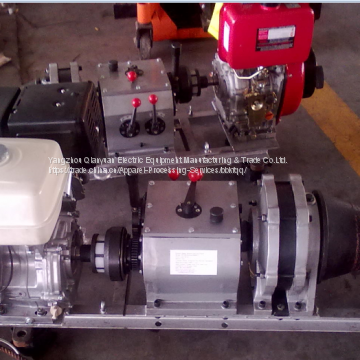

Engine Powered Diesel winch
Application:
Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.
5 Ton High Speed Winch,Petrol Powered Winch,Gasoline Winch is used to erecting,pulling and lifting operation in electric power line construction.
1)Characteristics: Fast speed range, multi-gears, wide application, compact, light, small volume, safe, reliable, high efficiency, etc.
2)Composition: Petrol or Diesel Engine, Clutch, Transform Gear Box, Brake, Planetary Gear Reducer Drum(groove bottom dia.160mm), equipped with Bottom Frame with Anchoring Eyes.
| Product No. | Model | Rated Load (KN) | Gear | Pulling Force (KN) | Pulling Speed (m/min) | Power (KW) | Dimensions (mm) | Total Weight (KG) |
| 10048 | FM-5P (Petrol) | 50 | Slow | 9.8(1T) | 24 | 6.7 | 1100*525*600 | 140 |
| Middle | 14.7(1.5T) | 13 | ||||||
| Middle | 24.5(2.5T) | 8 | ||||||
| Fast | 49(5T) | 4 | ||||||
| 10049 | FM-5D (Diesel) | 50 | Slow | 9.8(1T) | 24 | 4.8 | 1100*565*600 | 160 |
| Middle | 14.7(1.5T) | 13 | ||||||
| Middle | 24.5(2.5T) | 8 | ||||||
| Fast | 49(5T) | 4 | ||||||
| 10050 | FM-8P (Petrol) | 80 | Slow | 9.8(1T) | 28 | 11.76 | 1250*525*615 | 165 |
| Middle | 27.44(3T) | 16 | ||||||
| Middle | 39.2(4T) | 8 | ||||||
| Fast | 78.4(8T) | 4 | ||||||
| 10051 | FM-8D (Diesel) | 80 | Slow | 9.8(1T) | 28 | 8.5 | 1250*565*615 | 190 |
| Middle | 27.44(3T) | 16 | ||||||
| Middle | 39.2(4T) | 8 | ||||||
| Fast | 78.4(8T) | 4 |
