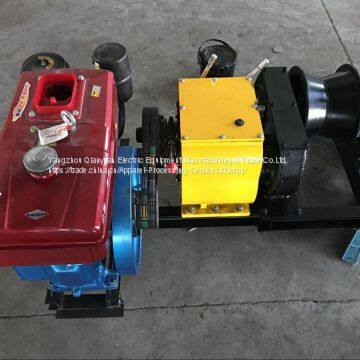

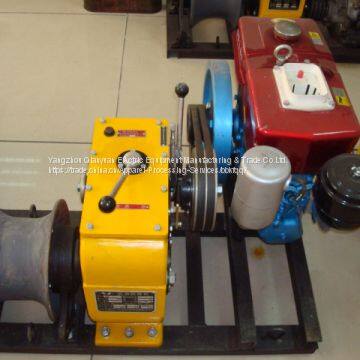

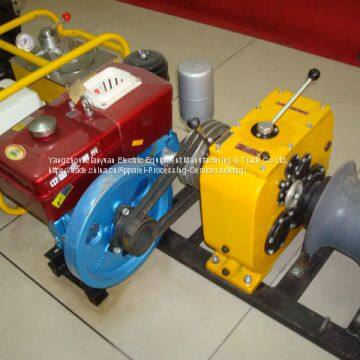

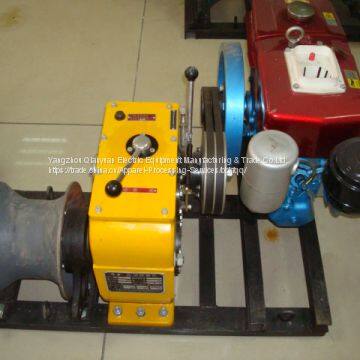

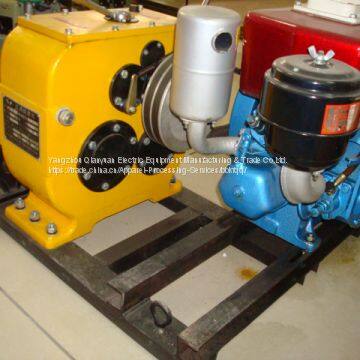

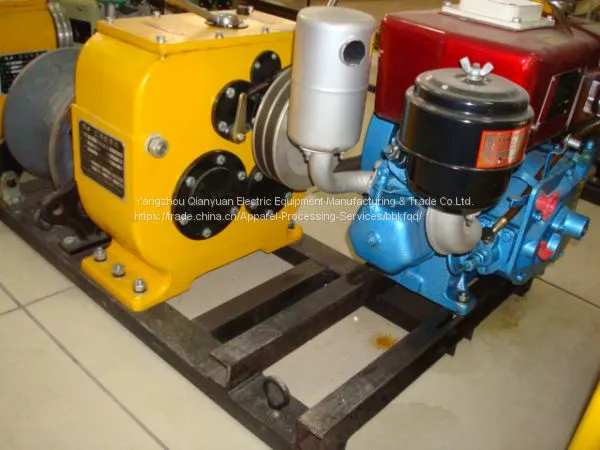

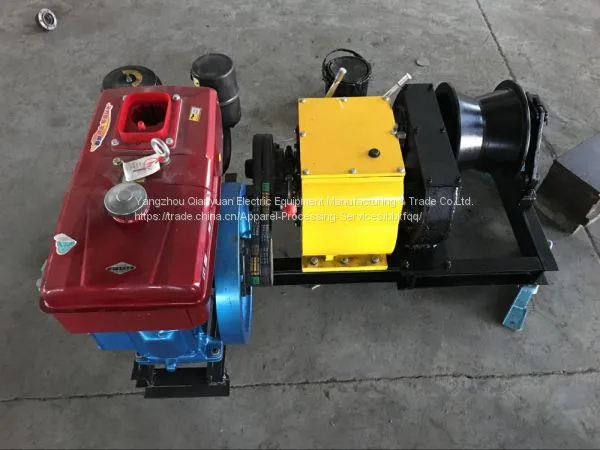

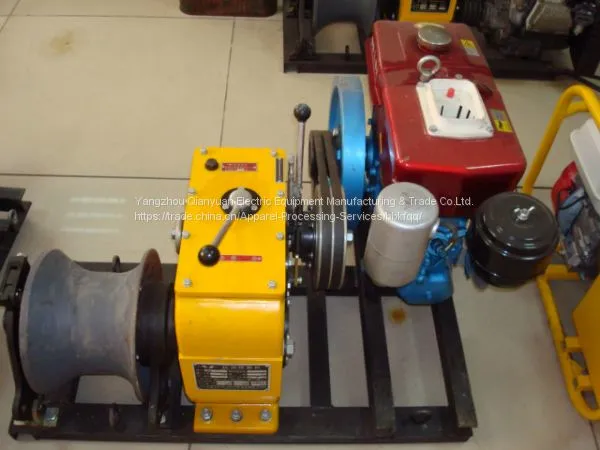

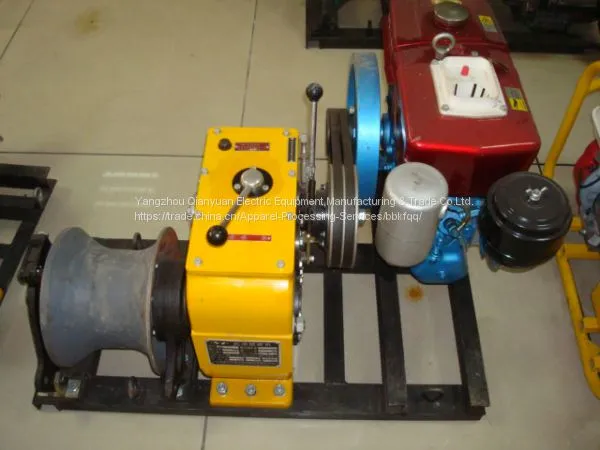

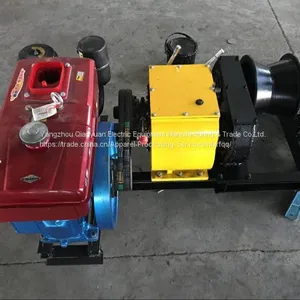

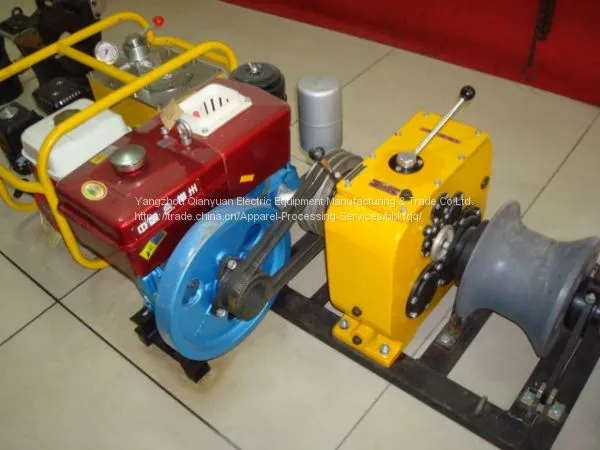

5 ton capacity diesel power source winch in factory
Features:
Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
Application:
Supply 8 Ton Diesel Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Technical Data:
| Product No. | Model | Rated Load (KN) | Orientation | Gear | Pulling Force (KN) | Pulling Speed (m/min) | Total Weight (KG) |
| 10052 | GM-1P (Petrol) | 10 | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 50 |
| Ⅱ(Fast) | 6(0.6T) | 18 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
| Ⅱ(Fast) | 18 | ||||||
| 10053 | GM-1E (Electric) | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 55 | |
| Ⅱ(Fast) | 6(0.6T) | 18 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
| Ⅱ(Fast) | 18 | ||||||
| 10054 | GM-3P (Petrol) | 30 | Positive | Ⅰ(Slow) | 30(3T) | 4 | 85 |
| Ⅱ(Fast) | 18(1.8T) | 7 | |||||
| Reverse | Reverse | No Lifting | 3.5 | ||||
| 10055 | GM-3D (Diesel) | Positive | Ⅰ(Slow) | 30(3T) | 5 | 100 | |
| Ⅱ(Fast) | 18(1.8T) | 9 | |||||
| Reverse | Reverse | No Lifting | 4.5 | ||||
| 10056 | GM-3E (Electric) | Positive | Ⅰ(Slow) | 30(3T) | 4 | 90 | |
| Ⅱ(Fast) | 18(1.8T) | 7 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 4 | ||||
| Ⅱ(Fast) | 7 | ||||||
| 10057 | GM-5P (Petrol) | 50 | Positive | Ⅰ(Slow) | 50(5T) | 4.5 | 150 |
| Ⅱ(Fast) | 23(2.3T) | 10 | |||||
| Reverse | Reverse | No Lifting | 4.5 | ||||
| 10058 | GM-5D (Diesel) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 170 | |
| Ⅱ(Fast) | 23(2.3T) | 14 | |||||
| Reverse | Reverse | No Lifting | 7 | ||||
| 10059 | GM-5E (Electric) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 155 | |
| Ⅱ(Fast) | 23(2.3T) | 14 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 5.5 | ||||
| Ⅱ(Fast) | 14 |
