Help CenterStringing Equipment Gasoline Powered Winch
Related Products

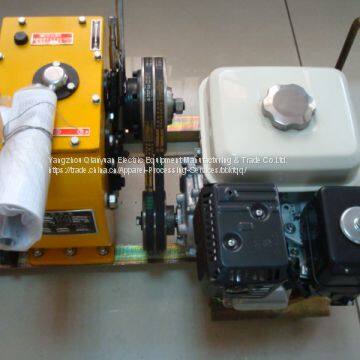

Stringing Equipment gasoline powered winch
5T Gasoline powered winch cable puller Cable Pulling Winches
Application:
there are two kinds of brake installment in Stringing Equipment gasoline powered winch-the auto clamp-brake and the clutch-drived chain brake.Both of them can play the brake function in clockwise and reverse-clockwise directions.
Hand installment:if the prime motor doesn`t work well during the working process, you can use the hand installment to help you complete the job.
Lubrication:using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.
Features:
1.Speedy and Efficient;
2.Safe and Reliable;
3.Compact structure;
4.Small volume;
5.Light in weight;
Technical Data:
| Product No. | Model | Rated Load (KN) | Orientation | Gear | Pulling Force (KN) | Pulling Speed (m/min) | Total Weight (KG) |
| 10052 | GM-1P (Petrol) | 10 | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 50 |
| Ⅱ(Fast) | 6(0.6T) | 18 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
| Ⅱ(Fast) | 18 | ||||||
| 10053 | GM-1E (Electric) | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 55 | |
| Ⅱ(Fast) | 6(0.6T) | 18 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
| Ⅱ(Fast) | 18 | ||||||
| 10054 | GM-3P (Petrol) | 30 | Positive | Ⅰ(Slow) | 30(3T) | 4 | 85 |
| Ⅱ(Fast) | 18(1.8T) | 7 | |||||
| Reverse | Reverse | No Lifting | 3.5 | ||||
| 10055 | GM-3D (Diesel) | Positive | Ⅰ(Slow) | 30(3T) | 5 | 100 | |
| Ⅱ(Fast) | 18(1.8T) | 9 | |||||
| Reverse | Reverse | No Lifting | 4.5 | ||||
| 10056 | GM-3E (Electric) | Positive | Ⅰ(Slow) | 30(3T) | 4 | 90 | |
| Ⅱ(Fast) | 18(1.8T) | 7 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 4 | ||||
| Ⅱ(Fast) | 7 | ||||||
| 10057 | GM-5P (Petrol) | 50 | Positive | Ⅰ(Slow) | 50(5T) | 4.5 | 150 |
| Ⅱ(Fast) | 23(2.3T) | 10 | |||||
| Reverse | Reverse | No Lifting | 4.5 | ||||
| 10058 | GM-5D (Diesel) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 170 | |
| Ⅱ(Fast) | 23(2.3T) | 14 | |||||
| Reverse | Reverse | No Lifting | 7 | ||||
| 10059 | GM-5E (Electric) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 155 | |
| Ⅱ(Fast) | 23(2.3T) | 14 | |||||
| Reverse | Ⅰ(Slow) | No Lifting | 5.5 | ||||
| Ⅱ(Fast) | 14 |
