Hydraulic Compression Crimping Head 200 Tons
YJQ-200
L-26,30,32,34,36,38,40,45,50,52,55,60,65,70,75,80
G-12,14,16,18,20,22,24,26,28,30,32
Cupreous terminators: 16~800mm^2

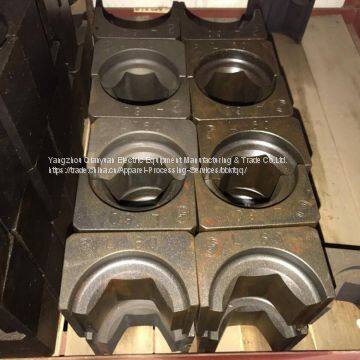

Compression Dies
Order number
Model of matched compressor
Serial specification of compression die sets
Notes: The specification of die sets is steel(G) or aluminum(L) the outside diameter of compression joint tube. The specification of the dies can be customized according to the size of the steel tube or aluminum tube for the conductor.

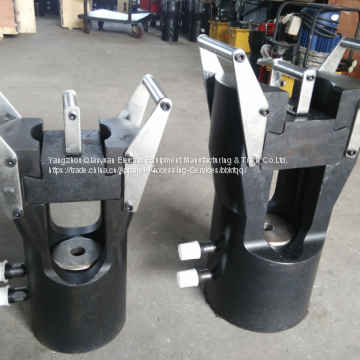

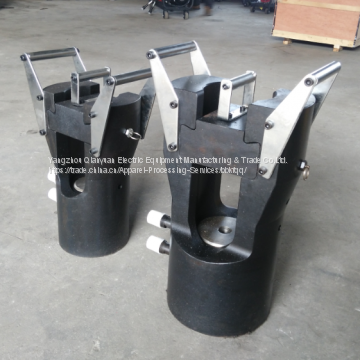

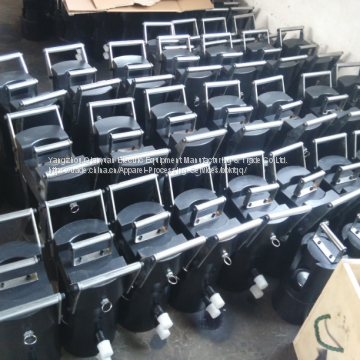

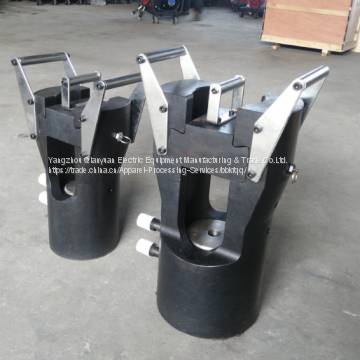

This kind of Hydraulic Crimping Head's working must be coupled with manual, electric or gas engine hydraulic pump to press to connect the connecting tube end of copper or Aluminum conductor, cable. Easy to work and dismantle from pump by discrete design.
Technical Details:
| Product No. | Model | Rated Load | Piston Stroke (mm) | Rated Pressure (Mpa) | Oil Hose (m) |
| 10546 | YJQ-15 | 150 | 19(conductor) | 63 |
1.5 or 3
|
| 16(cable) | |||||
| 10547 | YJQ-25 | 250 | 22 | ||
| 10548 | YJQ-40 | 400 | 26 | ||
| 10549 | YJQ-60 | 600 | 18 | ||
| 10550 | YJQ-100 | 1000 | 20 | ||
| 10551 | YJQ-200 | 2000 | 25 | ||
|
| YJQ-300 | 3000 | 28 |
