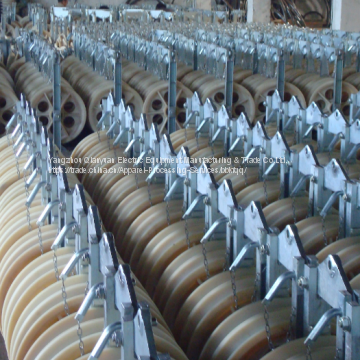

String Pulley aluminum pulley block
Stringing Block 508mm 660mm 830mm 916mm
Large Diameter Stringing Pulley Block Nylon Pulley Block(508mm/660mm/830mm/916mm)
Large Diameter Stringing Pulley Block is widely used for stringing wire in overhead electric power transmission line construction.

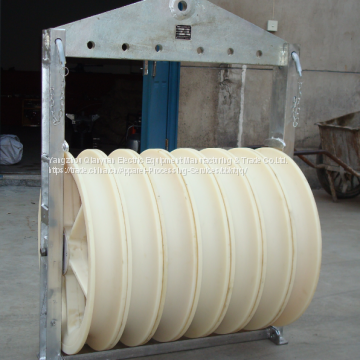

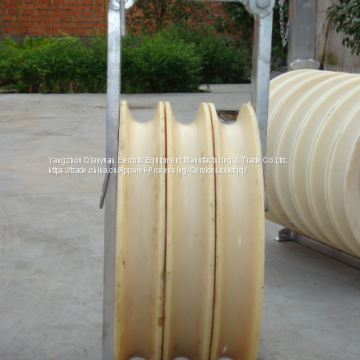

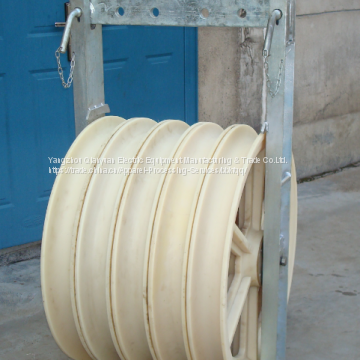

Large Diameter Bundled Conductor Galvanized Pulley Block Stringing Block;Power Transmission Pulley Block;
660 mm MC Nylon large diameter bundled conductor galvanized pulley block stringing block is used for stringing wire in electric power transmission line construction.
Features: 1.Nylon sheave ; 2.Sheave number:1-7 ; 3.Used to pay off wire or cable.
Technical Parameters:
| Product NO. | Model | Sheave | Rated Load (KN) | Out-Dia*In-Dia*Width (mm) | ACSR (mm2) | Weight (kg) | Remark |
| 10065 | XH1-508*75A | 1 | 20 | 508*408*75 | ≤400 | 25 | Aluminum |
| 10066 | XH1-508*75N | 1 | 20 | 508*408*75 | ≤400 | 16.5 | MC Nylon |
| 10067 | XH3-508*75A | 3 | 40 | 508*408*75 | ≤400 | 58 | Aluminum |
| 10068 | XH3-508*75N | 3 | 40 | 508*408*75 | ≤400 | 38.5 | MC Nylon |
| 10069 | XH5-508*75A | 5 | 60 | 508*408*75 | ≤400 | 88 | Aluminum |
| 10070 | XH5-508*75N | 5 | 60 | 508*408*75 | ≤400 | 55.5 | MC Nylon |
| 10071 | XH7-508*75A | 7 | 100 | 508*408*75 | ≤400 | 150 | Aluminum |
| 10072 | XH7-508*75N | 7 | 100 | 508*408*75 | ≤400 | 105 | MC Nylon |
| 10073 | XH1-660*100A | 1 | 20 | 660*560*100 | ≤500 | 45 | Aluminum |
| 10074 | XH1-660*100N | 1 | 20 | 660*560*100 | ≤500 | 34.5 | MC Nylon |
| 10075 | XH3-660*100A | 3 | 40 | 660*560*100 | ≤500 | 113 | Aluminum |
| 10076 | XH3-660*100N | 3 | 40 | 660*560*100 | ≤500 | 78 | MC Nylon |
| 10077 | XH5-660*100A | 5 | 60 | 660*560*100 | ≤500 | 152 | Aluminum |
| 10078 | XH5-660*100N | 5 | 60 | 660*560*100 | ≤500 | 120 | MC Nylon |
| 10079 | XH7-660*100A | 7 | 100 | 660*560*100 | ≤500 | 226 | Aluminum |
| 10080 | XH7-660*100N | 7 | 100 | 660*560*100 | ≤500 | 186 | MC Nylon |
| 10081 | XH1-830*110N | 1 | 30 | 830*710*110 | ≤630 | 30 | MC Nylon |
| 10082 | XH3-830*110N | 3 | 60 | 830*710*110 | ≤630 | 118 | |
| 10083 | XH5-830*110N | 5 | 120 | 830*710*110 | ≤630 | 180 | |
| 10084 | XH7-830*110N | 7 | 130 | 830*710*110 | ≤630 | 290 | |
| 10085 | XH1-916*110N | 1 | 50 | 916*800*110 | ≤800 | 45 | MC Nylon |
| 10086 | XH3-916*110N | 3 | 110 | 916*800*110 | ≤800 | 140 | |
| 10087 | XH5-916*110N | 5 | 150 | 916*800*110 | ≤800 | 235 | |
| 10088 | XH7-916*110N | 7 | 180 | 916*800*110 | ≤800 | 335 |
