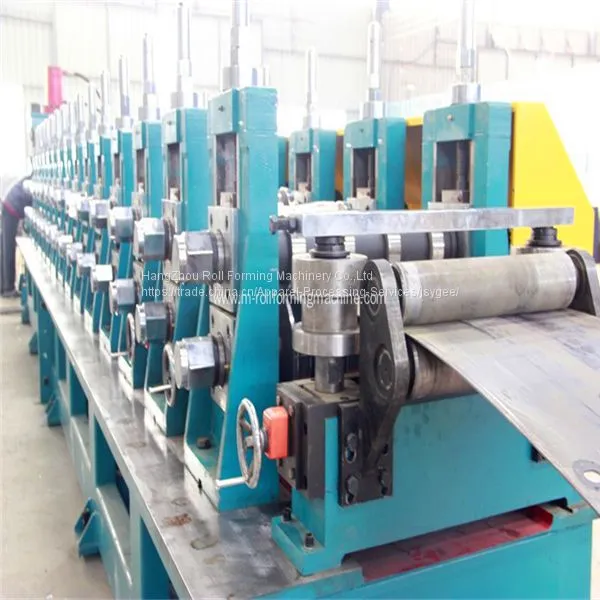

The Highway guardrail forming production line includes in conic decoiler unit, feeding guiding platform, leveling system, shearing device, punching system, roll forming system, cutting equipment, hydraulic station, electric controlling system and two supporters for product.
Applicable material for Highway guardrail forming production line
Thickness is 3mm±0.2mm , width is 482+3mm, yield strength is 235Mpa, side bend less than 10mm( base on 5m), the sheet surface is not rusty, smooth.
Main parameters for Highway guardrail forming production line
1.Forming speed: Max. 20m/min(without punching and cutting)
2.Decoiler Capacity: 10 tons
3.Coil Inner diameter: ￠500mm.￠600mm
1.Coil out diameter: ￠1700mm
2.Shearing motor: 2 X 1.1 KW
3.Pump Motor: 18.5 KW
4.Main Motor: 45KW(6phases)
8.Total Power: about 65 KW.
9.Material of forming rollers: D2 with quenched treatment
10.Material of shaft: High quality 45# steel with heat treatment.
11.Material of cutter, die Cr12 mould steel with quenched treatment
12.Out size dimension: (L X W X H)27 X 6 X 1.8 M.
13.Total weight: about 50 tons.
Packing and shipping about the for the for Highway guardrail forming production line
Our company show
