Highway Guardrail Roller Forming Machine

Highway guardrail roller forming machine Description:

Highway guardrail roller forming machine(Highway Guardrail Forming Machine) can produce 2 waves guardrail and 3 waves in one machine as customer required. The whole line mainly consists of 5 ton decoiler and its base, leveling device, guiding device, servo feeding device, punching device, guardrail roll former, moving shear device, support table, hydraulic and electric control system. It cans continuous form the steel sheet according to customer`s requirement, automatically cut to length, PLC controlled, alternating Current Frequency Conversion.

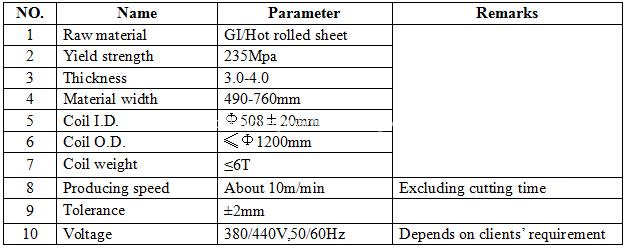

Technical Parameters for Highway guardrail roller forming machine:

Working Process for Highway guardrail roller forming machine:

Loading Material → Decoiling → Leveling → Feeding Material → Punching Hole → Roll Forming → Cutting to Length → Plates to Support table

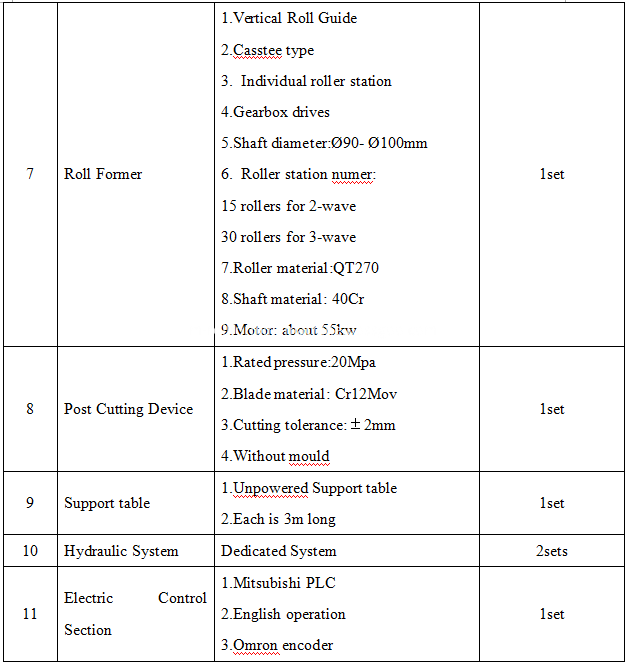

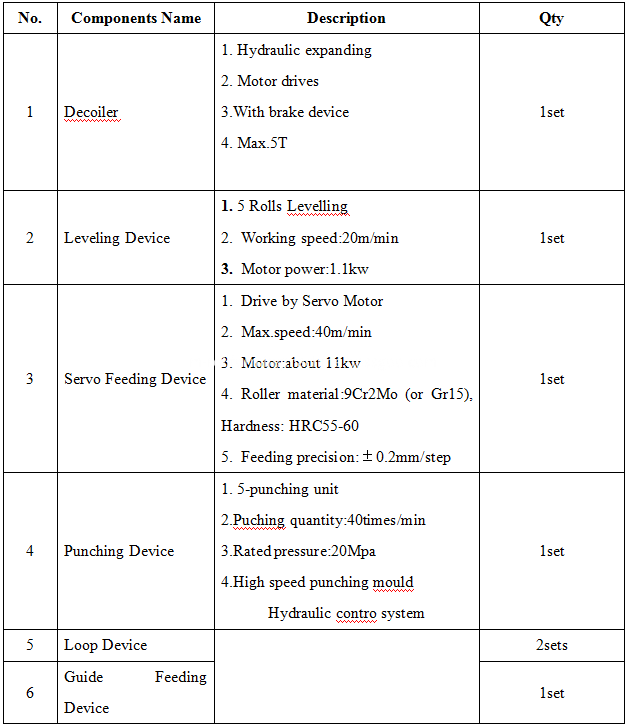

Components Parts of the Highway guardrail roller forming machine:

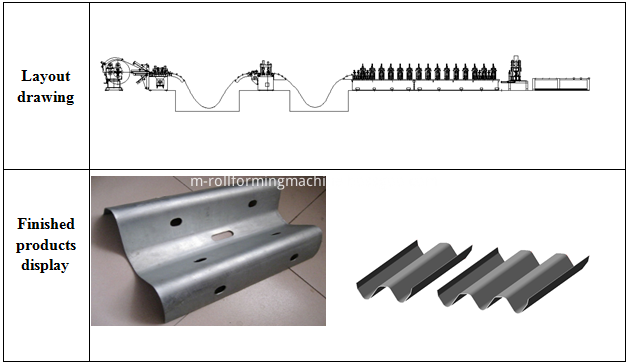

Layout drawing and finished products about the Highway guardrail roller forming machine

Packing and shipping about the Highway guardrail roller forming machine

Our company show

Finished products about the Highway guardrail roller forming machine,pls check the download about the PDF below the main picture.
