Door Frame Bending Forming Machine Description:

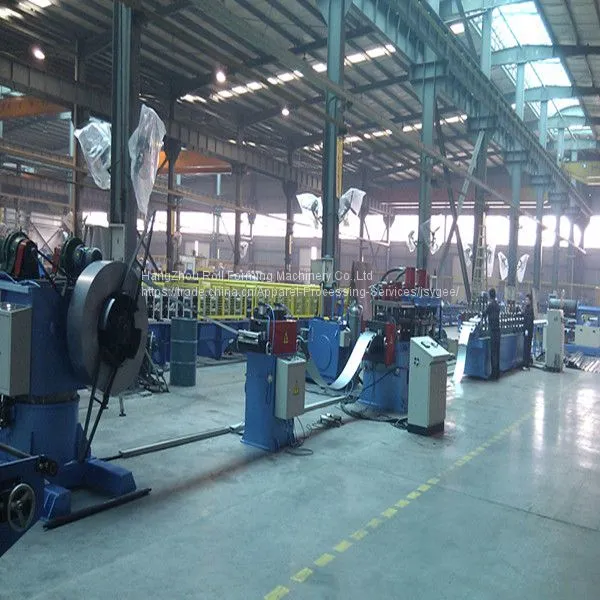

With our experienced technology and professional team,our company (maxmach group) have many years experiences on design and manufacrure the Door Frame Bending Forming Machine, the roll forming machine is mainly composed by decoilder, punching, roll former and cutter. It is high efficient and low cost, are very popularity in Africa.The finished products about the door frame and window frame are widely used in many Modern house decoration.The window frame or the door frame is very safe and beautiful.
Technical Parameters for Door Frame Bending Forming Machine:
1 Suitable material Type GI plate, cold rolled sheet:
Thickness (mm) 1.0
Yield Strength (Mpa) ≤235Mpa
Wt of the Coil (t) 3000KG
OD Φ1300mm
ID Φ508 mm
2 Material of rollers Cr12
3 Material of Shaft 40Cr
3 Forming Speed (m/min) About15M/min
4 Power Source AC380V ,50Hz, 3Phase
5 Motor power(kw) About15KW
6 Dimension (L×W×H, m) See the layout
Working Process for Door Frame Bending Forming Machine
Loading→ Uncoiling→Guiding →Leveling→ Length fixing→ Cutting→ Panel collecting→ Getting off line
Components Parts of the Door Frame Bending Forming Machine
1.Decoiler system 3T Manual decoiler 1set
2.Main forming system Leveling device 1set
Roll forming system 1set
Cutting device 1set
3. Output system Product supporter 1sets
4. Hydraulic system 1set
5. Electric control system 1set
Shippng and packing about the Door Frame Bending Forming Machine
Finished products show about the window and door roll forming machine,pls check the download about the PDF below the main picture.
