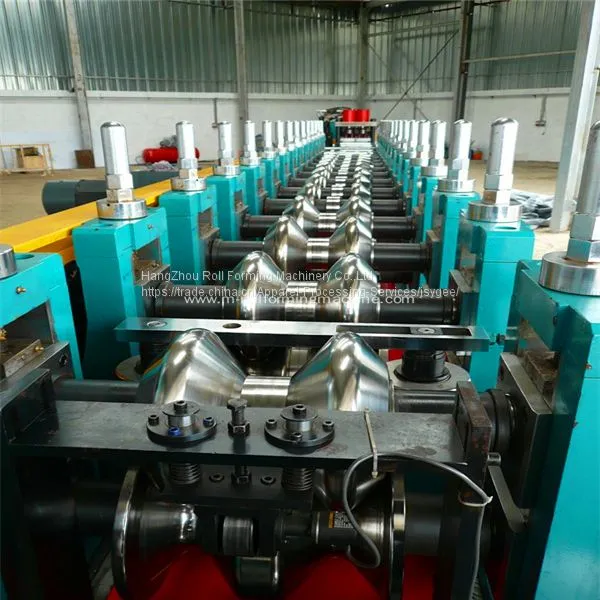

Description of Two wave highway guardrail production making forming line
Guardrail Drawing: Design according to buyer`s drawing
Raw Material: Galvanized Sheet, Hot Rolled Plate
Raw Material Yield Strength: 235Mpa
Raw Material Thickness: 2.5 - 3.2mm
Raw Material Width: 500mm
Coil ID: Ф508±20mm
Coil OD: ≤Ф1300mm
Coil Weight: ≤5T
Two wave highway guardrail production making forming line Main Parameter
Production Line Speed: 6 - 10meters/minute
Product Length Tolerance: ±5mm
Power Source: 380V, 50Hz, 3Phase (according to buyer request)
Working Flow Two wave highway guardrail production making forming line
Loading Material → Decoiling → Leveling → Feeding Material → Punching Hole → Roll Forming → Cutting to Length → Plates to Support table
Components list for the two wave highway guardrail production making forming line
No. Components Name Description Unit Quality Mark
1 Decoiler Hydraulic Decoiler Set 1
2 Leveling Device 7 Rolls Levelling Set 1
3 Servo Feeding Device Drive by Servo Motor Set 1
4 Punching Device Punching Hole Set 1
5 Looping Pit Device piece 2
6 Guide Feeding Device Vertical Roll Guide piece 1
7 Roll Former Individual Roller Station piece 1
8 Cutting Device Moving Cut Set 1 With one Mould
9 Support table Unpowered Support table piece 1
10 Hydraulic System Dedicated System piece 2
11 Electric Control Section Control Production Line piece 1
Packing and shipping about the Two wave highway guardrail production making forming line
More about the MAXMACH
