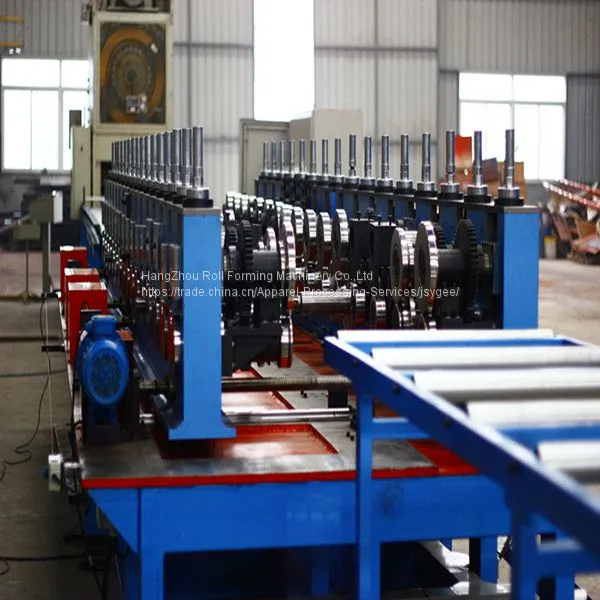

Cable Tray Roll Forming Machinery Machine Description:
This Cable Tray Roll Forming Machinery Machine automatically adjusts to produce the Cable Tray according to client requirement. The Cable Tray manufacturing roll forming Machinery is controlled by PLC, fully automatic working. It can automatically record the production quantity, automatically measure the length. Cable Tray manufacturing roll forming Machinery has Trouble Display and Emergency Stop function. All the machine working actions can be controlled by control panel. The Width range is from 100mm to 600mm.
Technical Parameters for Cable Tray Roll Forming Machinery Machine:
1 Raw material GI/Cold rolled sheet
2 Yield strength 235Mpa
3 Thickness 1-2mm
4 Coil I.D. Ф508±20mm
5 Coil O.D. ≤Ф1100mm
6 Coil weight ≤5T
7 Producing speed About 6m/min Excluding cutting time
8 Tolerance ±2mm
9 Voltage 380/440V,50/60Hz Depends on clients` requirement
Working Process for Cable Tray Roll Forming Machinery Machine:
Decoiling – Leveling – Feeding – Punching – Cutting – Roll Forming – Plate to Support Table
Components Parts of the Cable Tray Roll Forming Machinery Machine:
1 Decoiler
2 Leveling Device
3 Servo Feeding Device
4 Punching device.
5 Cutter
6 Roll Former
7 Run-out table
8 Hydraulic System
9 Electric Control Section
Packing and shipping about the Cable Tray Roll Forming Machinery Machine
