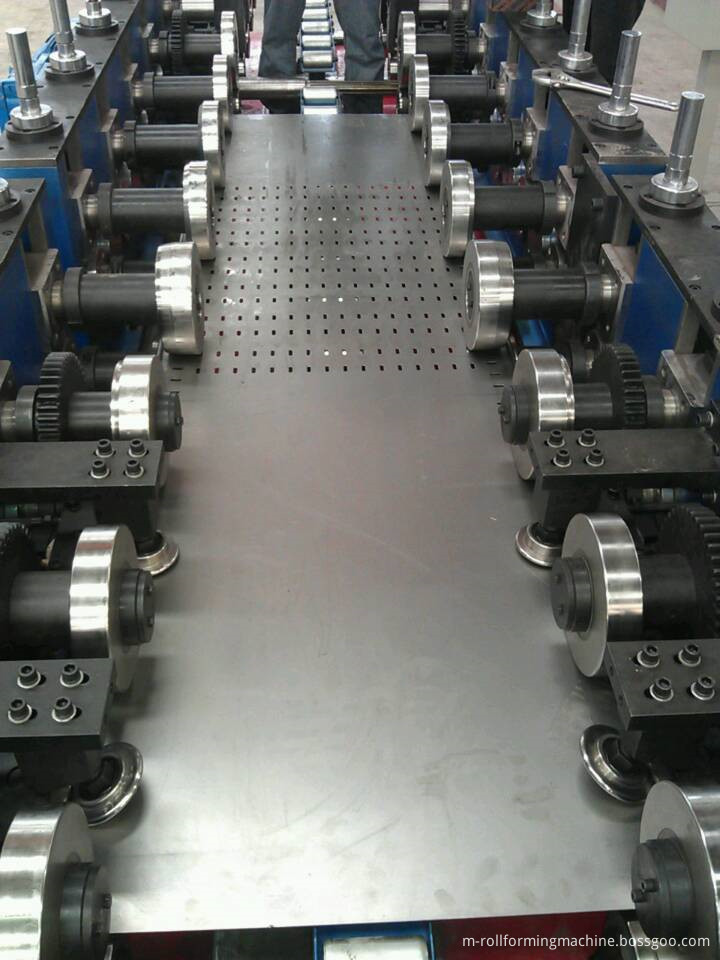

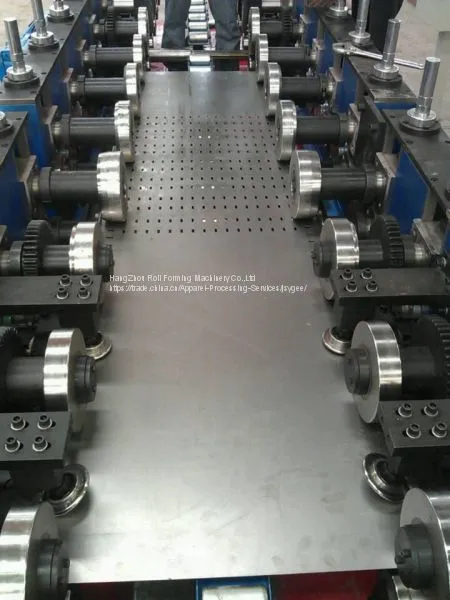

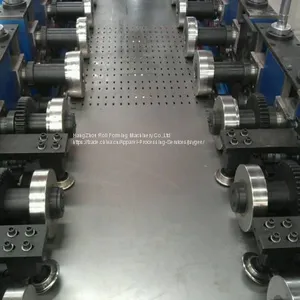

Coil Rolling Machine Specification for Cable Tray

Coil rolling machine specification for cable tray Description:

This Coil rolling machine specification for cable tray automatically adjusts to produce the Cable Tray according to client requirement.  Steel tray sheet forming machine has Trouble Display and Emergency Stop function. All the Coil rolling machine specification for cable tray  working actions can be controlled by control panel. The Width range is from 100mm to 600mm.

Coil rolling machine specification for cable tray:

1 Raw material GI/Cold rolled sheet
2 Yield strength 235Mpa
3 Thickness 1-2mm
4 Coil I.D. Ф508±20mm
5 Coil O.D. ≤Ф1100mm
6 Coil weight ≤5T
7 Producing speed About 6m/min Excluding cutting time
8 Tolerance ±2mm
9 Voltage 380/440V,50/60Hz Depends on clients` requirement

Working Process for Coil rolling machine    for cable tray:

Decoiling – Leveling – Feeding – Punching – Cutting – Roll Forming – Plate to Support Table

Components Parts of the Coil rolling machine specification for cable tray:

1 Decoiler
2 Leveling Device
3 Servo Feeding Device
4 Punching device.

5 Cutter

6 Roll Former
7 Run-out table
8 Hydraulic System
9 Electric Control Section
