1.Main parameter of the 3 waves highway guardrail roll forming machine:

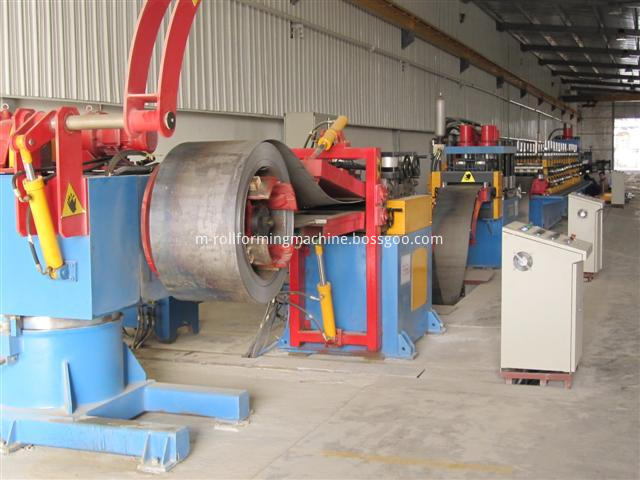

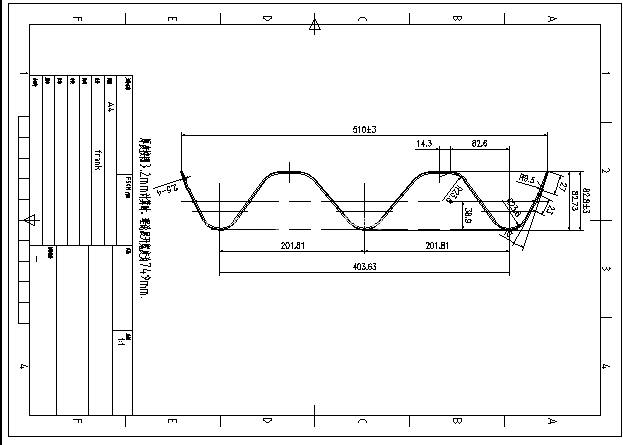

Profile Drawing:(should be confirmed by both sides before signed a contract)
Product length: ≤ 4000 mm
Parameters of the raw material:
Material Thickness Width I.D. Max. O.D. Yield strength Max. coil weight
Q345 hot rolled 3~ 4 mm ≈ 510 mm Ф508 mm Ф1200 mm ≤300Mpa 5 T
Quality requirements of the raw material:
Thickness Tolerance Width Tolerance Steel straightness I.D. Tolerance Material standard
± 0.07 mm +0 mm/-0.2 mm 0.2 mm/m ±15 mm GB
2.Main Technical conditions of the3 waves highway guardrail roll forming machine:
Temperature: -10℃~35℃
Voltage: 380V± 10%, 50 HZ, 3 P
Air pressure: 0.6~1.2 Mpa
Total input Air: 300 L/min
Total power: ≈130 KW
Machine group operation direction: From left to right.
(Facing the operational panel)
Production capacity: ~ 10 m/min
Dimension (L*W*H): L≈ 30 m, W≈ 5 m, H≈ 2 m

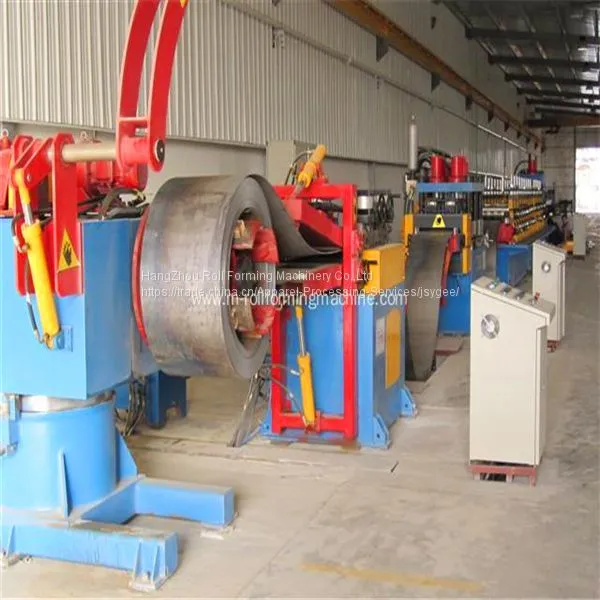

3.Product process flow:
Decoiling → Levelling → Loop → Servo Feeding → Punching Machine (Including Pre-cut Device) → Transport Conveyor → Roll Forming → Stacker
4.3 waves highway guardrail roll forming machine Components List :
1 Decoiler
2 Levelling Device
3 Loop
4 Servo Feeding Machine
5 Punching Machine
(Including Pre-cut device)
6 Transport conveyor
7 Roll Forming Machine
8 Roll Forming Mould
9 Stacker
10 Hydraulic System
11 Electric Control System
12 Safety Or Protection System
13 Remote Control System
14 Spare Parts
15 Equipment Specification And Technical Information
