Steel door frame rolling/making machine Description:
This new and innovative Computer-Controlled Steel door frame rolling/making machine is designed to rout lock face holes, viewer holes, and lights in doors made of fiberglass, steel or wood. But what sets the remarkable B apart from other models is its ability to automatically change tooling on the type of cutting required for the kind of door being machined. Notable features of this machine include touch-screen controls, automatic door positioning and width adjustment and a routing cycle that does face boring for locks and cut-outs for door ligths.
The spindle is powered by a 3-phase 11-horsepower variable-speed high-frequency motor.Internal conveyor structure brings out easy operation, moreover it looks quite simple but equips with good reliability. The mechanical slide-rail of moveable parts is imported from Japan, which ensures accurate operation and high precision while regulating equipment.
Rolling device contains solid part and moveable part, adjustable range of moveable part is 140mm, this means width of produced door can be electrically regulated from 410mm to 550mm.
Quantity of Hinges: Faceplate 24-30 pairs(as per clients chosen on shape of door), Backboard 14 pairs.

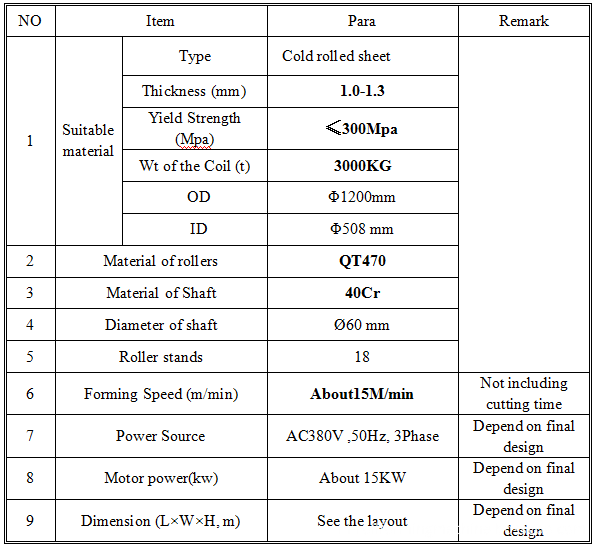

Technical Parameters for Steel door frame rolling/making machine:

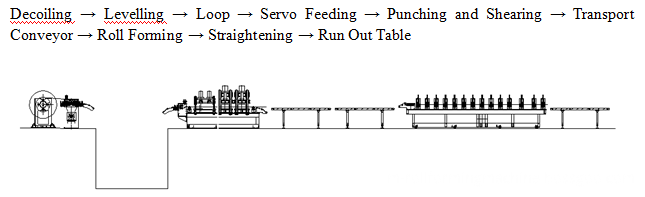

Working Process for Steel door frame rolling/making machine:

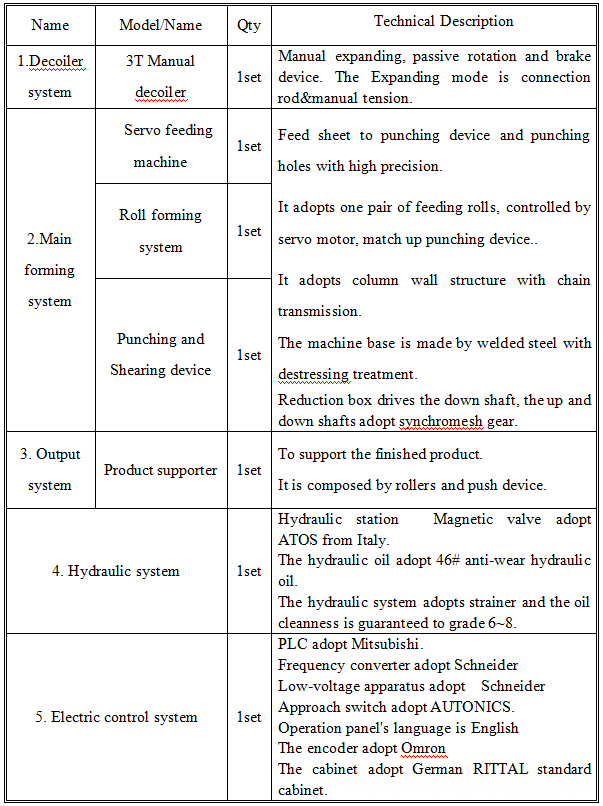

Components Parts of the Steel door frame rolling/making machine:
Packing and shipping about the Steel door frame rolling/making machine
More about the Maxmach
Finished products about the Steel door frame rolling/making machine,pls check the download below the main products description.
