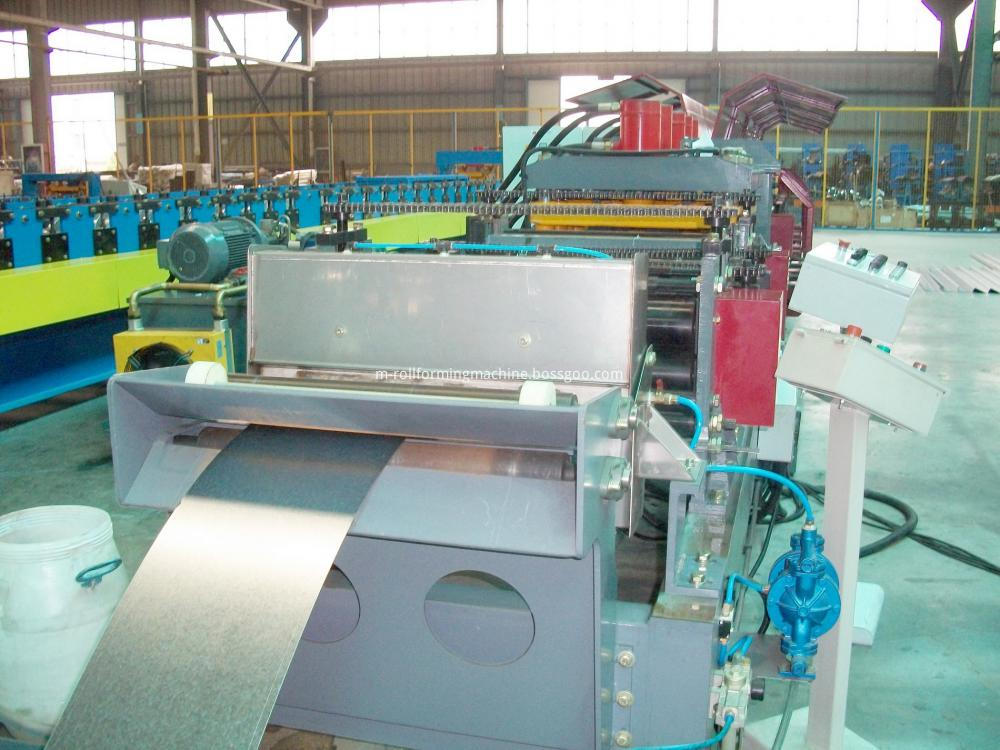

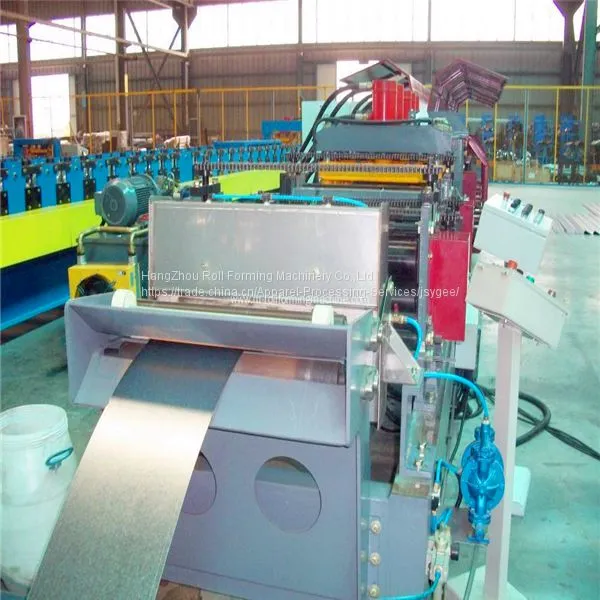

C& Z Purline Roll Forming Machine

Semi-Automatic C& Z purline roll forming machine can produce both C and Z purlin with different specifications in one machine. The change from C and Z will be done by simple manually adjustment. There is also not necessary to change the rollers if producing different size of C or Z purlins. It can automatically cut to length, punch and form, workers just need to input the length, hole distance, quantity, etc into the control system.
The adjustment for producing different C purlin or Z purlin will be complete different from traditional purlin machine(by manual adjust the roll spacers), it just needs to adjust the screw bar and you can get different sizes of C and Z purlin.
Whole machine adopts electrical motor driving with inverter controlling; it will assure high precision of the products.

Main Parameter for C& Z purline roll forming machine

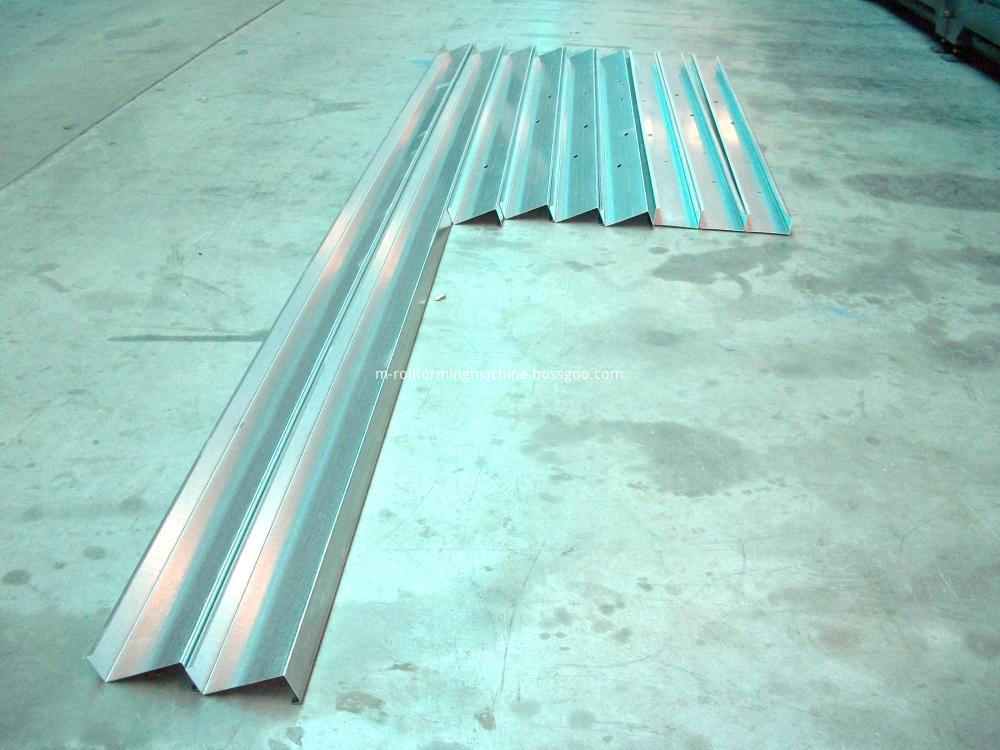

C&Z purlin Drawing:

Coil thickness: 1.5~3.0mm(under coil stress≤350Mpa)
Horizontal hole distance adjusting range: 50-250mm
Panel length: >3m
C&Z Purlin Max. forming speed: 20m/min
Total power: 20KW
Roller stations quantity: 17
Working flow for C& Z purline roll forming machine
Decoil → Panel guiding → Panel leveling → Punch to length → Cut to length → Roll forming → Panel run out table
Machine components for C& Z purline roll forming machine
1)3Tons Hydraulic decoiler
2)Main machine forming system
a)Guiding platform
b)Leveling system
c)Pre-punching system
d)Pre-cutting system
e)Roll forming system
3)Plate support table
There will be two plate support tables; each one is 4m long, total 8m.
4)Hydraulic system
Main machine adopts outside set hydraulic station to supply power for cutting and punching.
Main valve adopts famous Chinese brand.
5)Electrical control system
Adopts PLC control technology which can ensure the automatic producing.
Encoder calculates the number, which has function of calculation and measuring the length.
Adopt Mitsubishi PLC and inverter.
Adopt SEW electrical motors.
6)Inspection
a)Raw material requirement
The sheet thickness allowed tolerance ≤ ±0.2mm, sheet width allowed tolerance ≤2mm, sheet side camber tolerance ≤5mm/5000mm.
The sheet surface is not rusted.
b)Product requirement
The length tolerance ≤ ±4mm while the length is less than 6m, if bigger than 6m, the tolerance with be ±6mm.
perpendicularity within 300mm from two ends is ±3°,others will be ±1.5.
curving or camber tolerance less than 1.55mm/m.

Packing and shipping about the C &Z Purline Roll Forming Machine
