C Z Purlin Roll Forming Machine

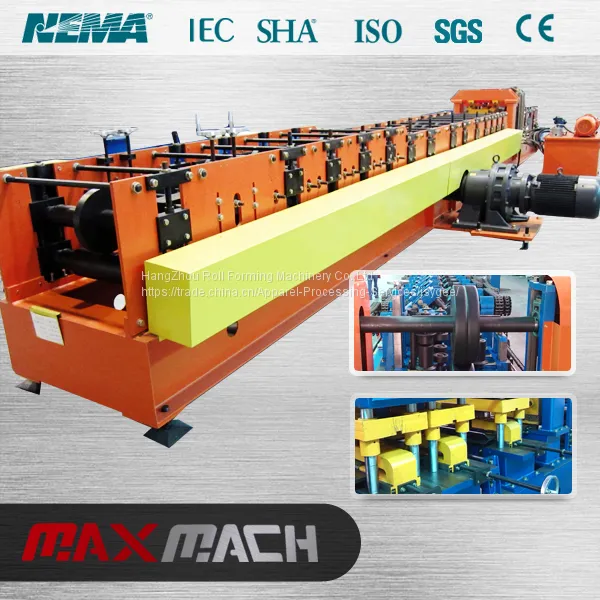

C Z Purlin Roll Forming Machine photo-1
C Z Purlin Roll Forming Machine photo-2
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2007
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

C Z Purlin Roll Forming Machine description

C Z Purlin Roll Forming Machine can produce both C and Z purlin with different specifications in one machine. The change from C and Z will be done by simple manually adjustment. There is also not necessary to change the rollers if producing different size of C or Z purlins. It can automatically cut to length, punch and form, workers just need to input the length, hole distance, quantity, etc into the control system.
The adjustment for producing different C purlin or Z purlin will be complete different from traditional purlin machine(by manual adjust the roll spacers), it just needs to adjust the screw bar and you can get different sizes of C and Z purlin.
Whole machine adopts electrical motor driving with inverter controlling; it will assure high precision of the products.

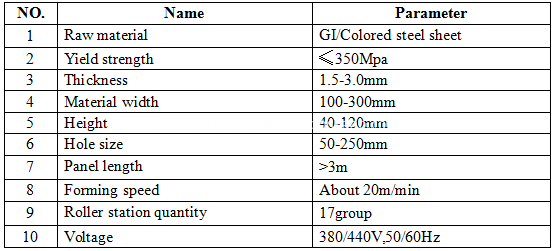

Technical Parameters for C Z Purlin Roll Forming Machine

C Z Purlin Roll Forming Machine

Working Process for C Z Purlin Roll Forming Machine

Decoil → Panel guiding → Panel leveling → Punch to length → Cut to length → Roll forming → Panel run out table

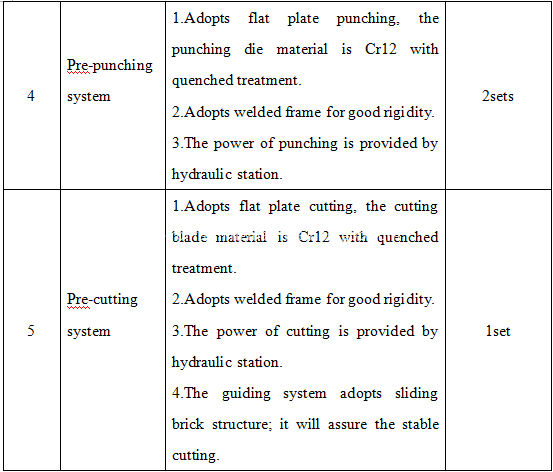

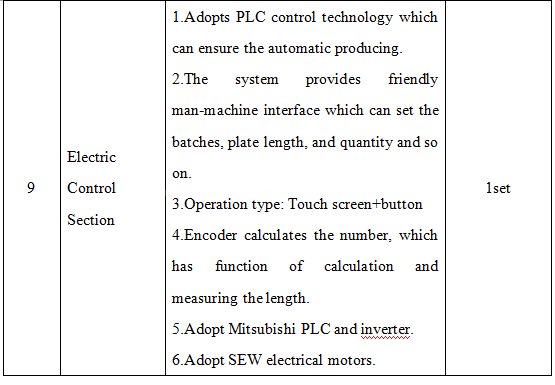

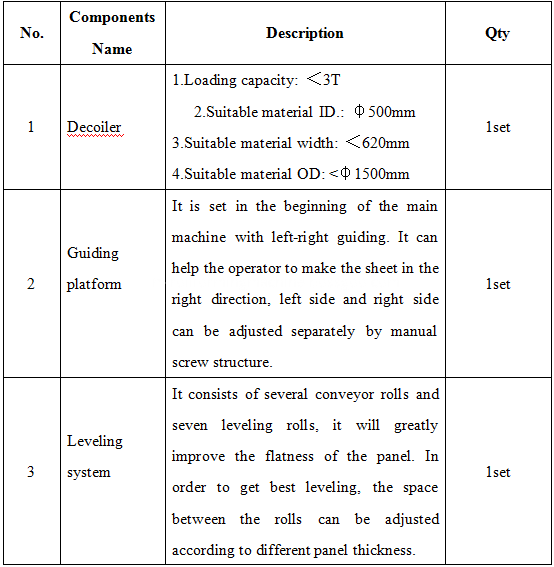

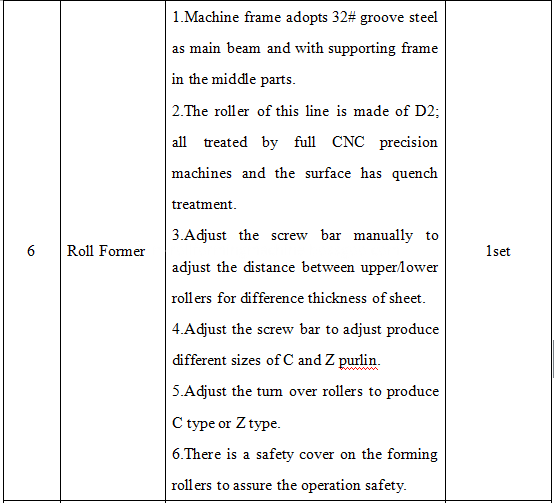

Components Parts of the C Z Purlin Roll Forming Machine

C Z Purlin Roll Forming MachineC Z Purlin Roll Forming MachineC Z Purlin Roll Forming MachineC Purlin Roll Forming Machine 5C Purlin Roll Forming Machine 6123maxmach factorymaxmach

Packing and shipping about the C Z Purlin Roll Forming Machine

packing and shipping


Finished products about the C Z Purlin Roll Forming Machine,pls check the download about the PDF below the main picture.

Product Tags: C Purlin Roll Forming Machine , C Z Purlin Roll Forming Machine , Z Purlin Roll Forming Machine
