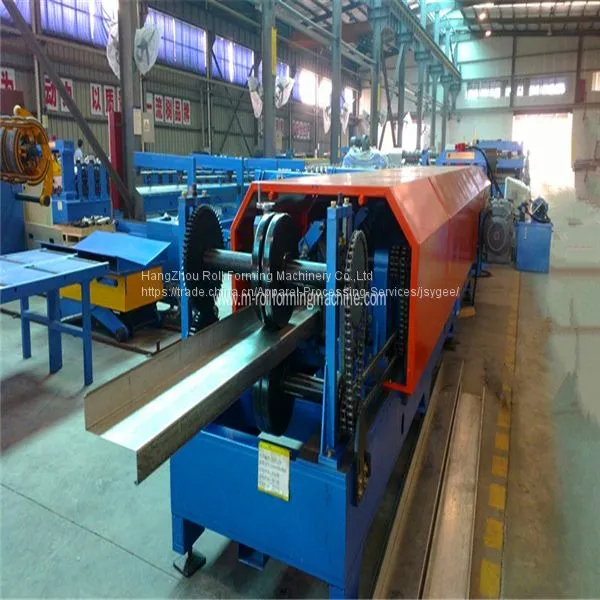

Galvanized steel z purlin profile forming machine

This Galvanized steel z purlin profile forming machine can make the cold or hot steel strip into Z profile purline, through leveling, punching,cutting and cold roll forming. Different specification profiles can be manufactured by changing spacers.

Working flow for Galvanized steel z purlin profile forming machine

Decoiling →Feeding guide→ Leveling→Length set punching →Length set cutting→ Roll forming → Final products outputting.

Components list for Galvanized steel z purlin profile forming machine
1 Decoiler 1set
2 Guiding device 1set
3 Leveling device 1set
4 Punching device 1set, 2groups One group has two holes,one group has one hole, all areφ14X20
5 Cutting device 1set
6 Roll former 1set
7 Final products rack 1set
8 Hydraulic system 1set
9 Electric system 1set

Technical parameters for Galvanized steel z purlin profile forming machine
1. Suitable Material Type: Steel plate
Thickness(mm): 2.0-3.0 2.0-2.5
Yield strength(MPA) : ≤235MPa ≤345MPa
2 Forming speed(m/min) : 10-15 Not including punching and cutting time
3 Forming main motor power(KW) : 22 Depend on actual design
4 Host machine hydraulic station power(KW) : 5.5 Depend on actual design
5 Total power(KW): 27.5 Depend on actual design
6 Electrical source: AC380V,50Hz,3Phase
7 Dimensions(L×W×H, m): 23×2.4×1.5 Depend on actual design
Components for Galvanized steel z purlin profile forming machine
Cantilever decoiler

Feeding guide equipment

Leveling system

Pre-punching system

Pre-cutting system

Roll forming system

Hydraulic system
