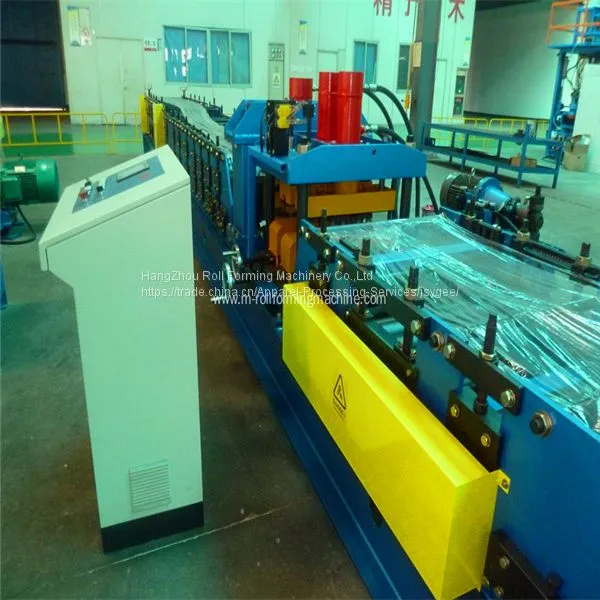

Steel wall panel roll former making machine
- 0 per Month
- Hishine 150W LED Tunnel Light Floodlight Mining Light
- tunnel light with long life span saving cost underground light
- high mast light manufacturer waterproof design
- high brightness tunnel light with waterproof driver
- Aluminum alloy shell of tunnel lamp
- High 200000 lumens TUV CE RoHS approved adjustable module tunnel light led
Product Description
Steel wall panel roll former making machine Description:
This Steel wall panel roll former making machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which required, and stacking the finishing panel automatically. Steel wall panel roll former making machine adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, Steel wall panel roll former making machine is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters for Steel wall panel roll former making machine:
Item | Para | Remark | |
Suitable material | Type | Galvanized Steel/Aluminum |
|
Thickness (mm) | 0.3-0.8 |
| |
Yield Strength (Mpa) | 230 - 300Mpa |
| |
Width (mm) | 1220mm |
| |
Wet of the Coil (t) | 5tons |
| |
OD | Φ1350mm |
| |
ID | Φ508 mm/Φ610mm |
| |
Material of rollers | NO.45 steel with chrome plate |
| |
Forming Speed (m/min) | About20M/min | Not including cutting time | |
Power Source | AC380V, 60 Hz, 3Phase | According to Buyer request | |
Total power | About9KW | Depend on final design | |
Dimension (L×W×H, m) | See the layout | Depend on final design |
Working Process for Steel wall panel roll former making machine :
Decoil →Guiding system →Roll forming →Post Cutting →Output the finished products to supporter
Components Parts of the Steel wall panel roll former making machine:
Model/Name | Quantity | Technical Description |
Cantilever Decoiler | 1set | Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control |
Feeding guide device | 1set | 1) Roller material: No.45 steel with surface hard chrome painted. 2) Roller inner supporting structure type: guide column 3) Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4) Cutting blade material Cr12 quenched treatment |
Roll forming system | 1set | |
Post-cutting device | 1set | |
Product Supporter | 1set | For supporting the finished panels and the length of each piece is 2m, two pieces. |
4. Hydraulic system | 1set | Hydraulic station |
5. Electric control system | 1set | PLC Control, encoder automatic cutting in length Operation stage: button + touch screen AC frequency for adjusting the speed |
Packing and shipping about the Steel wall panel roll former making machine
