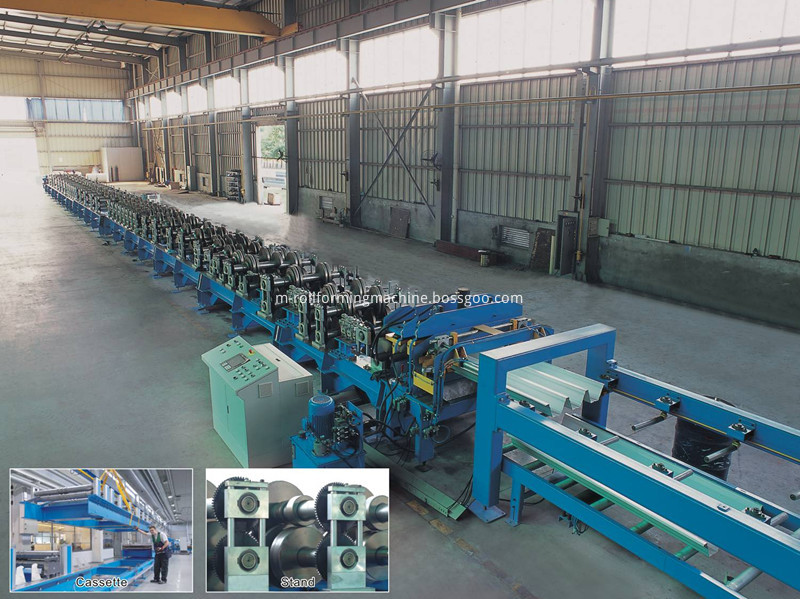

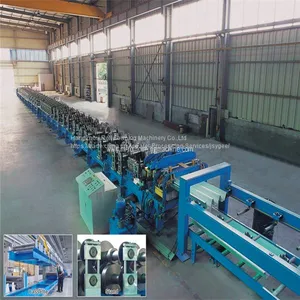

This Steel floor deck roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet.
Steel floor deck roll forming machine adopts coiling steel sheet as the raw material, declination, then continuous rolling and cold
forming, automatically cut to the size and output the finished panel to the supporter.
The Steel floor deck roll forming machine adopts PLC control, AC frequency and speed adjusting technology, and it realizes the continuous automatically production,
therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters for the Steel floor deck roll forming machine
| Item | Para | Remark | |
| Suitable material | Type | Colored coating steel |
|
| Thickness (mm) | 0.4-0.7 |
| |
| Yield Strength (Mpa) | 230-340Mpa |
| |
| Width (mm) | 1250 |
| |
| Wt of the Coil (t) | 5 |
| |
| OD | Φ1350mm |
| |
| ID | Φ508 mm/Φ610mm |
| |
| Material of rollers | No45 chromeplate |
| |
| Forming Speed (m/min) | About20 | Not including cutting time | |
| Power Source | AC380V ,50 Hz, 3 Phase | Will be according to actual design | |
| Total power | About9KW | Will be according to actual design | |
| Dimension (L×W×H, m) | See the layout | Will be according to actual design | |
Components for the Steel floor deck roll forming machine
| Name | Model/Name | Quantity | Technical Description |
| 1. Decoiler system | Cantilever decoiler | 1set | Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control |
| 2.Main forming system | Feeding guide device | 1set | 1. Roller material:No.45 steel with surface hard chrome painted. 2. Roller inner supporting structure type: guide column 3. Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4. Cutting blade material Cr12 quenched treatment |
| Roll forming system | 1set | ||
| Post-cutting device | 1set | ||
| 3. Output system | Product Supporter | 1set | For supporting the finished panels and the length of each piece is 2m,two pieces. |
| 4. Hydraulic system | 1set | Hydraulic station | |
| 5. Electric control system | 1set | PLC Control, encoder automatic cutting in length Operation stage: button AC frequency for adjusting the speed | |
Working process for Steel floor deck roll forming machine
Decoil →Guiding system →Roll forming →Post Cutting →Output the finished products to supporter
Packing and shipping about theSteel floor deck roll forming machine
More about our MAXMACH group
