Product Description

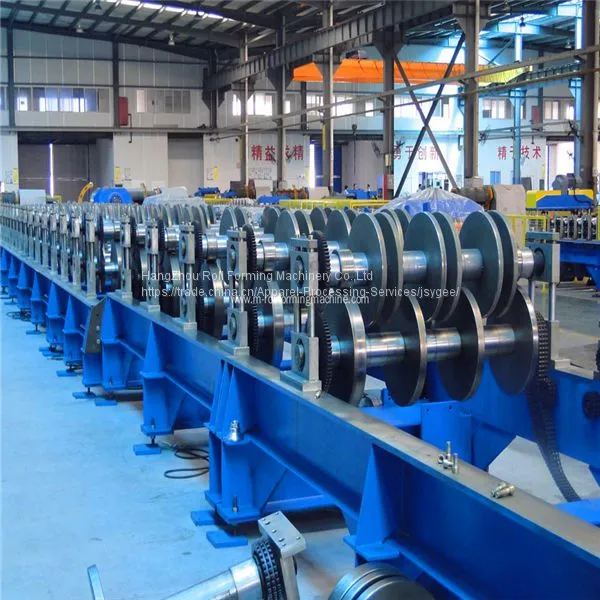

This Steel floor deck roller machine is the special equipment for continuous rolling and cold-forming on steel sheet.

Steel floor deck roller machine adopts coiling steel sheet as the raw material, declination, then continuous rolling and cold

forming, automatically cut to the size and output the finished panel to the supporter.

The Steel floor deck roller machine adopts PLC control, AC frequency and speed adjusting technology, and it realizes the continuous automatically production,

therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Technical Parameters for the Steel floor deck roller machine

Item			Parameter	Remark
Suitable Material	Type		Galvanized steel
	Width(mm)		1250
	Thickness(mm)		0.8-1.2
	Yield strength(Mpa)		230-300
	Coil capacity(T)		8
Forming Speed(m/min)			About 20m/min	Depend on final design
Roller Material			No.45 steel	With hard chrome painted.
No of Roller station			About 30	Depend on final design
Roller shaft diameter			About 90	Depend on final design
Cutting Model			Hydraulic cutting
Power source		Type	380V/3PH/50HZ
		Main motor power(KW)	About 16	Depend on final design
		Total power(KW)	About 23	Depend on final design
Machinery dimension			See layout

Components for the Steel floor deck roller machine

Name		Quantity	Description
Uncoiler with coil car (capacity:8 t)		1 set	Structure: Arm-type Expanding model: hydraulic Releasing model: electrical With ultrasonic control
Main machine	Guiding device	1 set
	Roll forming system	1 set	Roller inner supporting structure: guide Colum
	Post cutting device	1 set	Cutting blade material: Cr12 quenched treatment
Supporting table		2pcs	Dimension: 2*2m
PLC control system		1 set	MITSUBISH, Frequency
Hydraulic station		1 set	.Famous Chinese brand

Packing and shipping about the Steel floor deck roller machine
