Specifications

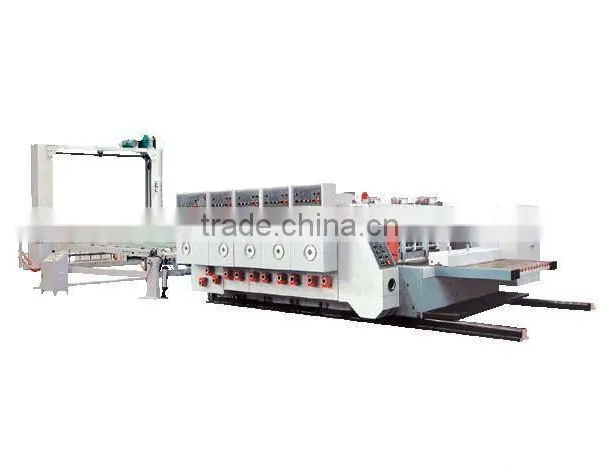

Automatic High Speed 4-Color Carton Flexo Printing Machine1.With Slotting & Die-cutting
2.High quality
3.Long service life
Performance & Characteristics
1.Computer order storage and adjustment, faster order update and convenient operation.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digit-controlled grinder.
3.All the transmission axle and rollers are made of high-quality steel with high-precision dynamic balance, plated with rigid chrome and grinded surface.
4.The transmission gear adopts the high-quality steel, which is grinded after heat-treatment, after long use, it still maintains the high topping precision.
5.The main machine transmission parts adopt the hand-free connection ring to eliminate the interval, suit able for long-term high speed printing.
6.The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
7.It possesses the print, die-cutting, slotting memory function, which could return to Zero and Re-set automatically.
8.PCLINK control network, MCGS software, Siemens low voltage electric appliance and host frequency conversion control, 30% electricity saving.
9.Double axle slotting to configure whole machine production management computer control system and single axle slotting to configure whole machine production management computer control system
10.Optional: remote computer diagnosis system
Part Details
Main Technical Parameters
Model | UNIT | 2600 |
Max. paper coverage area | mm | 1500*2500 |
Effective printing area | mm | 1500*2200 |
Min. finish size | mm | 400*500 |
Thickness of printing plank | mm | 6 |
Max. speed | pieces/min | 120 |
Economy speed | pieces/min | 100 |
Frequency conversion power of main motor | kw | 18.5-30 |
Topping precision(4-color) | mm | ±0.75 |
Slotting precision | mm | ±1.5 |
