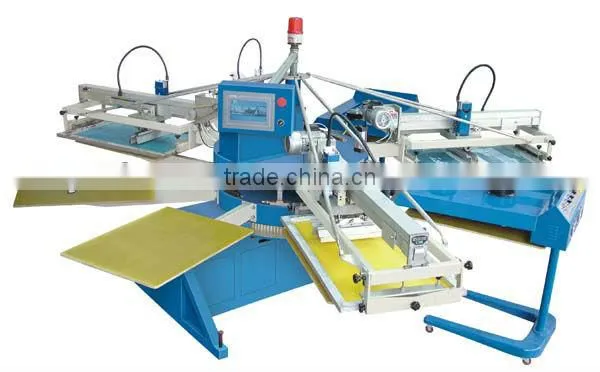

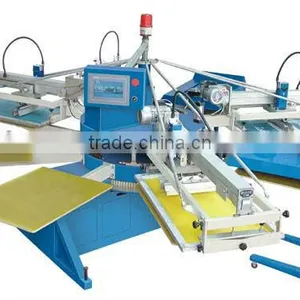

SPE Series Multifunctional Automatic Rotary Textile Screen Printer

Specifications

1.Automatic T-shirt screen printing machine
2.Table Rotates freely for high position & nice registration
3.Multifunctional

SPE series is the multifunctional automatic screen printers. With intellegent micro-processor, touch screen and servo motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ±0.05mm. All parts of the machine body are tested precisly before installation, ensuring minimal maintenance and easy operation. The SPE series automatic screen printer must be your ideal printer in printing industry.

Features

1.Servo motor driven and high-tech system built in

2.Turntable Rotates freely for high positioning nice registration.

3.Print/flood speeds adjusted electrically

4.Print pressure, print strokes , and it angle are adjustable.

5.The movable dryer can be put inside of any print stations as necessary

Model	SPE-104/8	SPE-156/10	SPE-158/12
Print Color/Station	4-6/8	4-8/10	6-10/12
Maz. Image Area	500×700/mm	500×700/mm	500×700/mm
Pallet Size	600×800/mm	600×800/mm	600×800/mm
Frame Size	680×980/mm	680×980/mm	680×980/mm
Air	≥0.8Mpa	≥1.0Mpa	≥1.0Mpa
Max.Output	700pcs/h	700pcs/h	700pcs/h
Power	2.0Kw	2.0Kw	2.9Kw
Dryer Unit Power	13.5Kw	13.5Kw	13.5Kw
Size	φ4000×1650/mm	φ4800×1850/mm	φ5000×1850/mm
Weight	1500Kg	2000 Kg	2200 Kg
