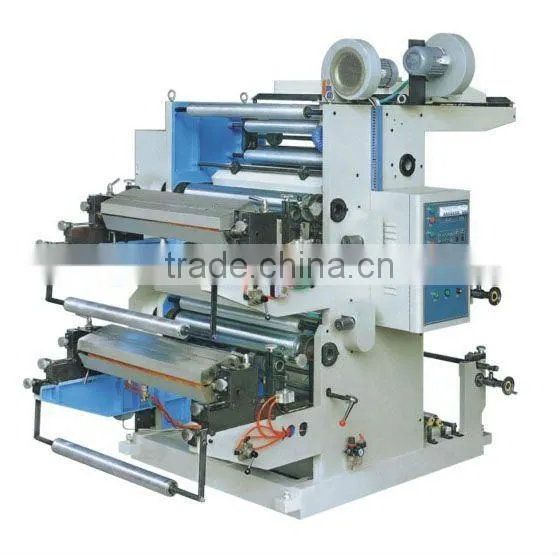

YT Series 2-Color Flexo Printing Machine

Specifications

1.Plastic Film Flexo Printing Machine
2.Register precision:Longitude:0.25mm Transverse:0.25mm
3.Easy to operate.

Use
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics
1. Easy operation, flexible starting, accurate colour register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Variables
Model of Machine	2600	2800	41000
Max. Width of Printing Material	600mm	800mm	1000mm
Max. Printing Width	560mm	760mm	960mm
Length Range of Printed  Product	180-1200mm	180-1200mm	180-1200mm
Max. Diameter of Roll Material	Φ 450mm	Φ 450mm	Φ 450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Thickness of plate (Including Two-sided Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	8kw	10kw	12kw
Weight of Machine	1800kg	2000kg	2200kg
Machine Dimensions	2300*1600*2200	2300*1800*2200	2300*2000*2200
