4 Color Flexographic Roll Printing Machine For Plastic And Paper

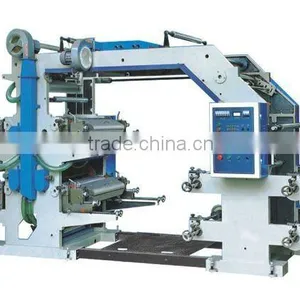

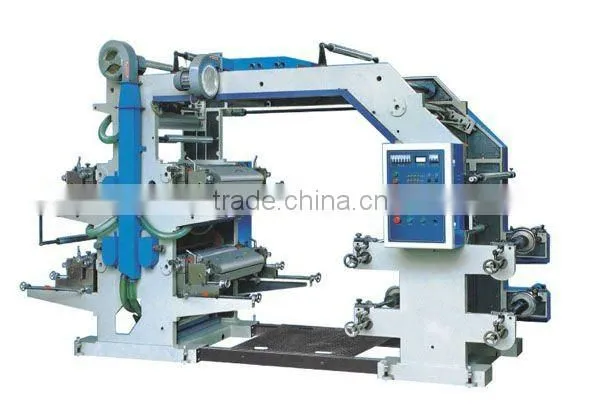

4 Color Flexographic Roll Printing Machine For Plastic And Paper photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number TH series
Usage Paper Printer
Automatic Grade Automatic
Voltage 380V
Gross Power 10.87KW/12.5KW
Dimensions(L*W*H) It depends
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

4 Color Flexographic Roll Printing Machine For Plastic & Paper
To print polyethylene,polypropylene bag,cellophane & roll paper

Performance

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Features

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.

Main Technical Variables

Model

4600

4800

Max.Width of Printing Material

600mm

800mm

Max.Printing Width

560mm

760mm

Length Range of Printed Product

191-1000mm

191-1000mm

Max.Diameter of Roll Material

φ450mm

φ450mm

Printing Speed

50~80m/min

50~80m/min

Thickness of plate(Including Two-sides Glue Paper)

2.38mm

2.38mm

Total Power

10.87kw

12.5kw

Weight of Machine

3000kg

3500kg

Overall Dimensions

4200*1600*2400mm

4200*1800*2400mm
