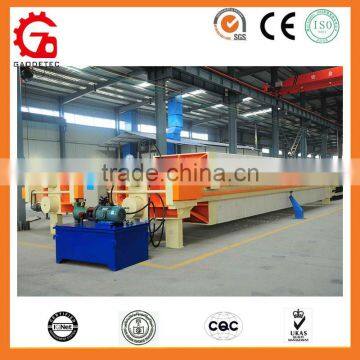

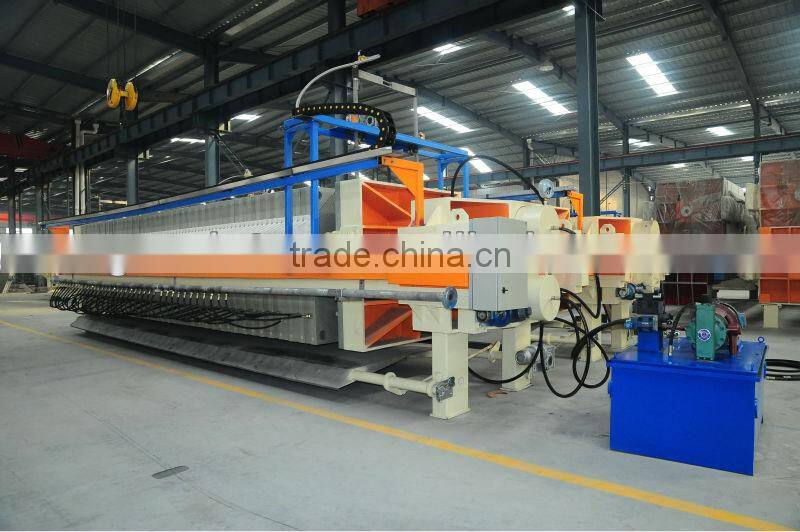

2016 Hot Selling Program Controlled Auto Filter Press Equipment

2016 Hot Selling Program Controlled Auto Filter Press Equipment

2016 Hot Selling Program Controlled Auto Filter Press Equipment

Structure and operating principle

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .

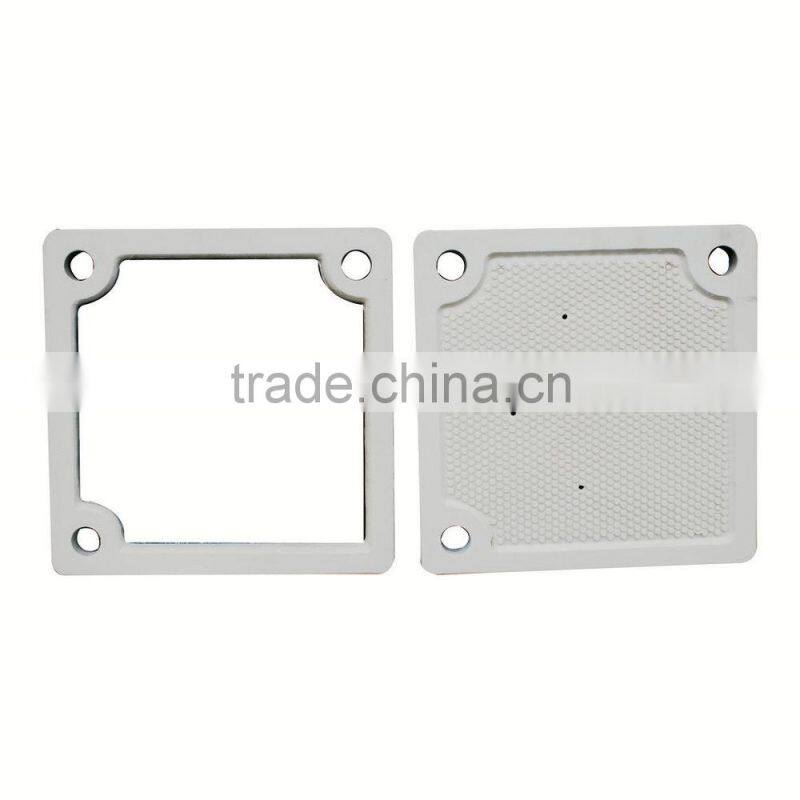

5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

Hydraulic filter press use electrical-contact pressure meter to realize pressure keeping, so it has features of easy operation, stable performance, but the cakes are discharged manually. So it is suitable for the filter press which filtering area is not too big and don't have too many plates.

Technical data of auto filter press by auto dwelling :

Auto filter press industrial art  specification :

Hydraulic station used in auto filter press:

Electric control box in auto filter press press :

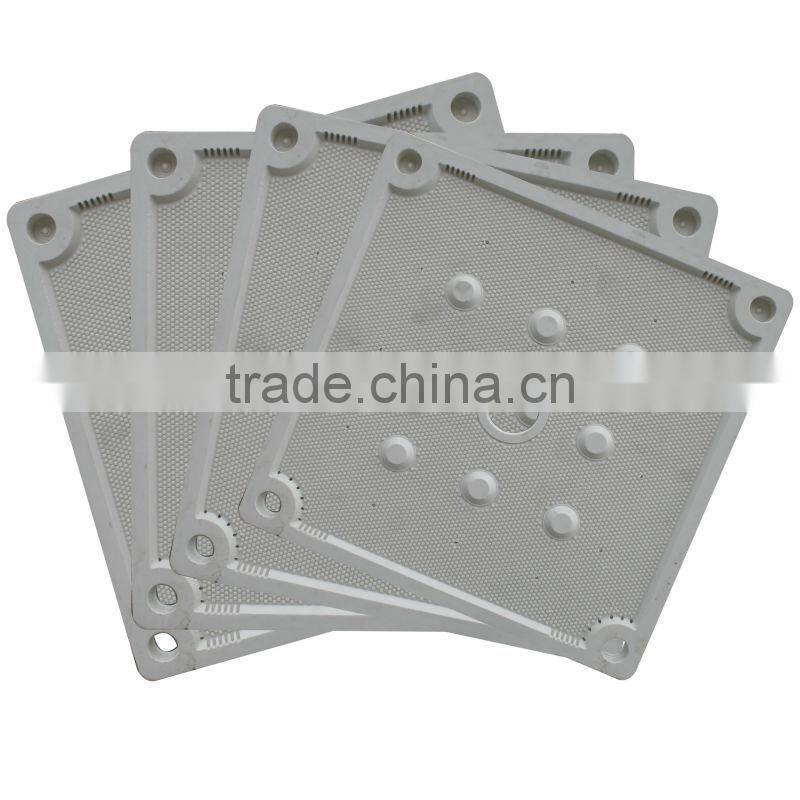

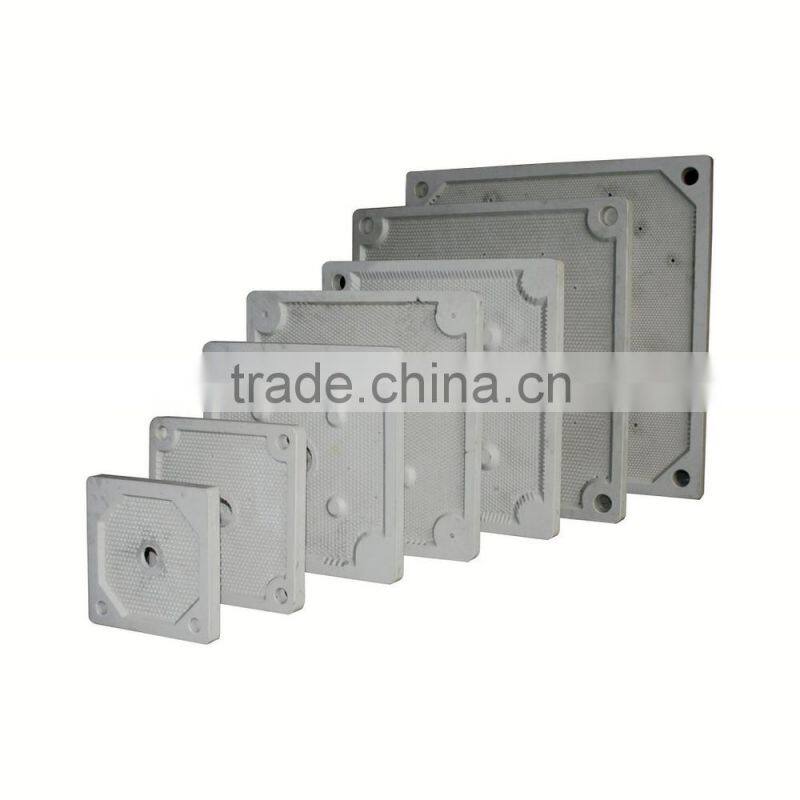

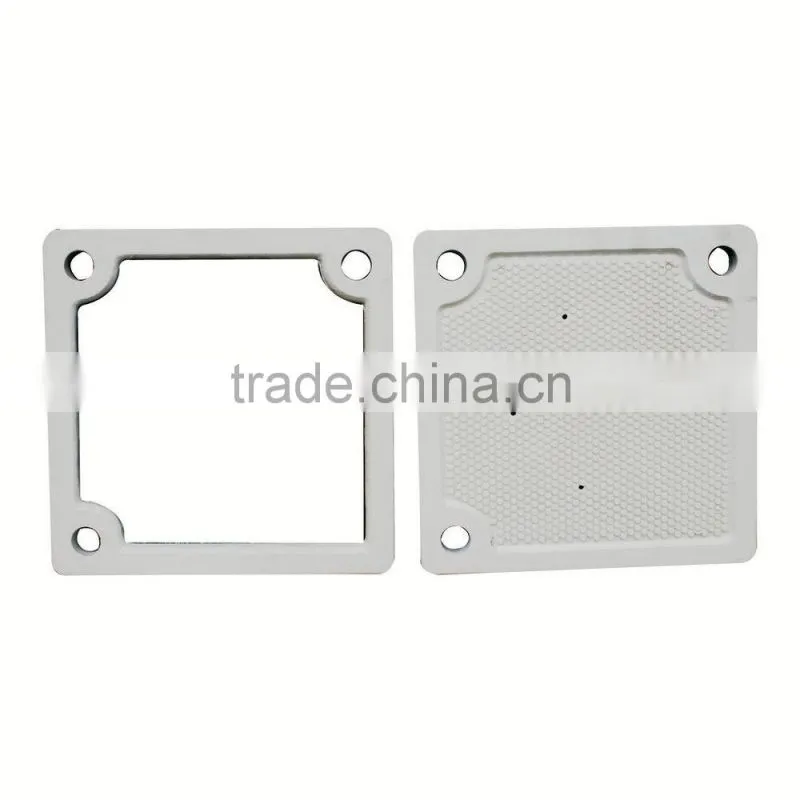

 Filter plate in  auto filter press :

Auto filter press Filter plate pressure detection:

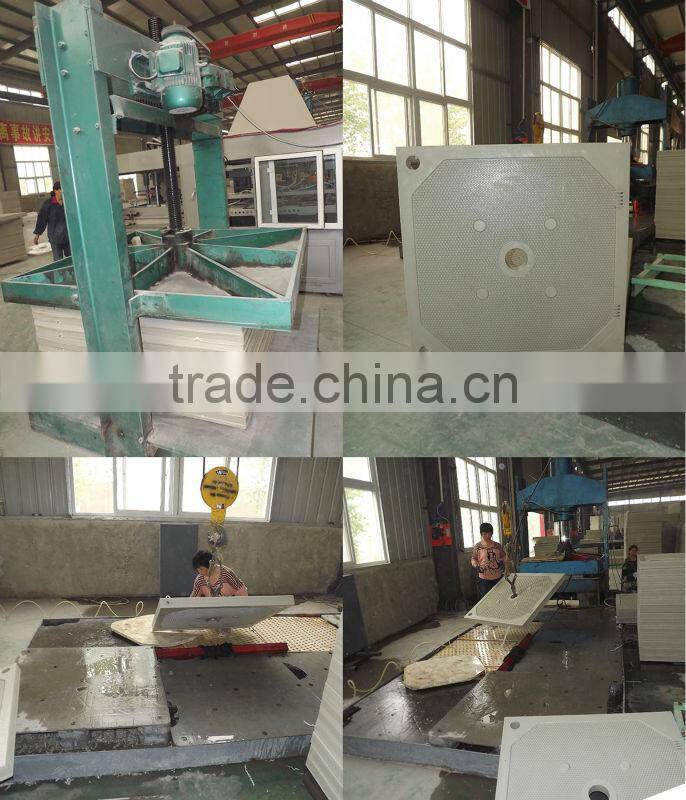

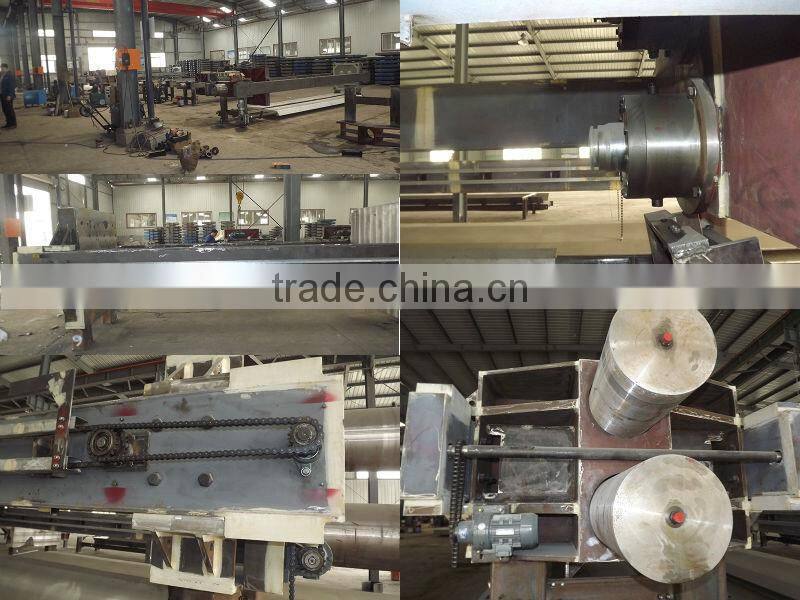

Our workshop of auto filter press:

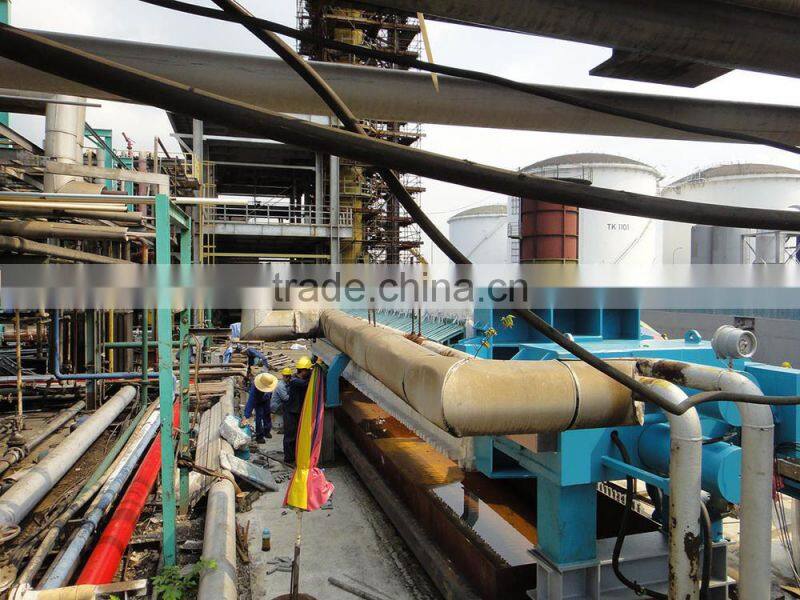

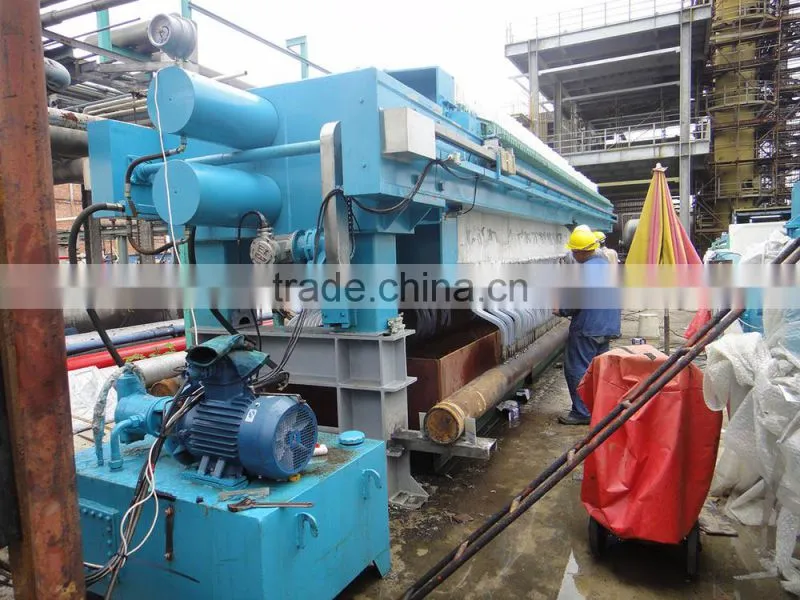

Our Worksit of auto filter press:

Our Cetification of auto filter press :

 If have any interests, please contact us freely!
