BMY10/450-30U Plate and Frame Hydraulic Oil Filter Press Machine

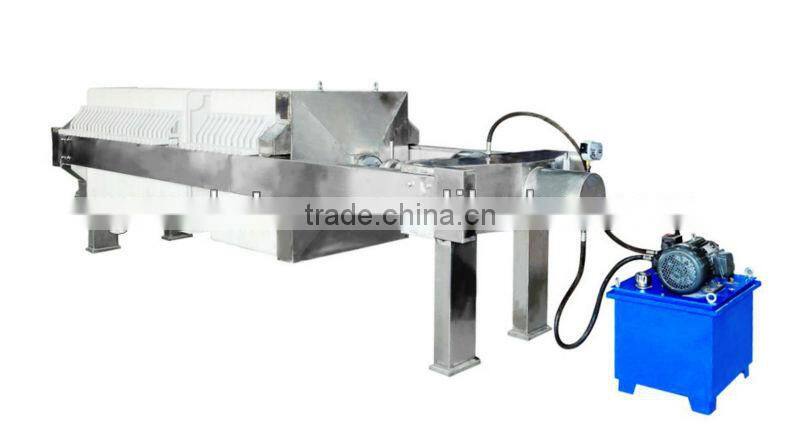

BMY10/450-30U plate and frame hydraulic oil filter press machine

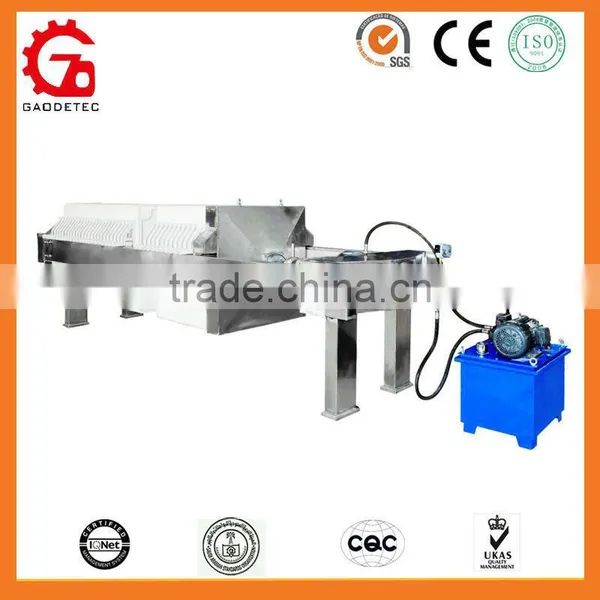

BMY10/450-30U plate and frame hydraulic oil filter press machine

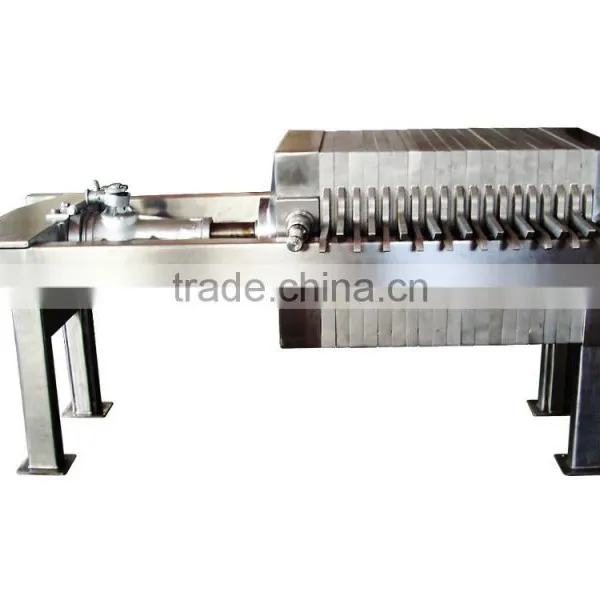

Structure and operating principle

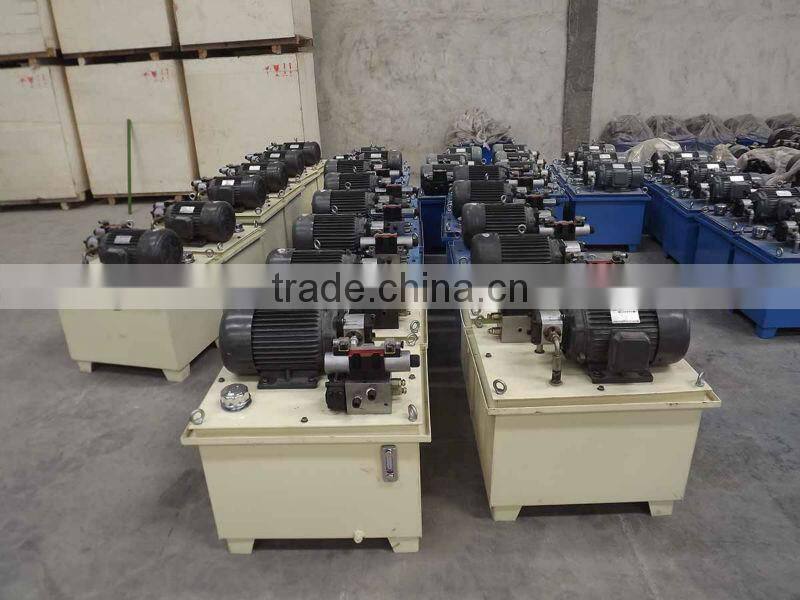

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

Products feature of oil filter press machine:

Between the filter plate with frame, there is the filtering medium, such as filter, cloth, filter paper etc. If use the filter paper as medium, it will be called S.S. Paperboard filter press. And under the bottom, here is a bar to support the filtering medium. With filtering paperboard, it can filter various liquor, so that remove the bacteria.

This filter press is a features of high capacity, high pressure, high temperature. It is widely used for various insustries: chemicals, pharmaceutical intermediates, fine chemcials, metallurgy, petroleum, edible oil etc.

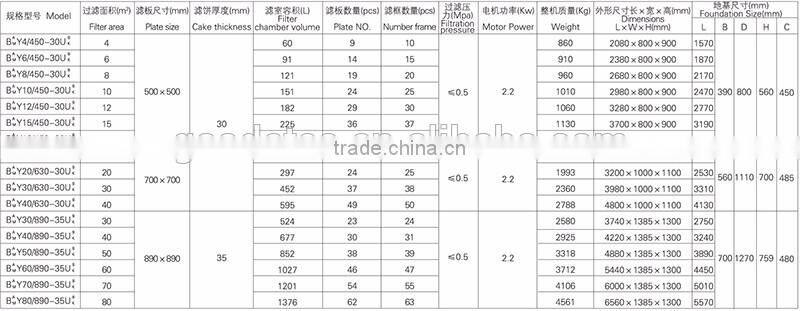

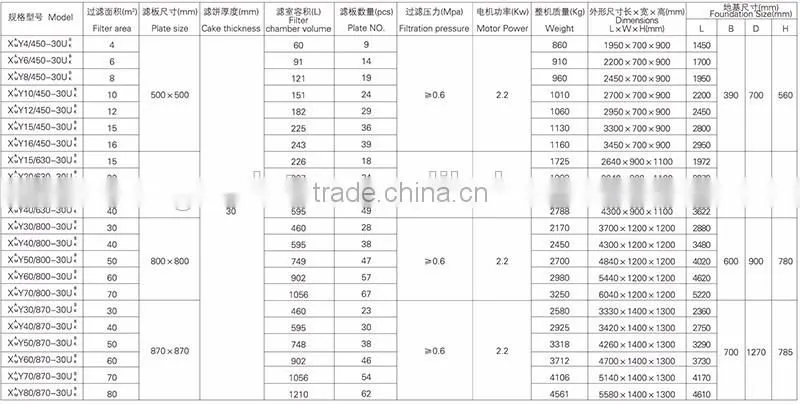

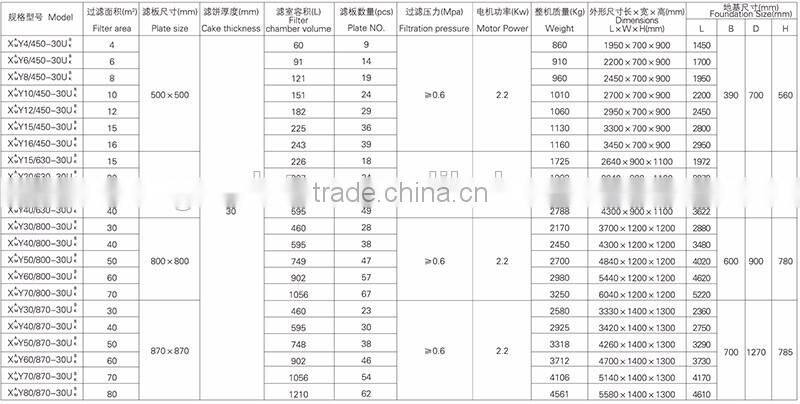

Technical data of oil filter press machine by auto dwelling:

Flange size:

 Oil filter press machine industrial art  specification :

used in  coconut  oil filter press machine :

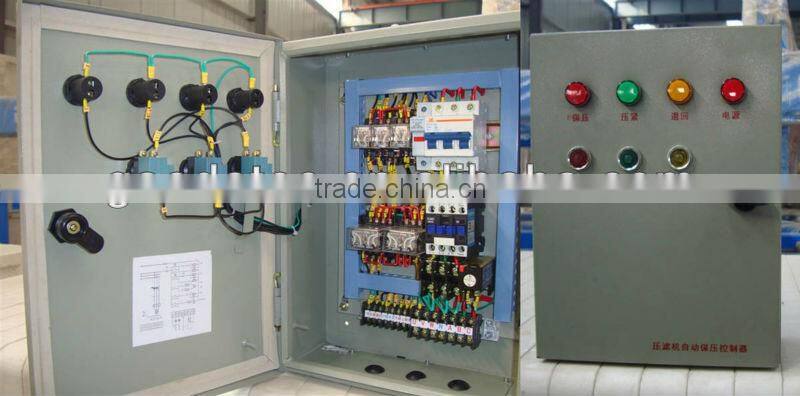

Electric control box in  oil filter press machine:

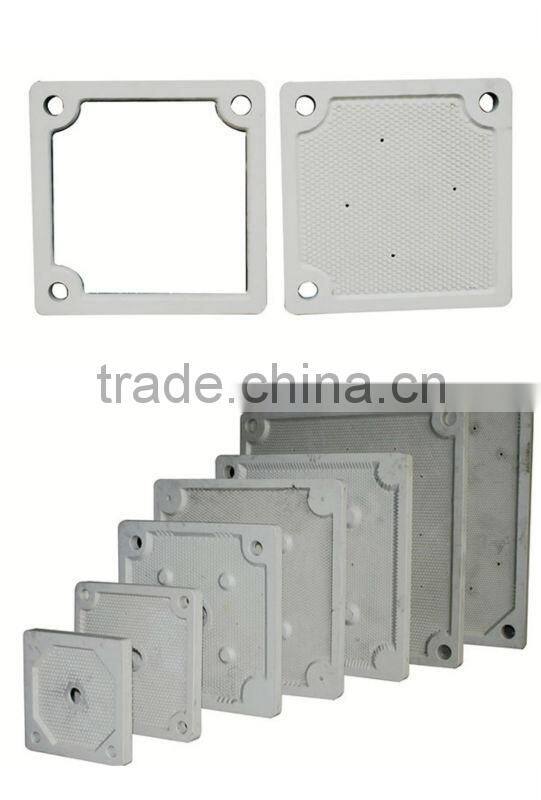

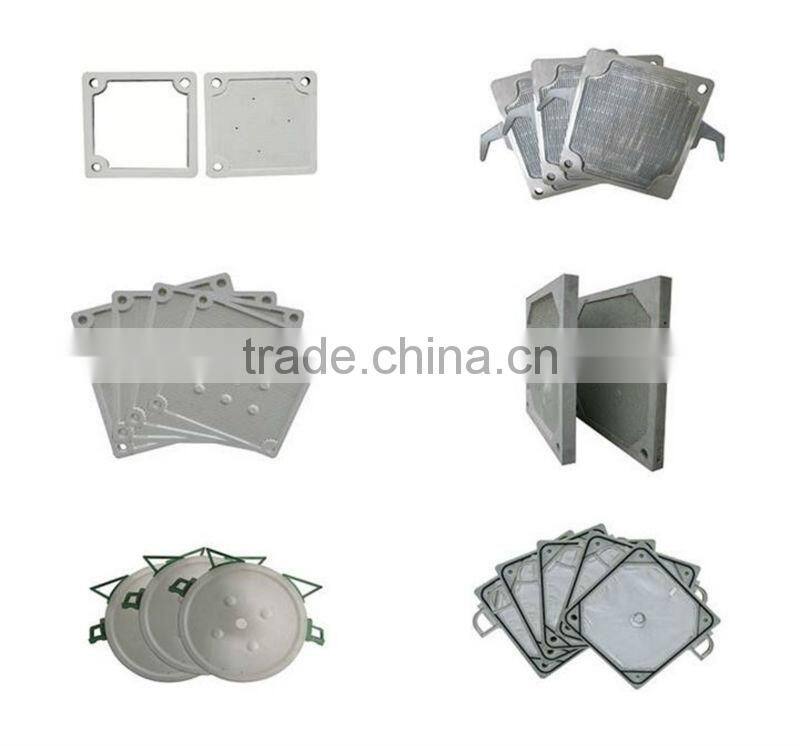

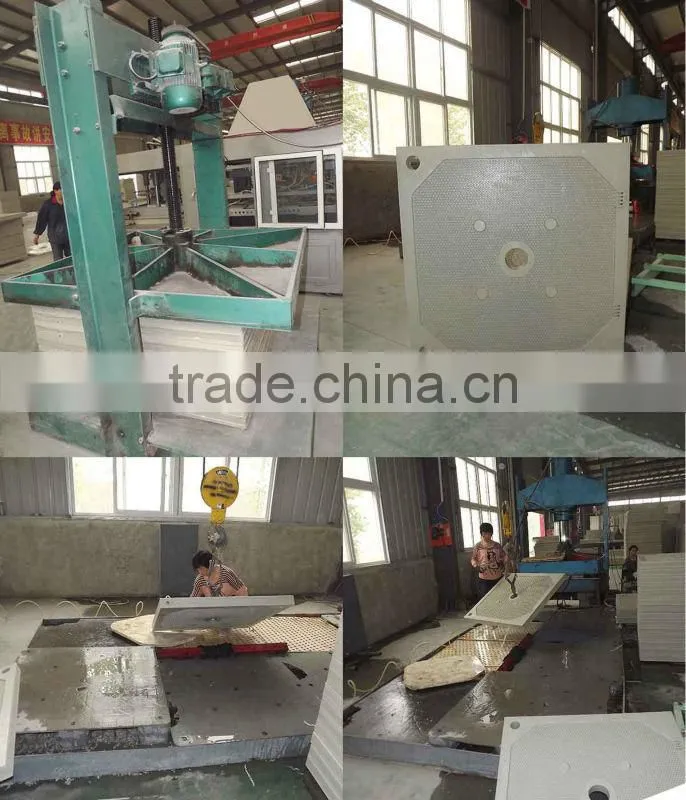

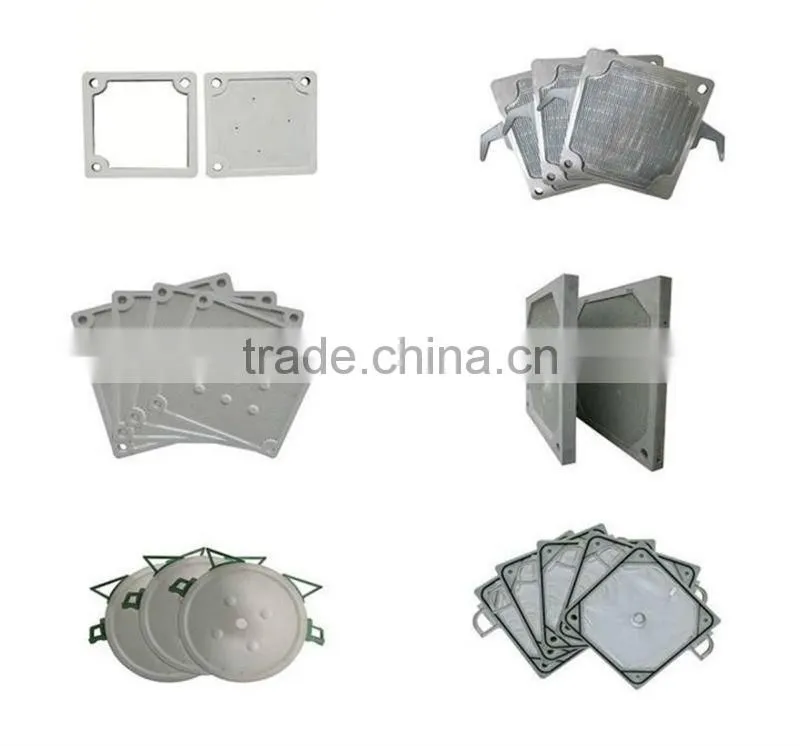

Filter plate in oil filter press machine:

Filter plate pressure detection :

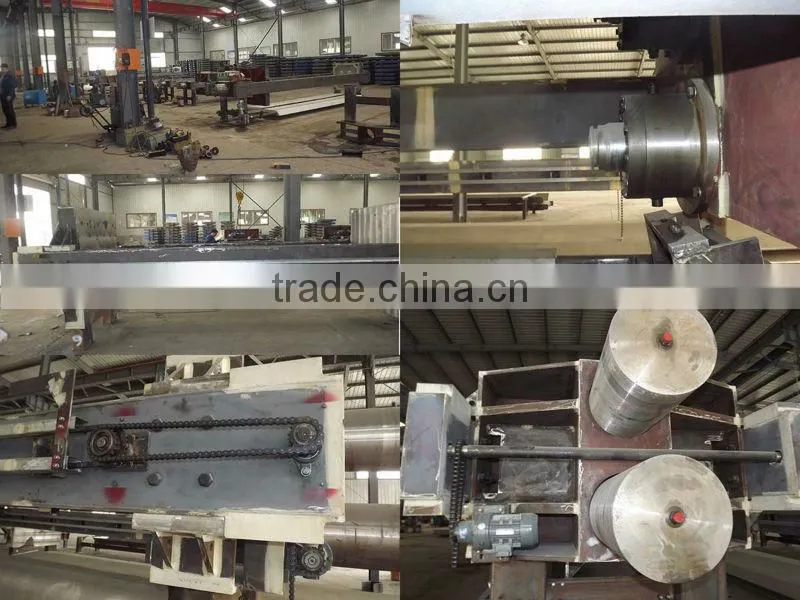

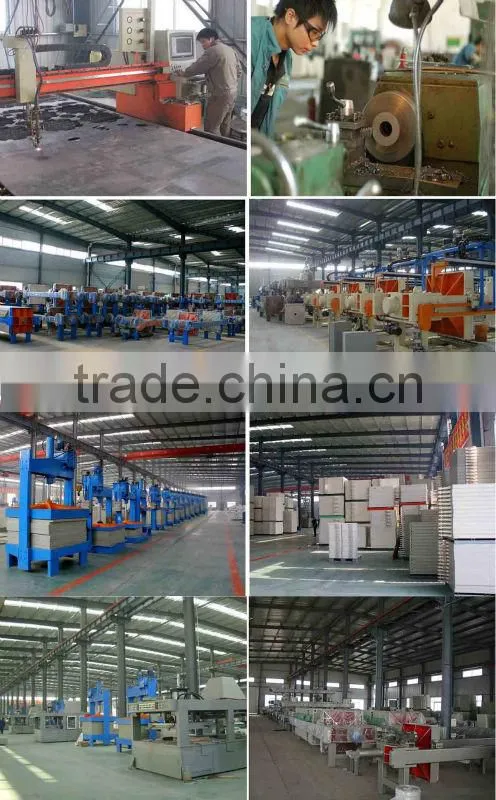

Our workshop:

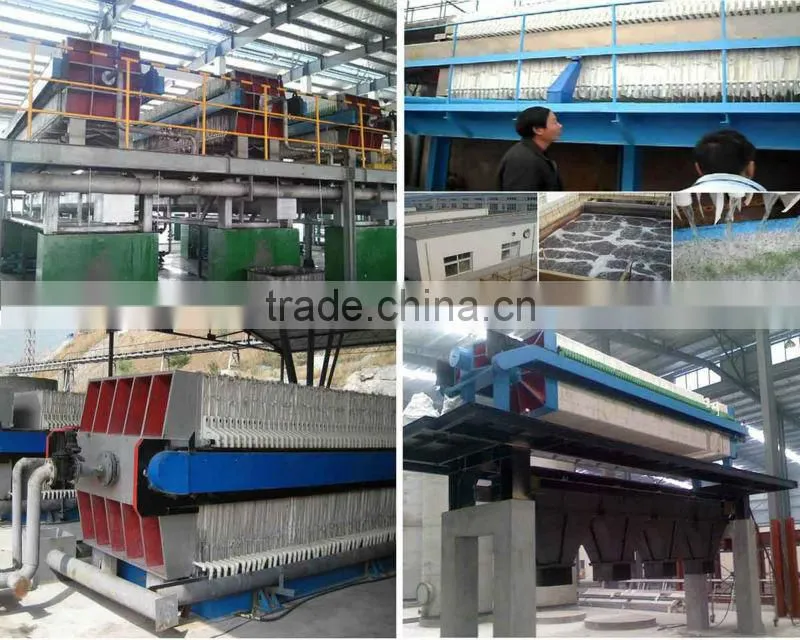

Our worksite :

Our Cetification:
