Structure and operating principle

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
5. Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6. Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .

 Design feature:

Automatic chamber/recessed  filter press use micro computer processor, PLC and touch screen to control every part's actions, such as: cylinder, plate shifter, cloth washing etc.) and remote control ports are left.

High efficiency filter press expended the length of cylinder and can discharge several cakes every time. The advantages: stable performance, high efficiency 3-6 times and lower running cost.

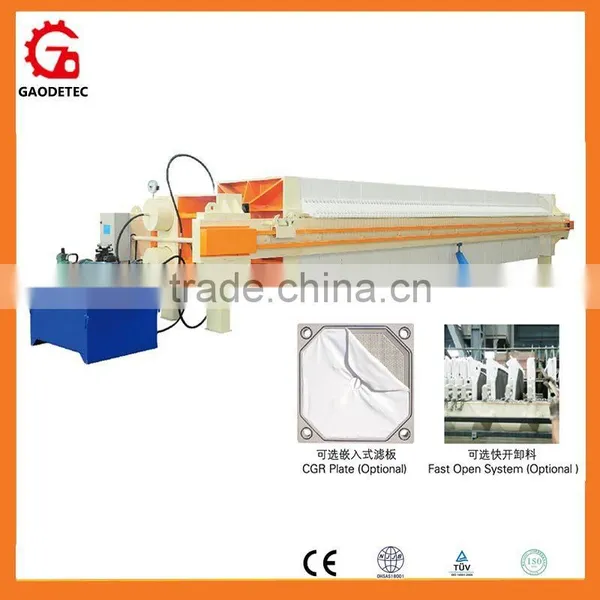

The fast open system can increase the cale discharging efficiency 3-6 times,especially for the filter press that have a large quantity of plates and need frequent operations.

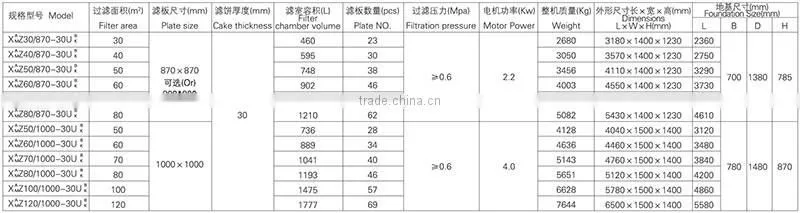

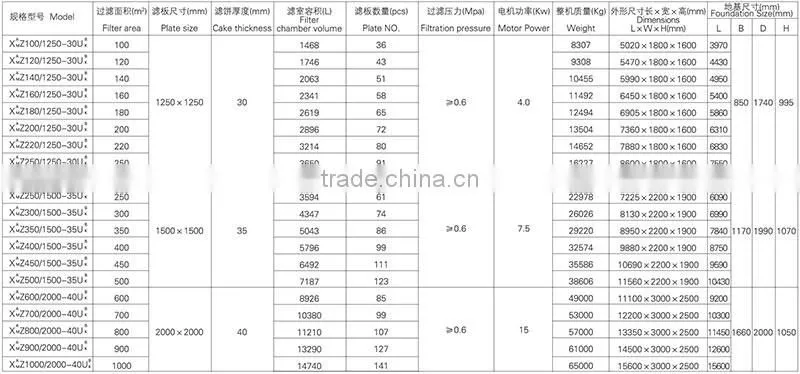

Technical data of wine filter press by auto dwelling :

Wine filter press industrial art  specification :

Hydraulic station used in wine filter press:

Electric control box in wine filter press:

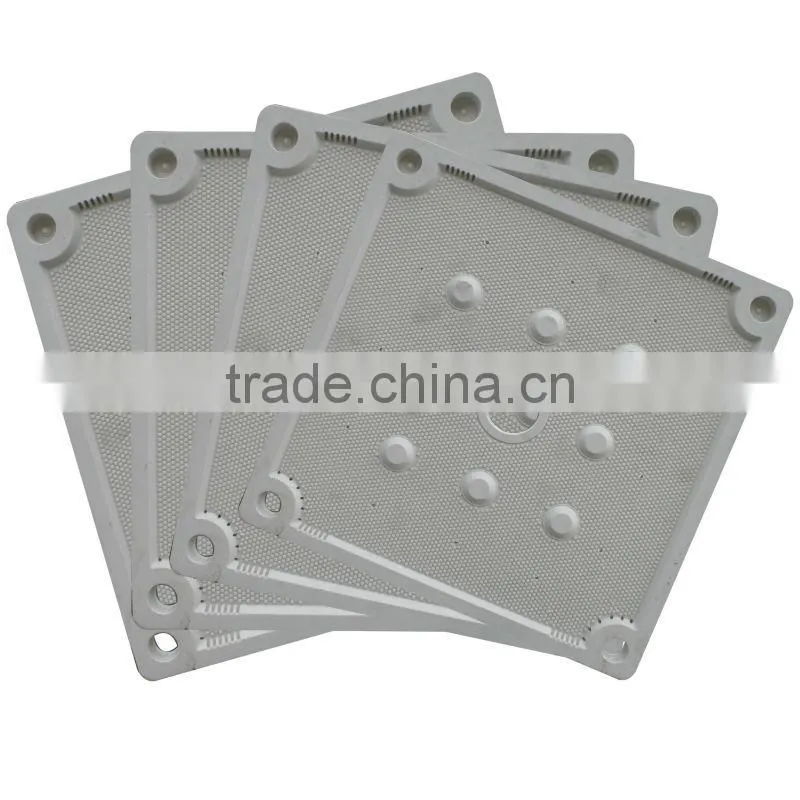

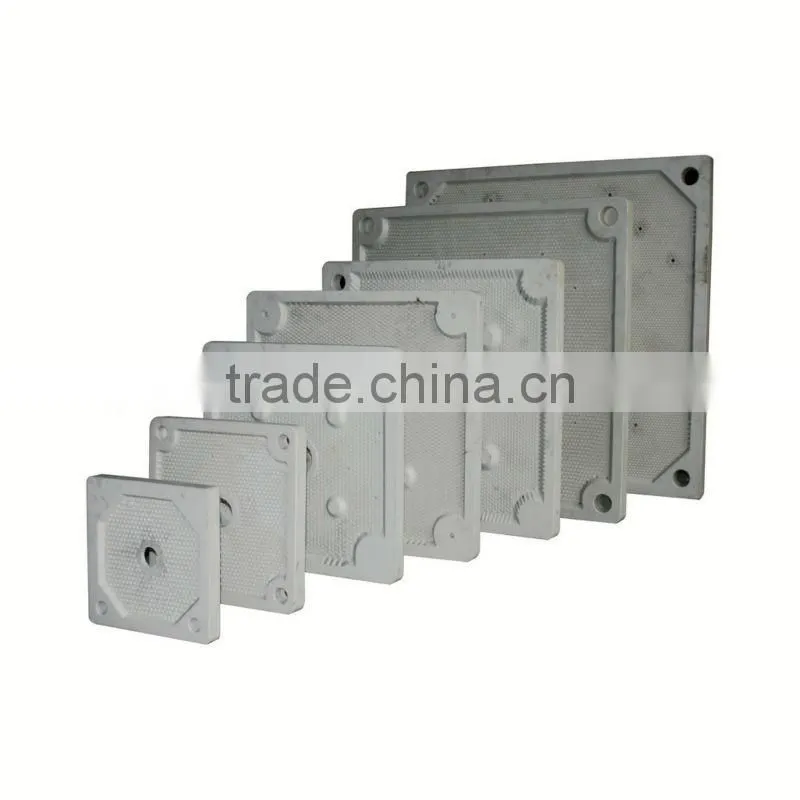

Filter plate in wine filter press:

Wine filter press Filter plate pressure detection :

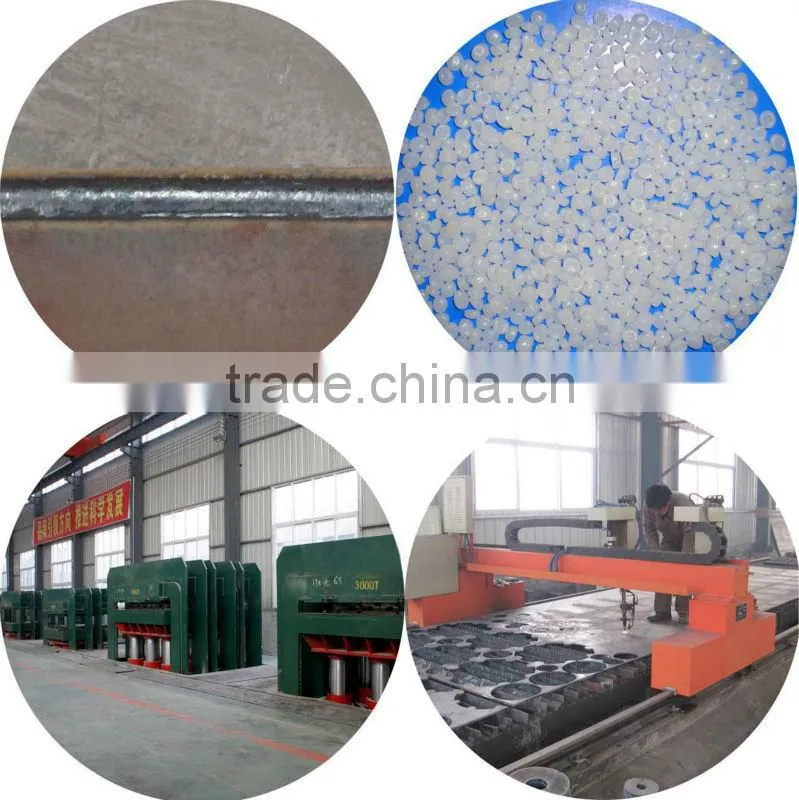

Our workshop of wine filter press :

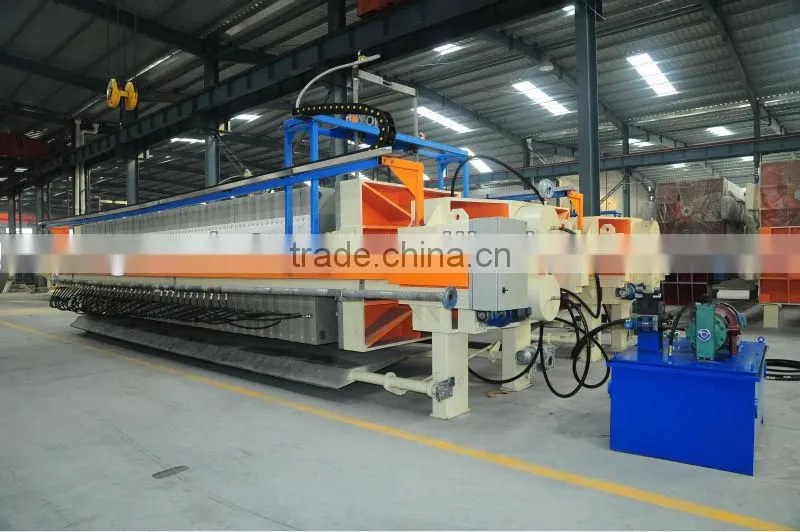

Wine filter press Worksite :
