High Performance Hydraulic Automatic Filter Press Machine
US$ 5,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
100ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-Layer Stainless Steel Frame Laboratory Filter PressUS$ 100 - 10,000MOQ: 1 Set -
Program-Controlled Automatic Chamber/Recessed Wine Filter PressUS$ 5,000 - 50,000MOQ: 1 Set
-
Hot Sale Multi-layer Stainless Steel Frame Portable Filter PressUS$ 1,000 - 10,000MOQ: 1 Set
-
Can Remote Operation Fully Automatic Mining Filter PressUS$ 5,000 - 50,000MOQ: 1 Set
-
BMY10/450-30U Plate and Frame Hydraulic Oil Filter Press MachineUS$ 5,000 - 50,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Production Capacity
100ton
Place of Origin
Henan, China
Brand Name
GEC
Model Number
XAMY1000/1250/1500 Series
Voltage
380V or as your request
Power(W)
4.0Kw
Weight
4072kg
Dimension(L*W*H)
4040*1500*1400mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

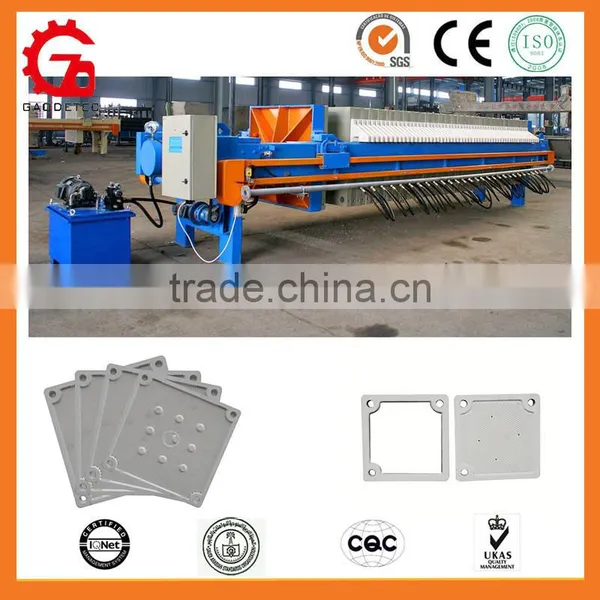

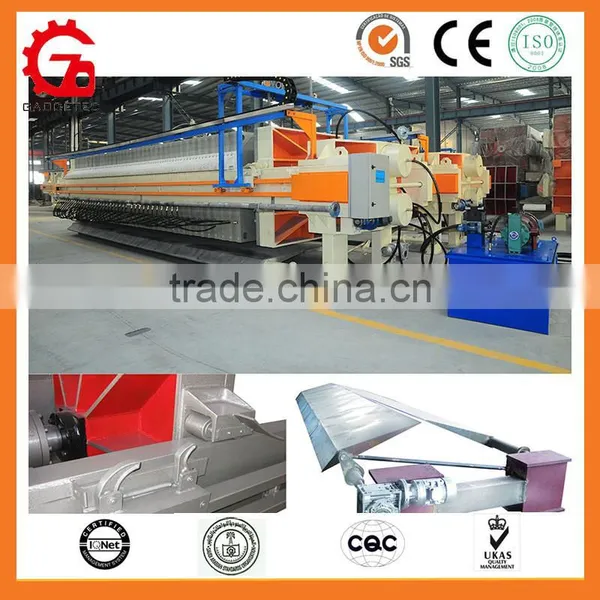

High Performance Hydraulic Automatic Filter Press Machine
Product Description
Structure and operating principle
- Filter press consist of frame, filter plate, pressing system(manual, mechanical or hydraulic ) and electric control cabinet .
- Frame consists of base, push plate and girder and supports the pressing device and filter plates.
- Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them.
- In operation, the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate. Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes, while liquid is discharged out of the tail Plate. In similar manner ,to drying the press cakes, compressed air can be introduced through the washing port.
- Plate and frame type filter-Press is the same as recessed plate filter press in structure, except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
- Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .
Hydraulic Automatic compression oil filter press: The use of electrically maintain pressure, easy operation, stable, reliable structure for filtering larger filter press.
Technical data of oil filter press by auto dwelling:
Hydraulic Station Used in filter press machine :
Electric Control Box in filter press machine :
Filter Plate in filter press machine :
Company Information
Our workshop of Filter Press machine :
Oil Filter Press Worksite:
Certifications
Our Cetification of Oil Filter Press:
