High Pressure Circular Frame Mud Filter Press
US$ 5,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
100ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Easy Operation Hydraulic Automatic Oil Filter Press For SaleUS$ 5,000 - 50,000MOQ: 1 Set -
High Performance Hydraulic Automatic Filter Press MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
Multi-Layer Stainless Steel Frame Laboratory Filter PressUS$ 100 - 10,000MOQ: 1 Set
-
Program-Controlled Automatic Chamber/Recessed Wine Filter PressUS$ 5,000 - 50,000MOQ: 1 Set
-
Hot Sale Multi-layer Stainless Steel Frame Portable Filter PressUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Production Capacity
100ton
Place of Origin
Henan, China
Brand Name
GEC
Model Number
XAMSeries
Voltage
380V or as your request
Power(W)
4.0Kw
Weight
3346-6860kg
Dimension(L*W*H)
3300*1100*1060mm
Certification
ISO9001&CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

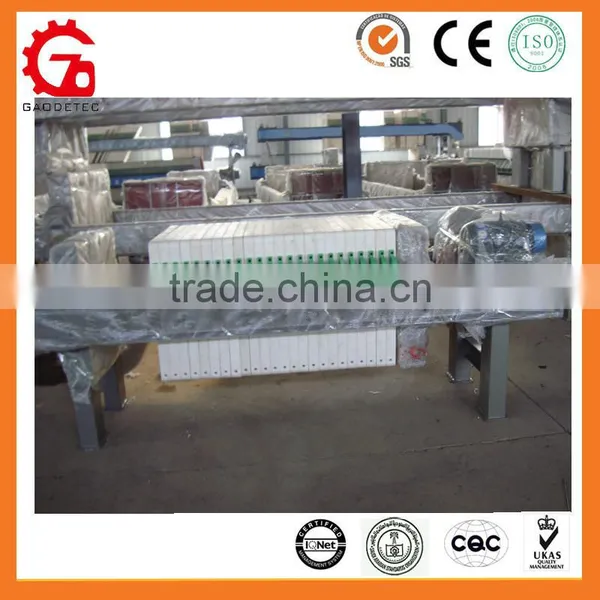

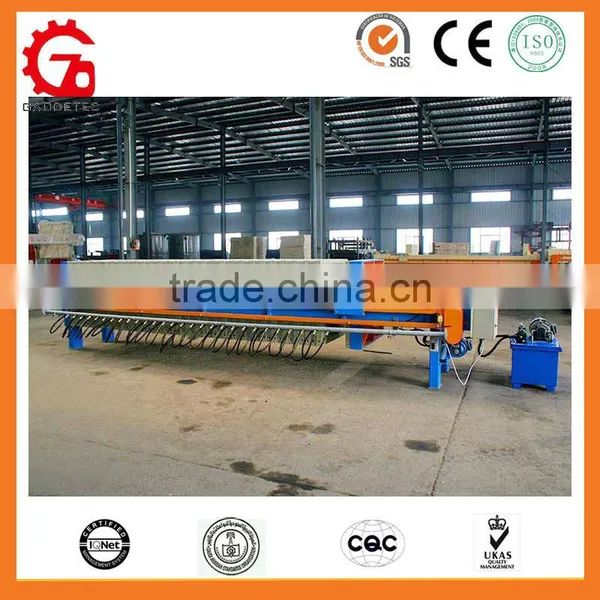

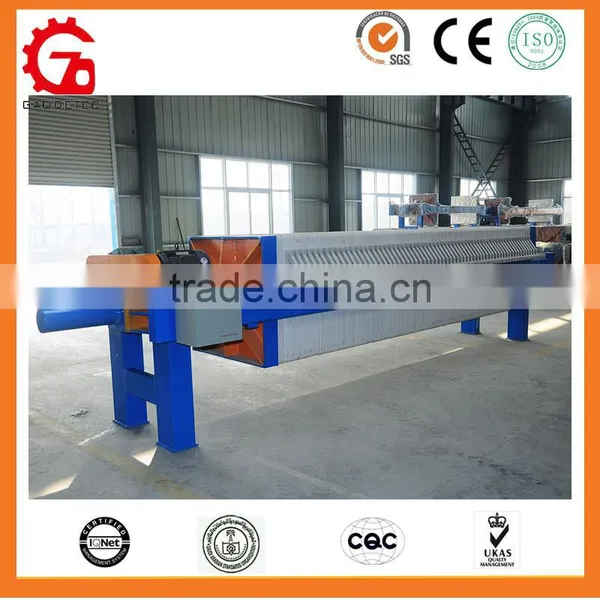

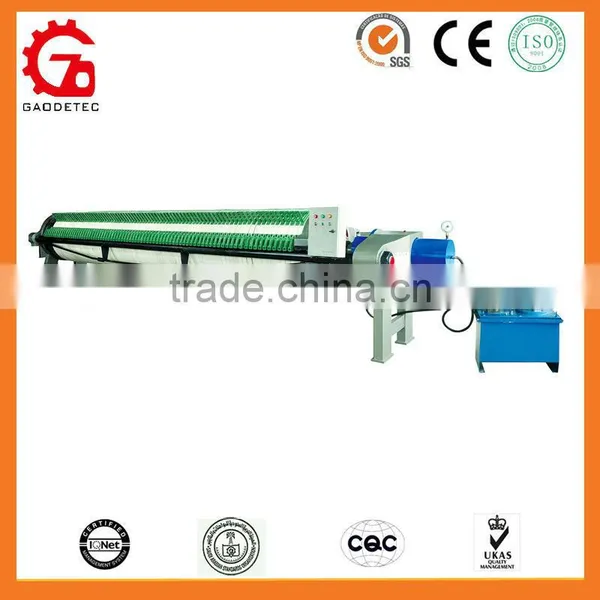

High Pressure Circular Frame Mud Filter Press
Product Description
Circular frame mud filter press
Structure and operating principle
- Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
- Frame consists of base , push plate and girder and supports the pressing device and filter plates .
- Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
- In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .
- Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
- Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter plate is collected before being discharged out of the filtrate port .
Appication of our mud filter press:
Used for stone wastewater, ceramics, kaolin, construction material industry solid/liquid separation. It has high filtration pressure and the cake moisture is very low.
Technical data of mud filter press by auto dwelling :
Mud filter press industrial art specification :

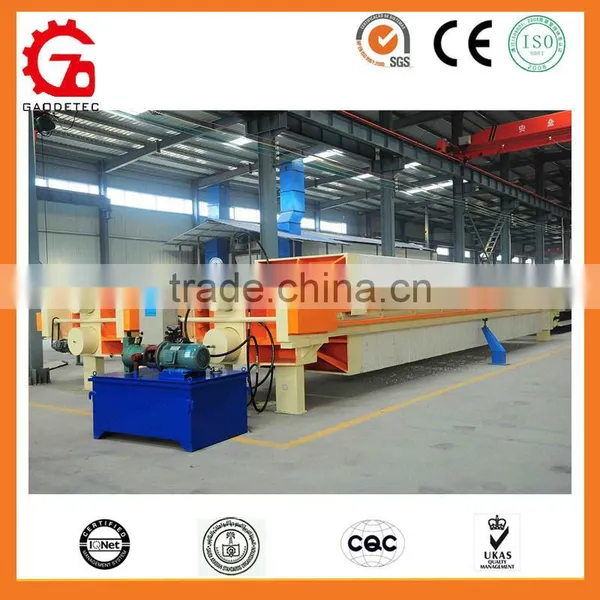

Hydraulic station used in mud filter press:
Electric control box in mud filter press:
Filter plate in mud filter press:
Filter plate pressure detection :
Company Information
Our workshop of mud filter press :
Applications
Mud filter press Worksite :
Certifications
Our Cetification of mud filter press:
If have any interest, please feel free to contact me!
