Help CenterMade in China New Automatic Light Weight Brick Making Machine
Related Products
-
High Efficiency New Clc Foam Concrete Brick Cutting MachineUS$ 1,400 - 1,900MOQ: 1 Set -
New Type Construction Equipment Lightweight Foam Concrete Brick MachineUS$ 10,500 - 21,000MOQ: 1 Set
-
CLC Cellular Lightwegiht Foam Concrete Block Production Machine in GeorgiaUS$ 9,900 - 21,100MOQ: 1 Set
-
LD30 Portable Multifunction Foam Concrete Machine for Blocks or PanelsUS$ 9,600 - 20,000MOQ: 1 Set
-
Insulation Foam Concrete Block Making MachineUS$ 8,500 - 15,000MOQ: 1 Set
light weight brick making machine
made in China new automatic light weight brick making machine
This fully foamed concrete light weight brick making machine's operation proceeds is automatic, combined the material feeding, foam generating, mixing, and transportation together.The concrete delivering pump, coming with double hydraulic cylinder. Basing on the high output pressure, it can deliver the foam concrete to the high building. It also equips with moving wheels, universal wheels, the stretch frame, easy to move to other sites. Light weight brick is produced from the foam generators and injected into slurry of cement, fly ash and water in foam concrete mixture. It creates many small air cells which are uniformly distributed throughout the concrete and create cellular from 300kg/m3 to 1600kg/m3. The volume of air cells in foam concrete determines the density. The final mixture is then used for different applications without any vibration or compaction. Fly ash which is a waste-product at thermal power stations. The foam concrete is thus a green building material.

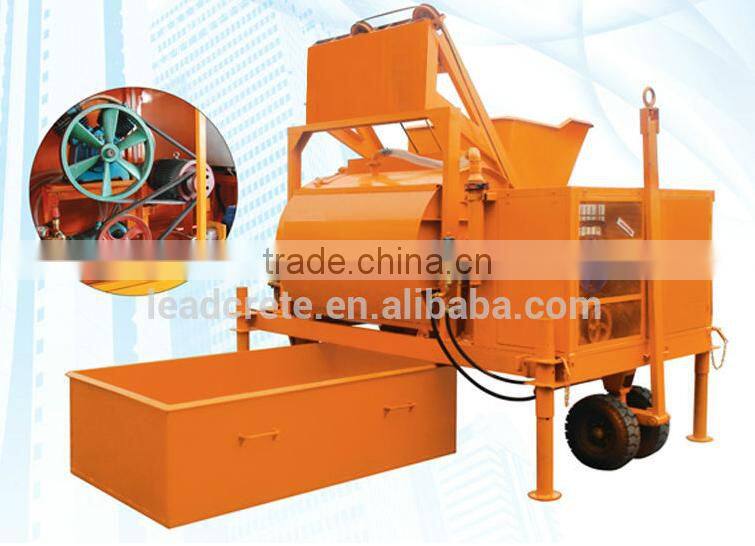

Light Weight Brick Making Machine --Mixer Technical Data:
Model |
LD-2000 |
Production capacity |
15-20 m³/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Light Weight Brick Making Machine --Pump Technical Data:
Model |
LD-30 |
Max. Output |
30 m³/h |
Max. Conveying Pressure |
8 MPa |
Max. Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max. Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
The specific production process of foam concrete machine:
1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.
2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.
3. Inject into the mold and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.
4. Preliminary maintenance: this process is done by several standing after injection moulding.
5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.
6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade;
7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.
Light Weight Brick Making Machine's Features:
- Light weight and high-strength
- Heat resistance
- Sound Insulation
- Fireproofing, aseismatic, safety
- High construction speed
- Environmental friendly
- User friendly with customization
- Fit to low budget
- Easy to handle
- Low cost, long durable

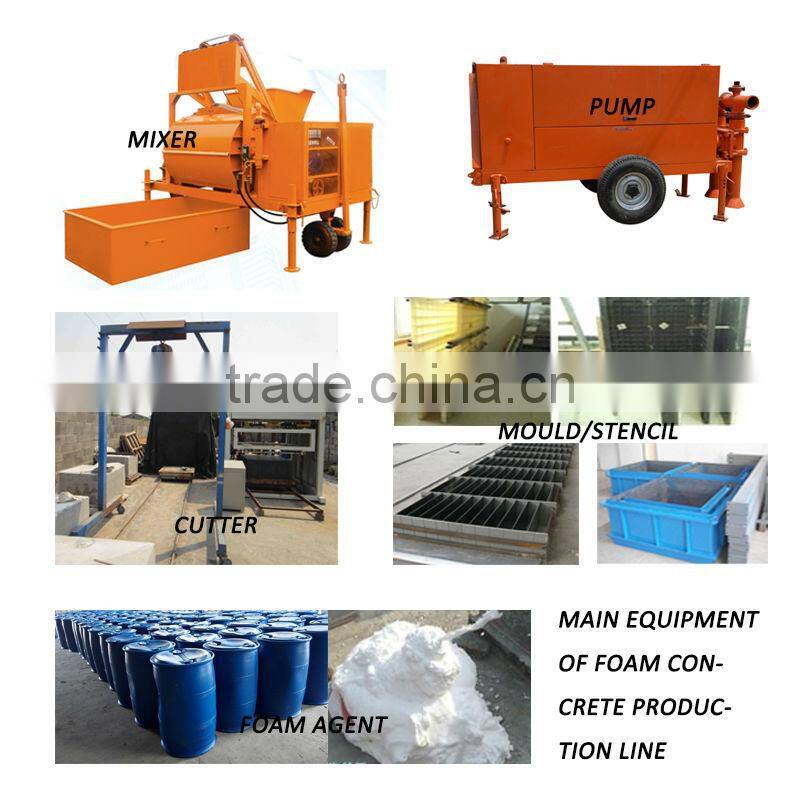

Light Weight Brick Making Machine Line:
- Foam Concrete Mixer
- Foam Concrete Pump
- Foam Concrete Block Mould
- FoamConcrete Block Cutting Machine
- Foaming Machine
- Foaming Agent
- Foam Concrete Hardener
The other Application and advantage as following:
1. Precast wall panels;
2. Cast wall in construction site;
3. Roofing insulation and flooring insulation;
4. Gap filling;
5. Sound inslution layer, tunnel lining filling;
6. Platform filling and mending.

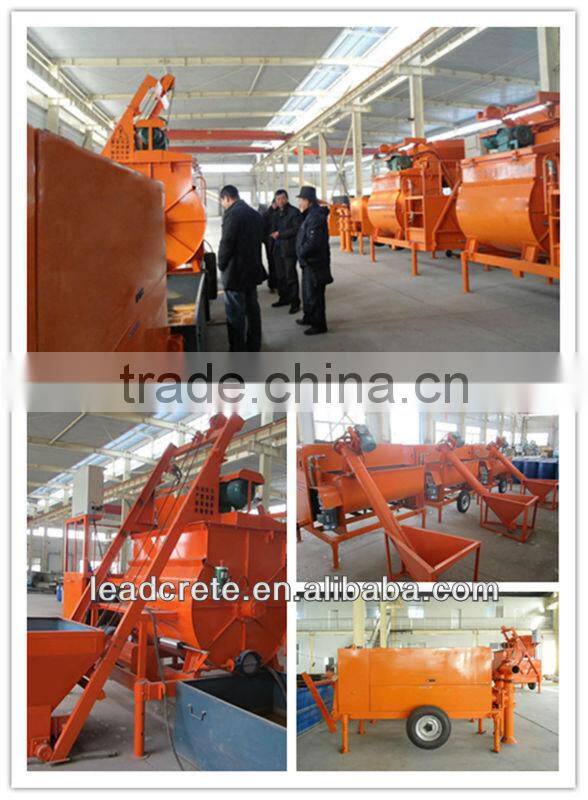

Mixer and Pump Detailed Parts Pictures:
It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm ,Net weight 3200kg);
concrete pump (3100*920*1300mm,Net weight 2200kg).
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Lead Equipment Co., Ltd (LEC) is a leading and well-known manufacturer of Concrete Foam Machine. A few of employees have been working in designing and selling above machines for about twenty years, and they can provide their customers/clients with sincerely, friendly, timely technical consultation, technical support and after-sale service.
1. Why choose Lead foam concrete blocks machine?
- Green Product
- Low Investment
- Quick returns
- Future product for Construction Industries
- Less competition in market
- Can earn more percentage of profit
- Easy to handle operations of the plant and can be owned without major engineering expertise
2. What is the electric voltage and rate?
A: Our local electric voltage is 380V and 50Hz and the electric voltage can be revised according to the local situation.
3. Warranty period your company offer for us?
A: 12 months after installation.
Thank you for stopping by, for getting offer please contact us freely.
