Foam Generator Machine
Brief Instruction:
Foam concrete brick making machine is created by uniform distribution of air bubbles throughout the mass of concrete. Foam concrete is produced by mechanical mixing of foam prepared in advance with concrete mixture, and not with the help of chemical reactions. Foam is prepared in special device - foam generator and after that mixing in foam concrete mixer, delivering by foam concrete pump.
Specifications:
1. Movable type
2. ISO,CE
3. Warranty 1year
4. Used for light concrete block
Data of Foam Generator Machine--- Mixer LD-2000:
Model |
LD-2000 |
Production Capacity |
15-20 m³/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Foam Generator Machine---Pump LD-30:
Model |
LD-30 |
Max.Output |
30 m³/h |
Max.Conveying Pressure |
8 MPa |
Max.Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max.Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
Foam Generator Machine Working Processing:
Foam Generator Machine's Features:
1. Competitive price;
2. Light weight;
3. Heat preservation;
4. Sound insulation;
5. Fire proofing;
6. Aseismatic;
7. High construction speed;
8. Environmentally friendly.
Usage of Foam Generator Machine:
1. Make light weight foam concrete blocks;
2. Precast wall panels;
3. Cast wall in construction site;
4. Roofing insulation and flooring insulation;
5. Gap filling;
6. Road base;
7. Leveling.

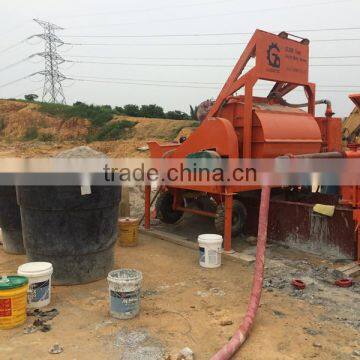

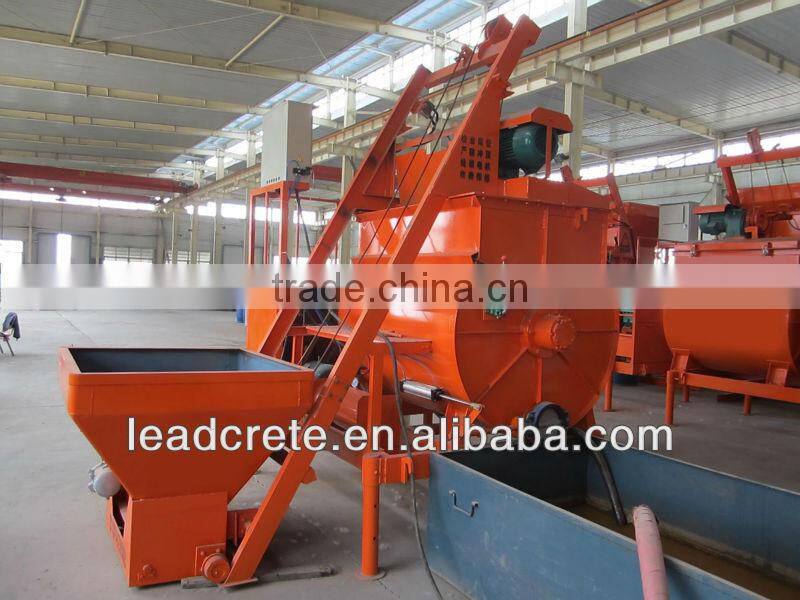

Working pictures:
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Thank you for arriving, for getting offer, please contact with us freely.
