small new foam concrete machine

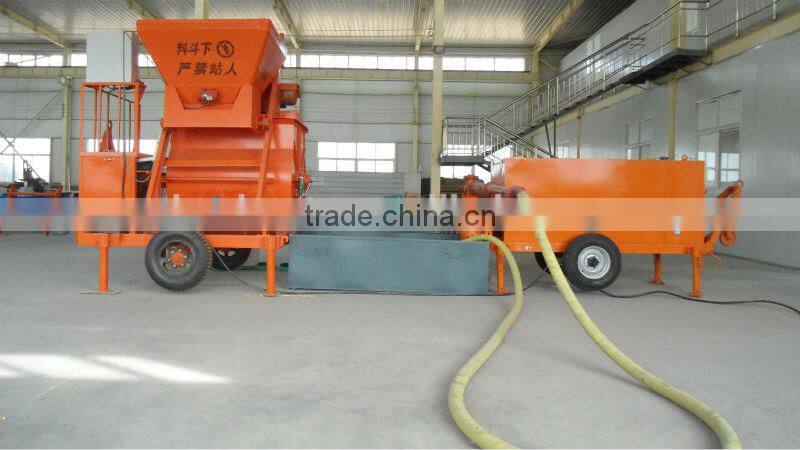

China new foam concrete pump machine LD-20 for CLC
This foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. Non-load-bearing walls constructed by cast-in-situ LD foamed concrete has changed the traditional way of building walls with precast concrete segments. The excellent integrity and easy operation means low labour intensity and low building cost. Besides, good strength characteristics with reduced eight, excellent sound and thermal insulation, and water proof, etc., all these performances make it an ideal substitute of present traditional walls.
Specifications:
concrete mixing machine
1. Movable type
2. ISO9001 CE
3. Warranty 1year
Foam Concrete Mixing Machine Features:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
Data of Lead's Foam Concrete Mixer LD-30:
Model |
LD-2000/30 |
Production Capacity |
15-20 m³/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Foam Concrete Pump LD-30 :
Model |
LD-30 |
Max.Output |
30 m³/h |
Max.Conveying Pressure |
8 MPa |
Max.Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max.Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
Usage of CLC Foam Concrete Machine:
1. Make lightweight foam concrete blocks
2. Precast wall panels
3. Cast wall in construction site
4. Roofing insulation and flooring insulation
5. Gap filling
6. Road base
7. Leveling

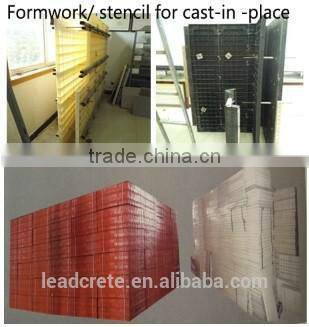

The stencil/formwork for cast-in-place
Successful Cases:
Working picture
It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm ,Net weight 3200kg);
concrete pump (3100*920*1300mm, Net weight 2200kg).
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Thank you for your arriving, for getting offer please contact with us freely.
