concrete block cutting machine

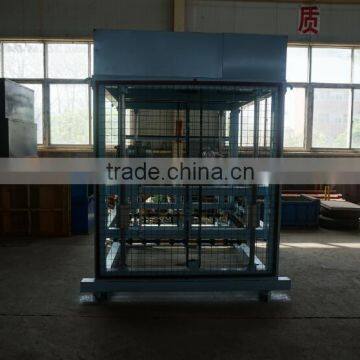

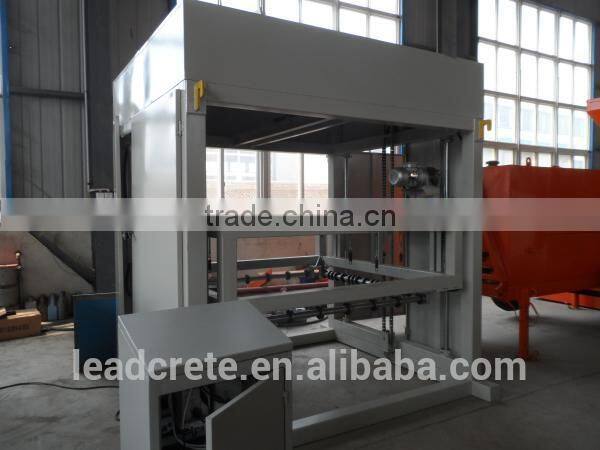

CE OEM hot lightweight foamed concrete block cutting machine
Brief Instruction:
Block Cutting Machine is a new product in the foam concrete plant, It is specially used to cut various foam concrete blocks. Easy operation, high efficiency.
Main performance:
1. The lifting motor adopt the standard automatically brake motor.
2. Lifting speed could be adjusted through the frequency converter.
3. The block size between 100-200-300-400-500-600-700-800-900-1000-1100-1200mm could be adjusted willfully.
4. All motors are equipped with speed reducers.
New block cutting machine special performances:
1. Six shafts equipped with bearings, reduce the friction, and increase the rope wire lifetime.
2. Both horizontal and vertical cutting are cutting both way, keep the blocks more stable, and get good shape blocks.
3. Lifting speed could be also adjusted under the chain drive and lifting motor, more stable.
4. Two cutting motors equipped on the cutting frame, save space, and make the structure more impact.
5. Steel doors instead of the guard grids, more easy for daily maintenance.
6. Add cover on the top of the cutting machine, make the cutter elegant appearance.
7. Improved the control panel too, it is available for 380V/50HZ~460V/50HZ.
Technology data:
Name |
LD-30B Block Cutting Machine |
||
Electric Motor (Kw) |
|
||
Effective hoisting height |
700mm |
||
|
1240*1240*225mm |
||
Net cutting size (L*W*H) |
1200*1200*600mm |
||
Cutting cycle |
60-180seconds |
||
Overall dimension (L*W*H) |
2160*2060*2280mm |
||
Total weight |
1100kg |
COMMERCIAL TERMS:
1. GUARANTEE: 1YEAR
2. DELIVERY TIME: WITHIN ONE WEEK ONCE RECEIPT THE DEPOSIT
3. TERMS OF PAYMENT: T/T
4. SPARE PARTS: STEEL WIREROPE 500M
Production Capacity | ||
0.8643M^3 |
600*200*75mm |
96 pcs/mould |
0.8643M^3 |
600*200*100mm |
72 pcs/mould |
0.8643M^3 |
600*200*150mm |
48 pcs/mould |
0.8643M^3 |
600*200*200mm |
36 pcs/mould |
0.8643M^3 |
600*200*300mm |
24 pcs/mould |
A complete Block Cutting machine
No. |
Name |
Qty. |
Unit |
Remarks |
1. |
Wire cutting machine |
1 |
set |
|
2. |
Hook |
20 |
pcs |
|
3. |
Spring |
20 |
pcs |
|
4. |
Steel wirerope |
500 |
m |
|
5. |

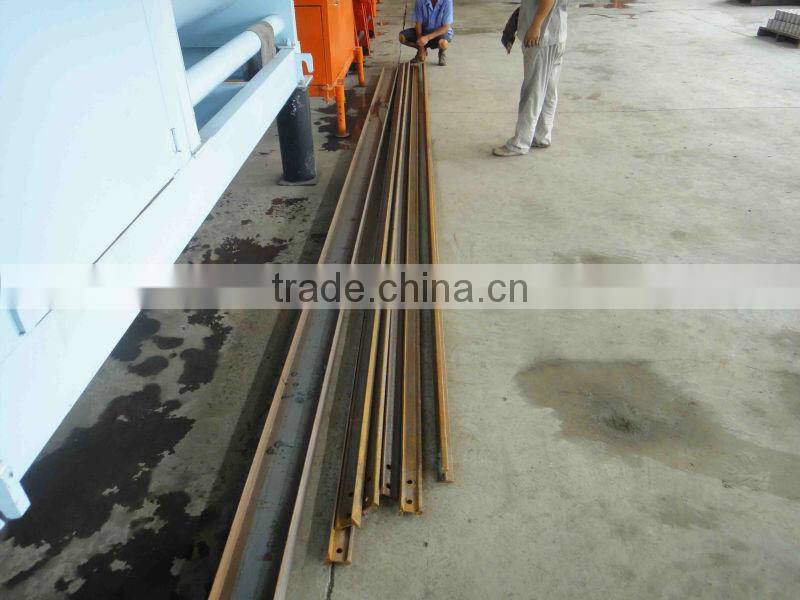

rail |
2 |
pcs |
6m/pc |

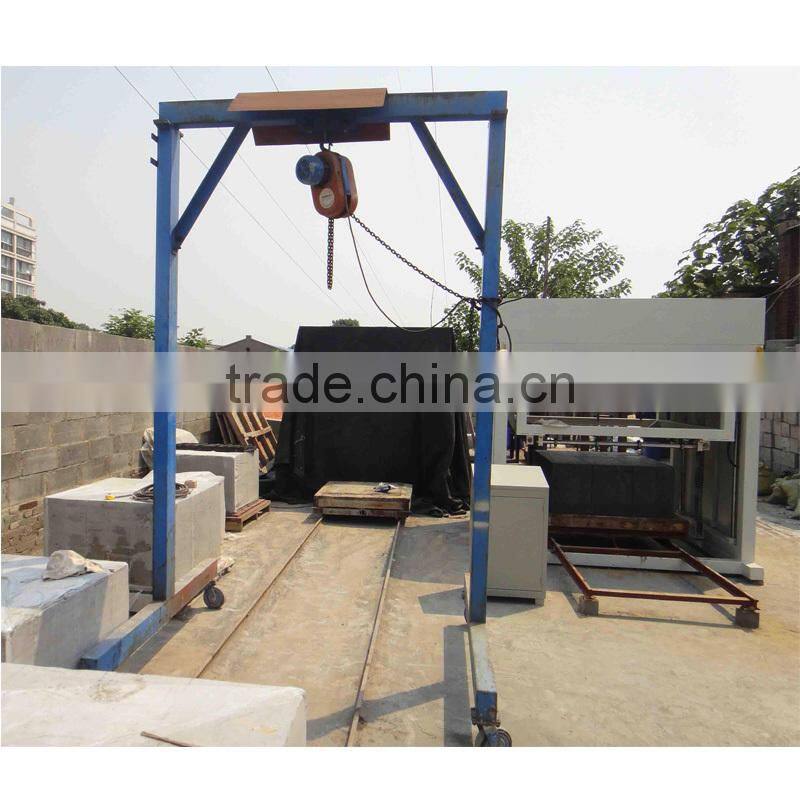

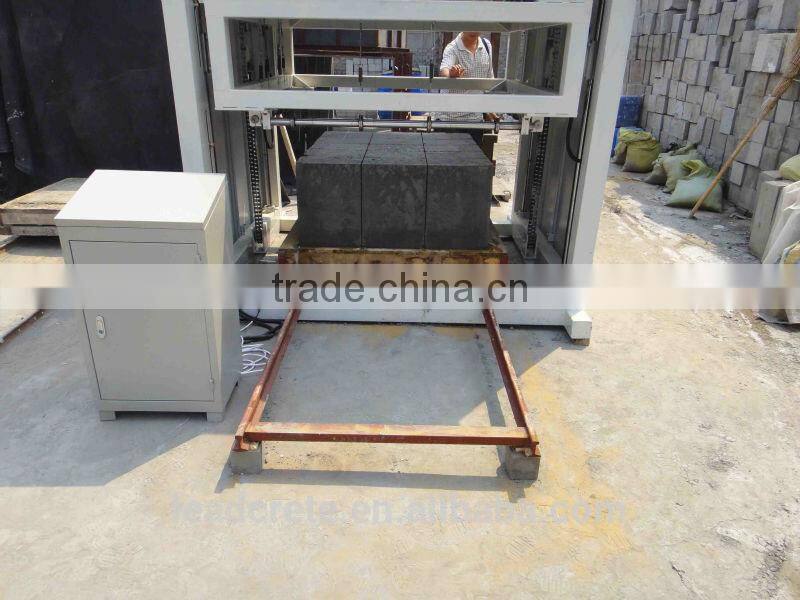

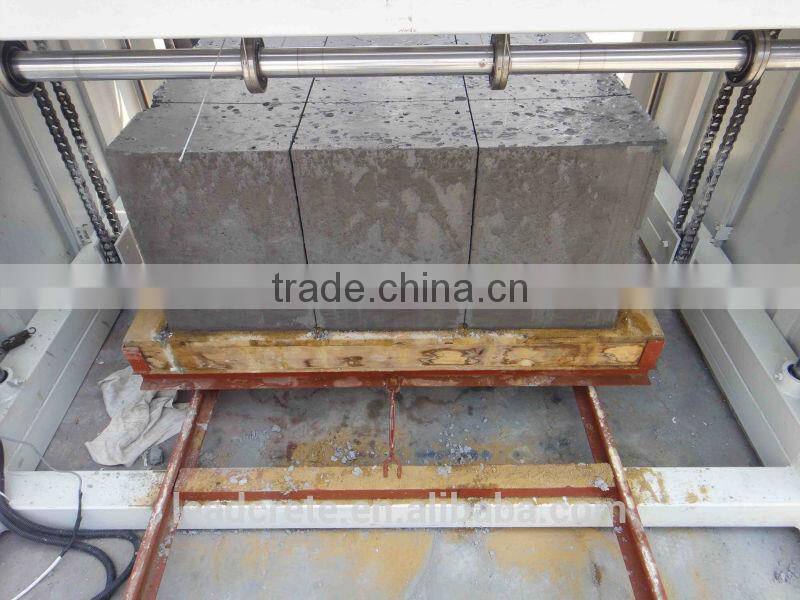

The working site of our block cutting machine :

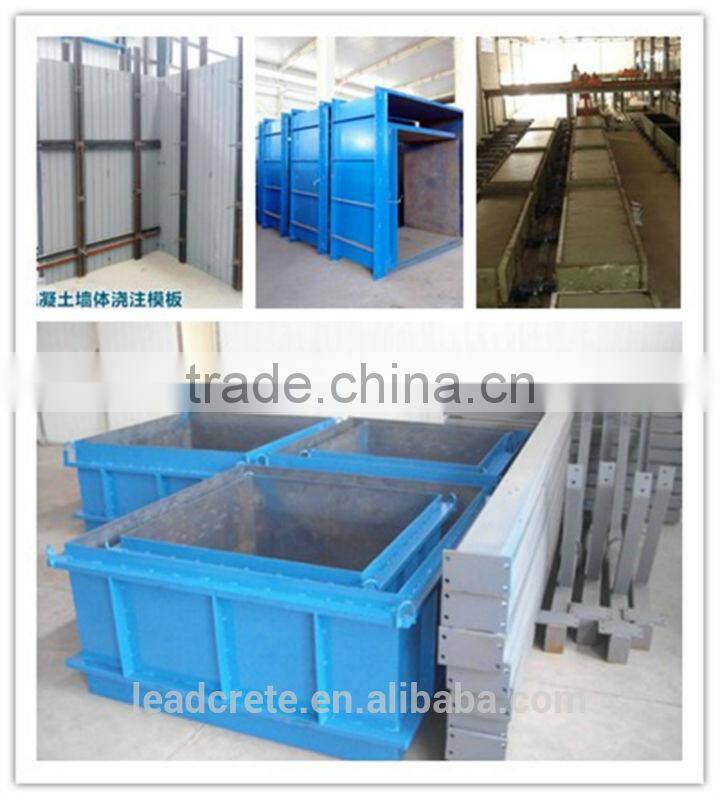

PPC Plate Mould:
The Mould include the PPC Frame and wooden plate trailer
Overall dimension (L*W*H): 1200*1200*600mm
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Thank you for stop here to look through our products, for getting offer for your project please contact with us without hesitation. Believe LEAD, believe your choose.
