foam machine with manual mould
CLC lighweight foam concrete block machine with manual mould
Brief Introduction of Foam Concrete:
Foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. Non-load-bearing walls constructed by cast-in-situ. Foamed concrete has changed the traditional way of building walls with precast concrete segments. The excellent integrity and easy operation means low labour intensity and low building cost. Besides, good strength characteristics with reduced eight, excellent sound and thermal insulation, and water proof, etc., all these performances make it an ideal substitute of present traditional walls.
Specifications:
foam concrete mixer
1. Movable type
2. ISO9001 CE
3. Warranty 1year
4. Used for light concrete block
Foam Concrete Mixer Features:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
A Complete Foam Concrete Machine:
1. Foam Concrete Mixer
2. Foam Concrete Pump
3. Foam Concrete Block Mould
4. FoamConcrete Block Cutting Machine
5. Foaming Machine
6. Foaming Agent
7. Foam Concrete Hardener
Data of Lead's Foam Concrete Mixer LD-2000:
Model |
LD-2000 |
Production Capacity |
15-20 m3/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Foam Concrete Pump LD-30 :
Model |
LD-30 |
Max.Output |
30 m3/h |
Max.Conveying Pressure |
8 MPa |
Max.Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max.Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
The Application of Foam Concrete Mixer Machine:
1. Make lightweight foam concrete blocks
2. Precast wall panels
3. Cast wall in construction site
4. Roofing insulation and flooring insulation
5. Gap filling
6. Road base
7. Leveling
The specific production process of foam concrete mixer machine:
1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.
2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.
3. Inject into the mold and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.
4. Preliminary maintenance: this process is done by several standing after injection moulding.
5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.
6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade;
7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.

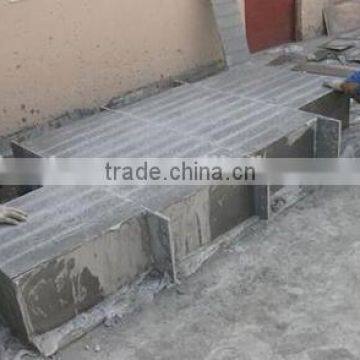

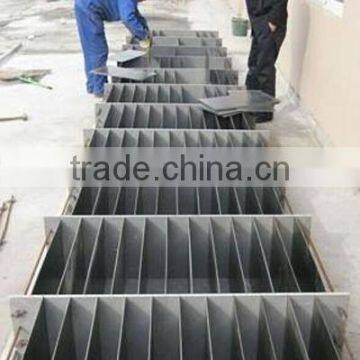

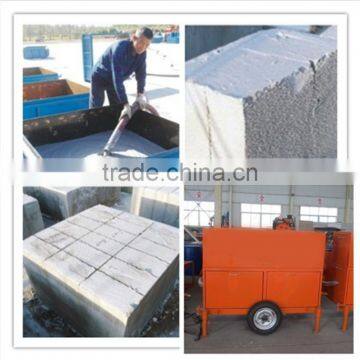

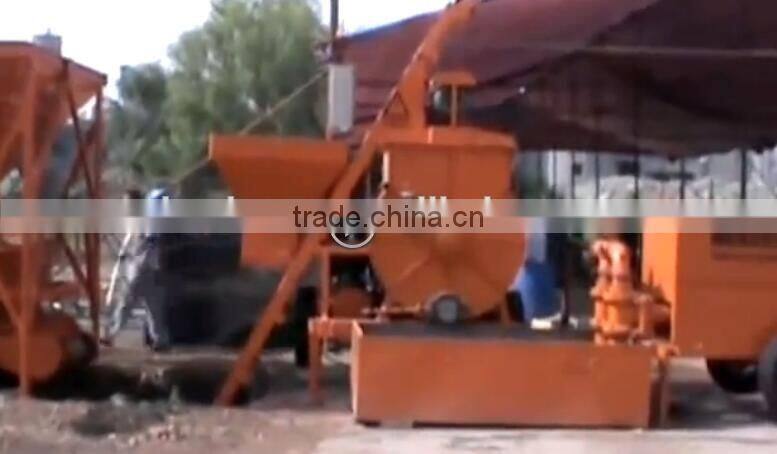

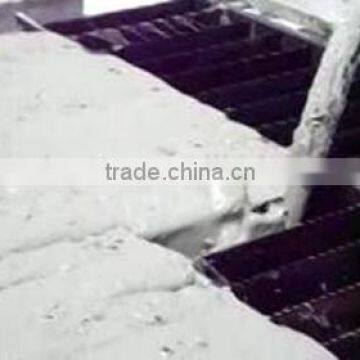

Test photos:
It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm ,Net weight 3200kg);
concrete pump (3100*920*1300mm, Net weight 2200kg).
