High efficiency foam cement block/brick making machine
Brief Instruction:
Foam concrete is created by uniform distribution of airbubbles throughout the mass of concrete. Foam concrete is produced by mechanical mixing of foam prepared in advancewith concrete mixture, and not with the help of chemical reactions. Foam is prepared in special device-foam generaor and after that mixing in foam concrete mixer, delivered by foam concrete pump.
Foam Concrete Mixer Technical Data LD-30:
Model |
LD-30 |
Production Capacity |
15-20 m3/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000mm |
Foam Concrete Pump Technical Data LP-30:
Model |
LP-30 |
Max.Output |
30 m3/h |
Max.Conveying Pressure |
8 MPa |
Max.Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max.Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |

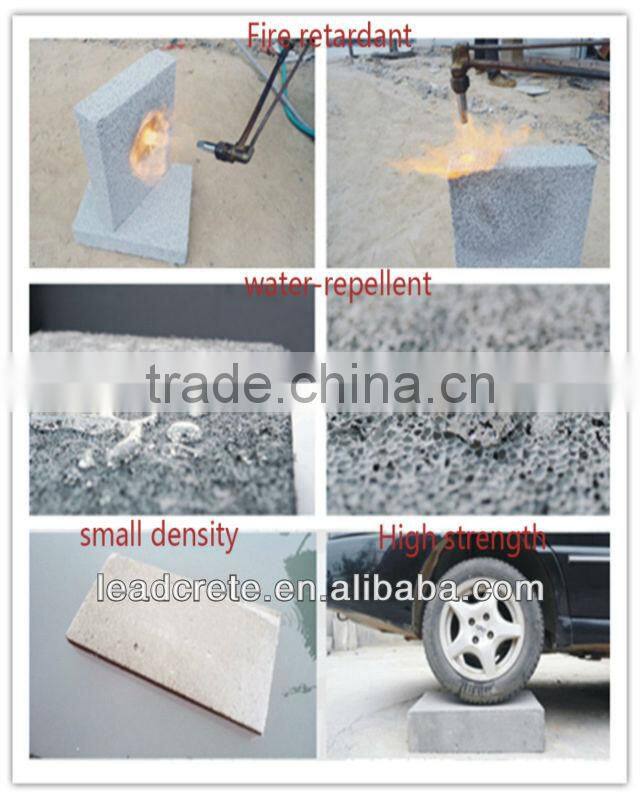

Foam Concrete Machine's Features:
1. Competitive price;
2. light weight;
3. heat preservation;
4. sound insulation;
5. fire proofing;
6. aseismatic;
7. high construction speed;
8. environmentally friendly.
A complete of Foam Concrete Machine line:
1. Foam Concrete Mixer;
2. Foam Concrete Pump;
3. Foam Concrete Block Mould;
4. FoamConcrete Block Cutting Machine;
5. Foaming Machine;
6. Foaming Agent;
7. Foam Concrete Hardener.

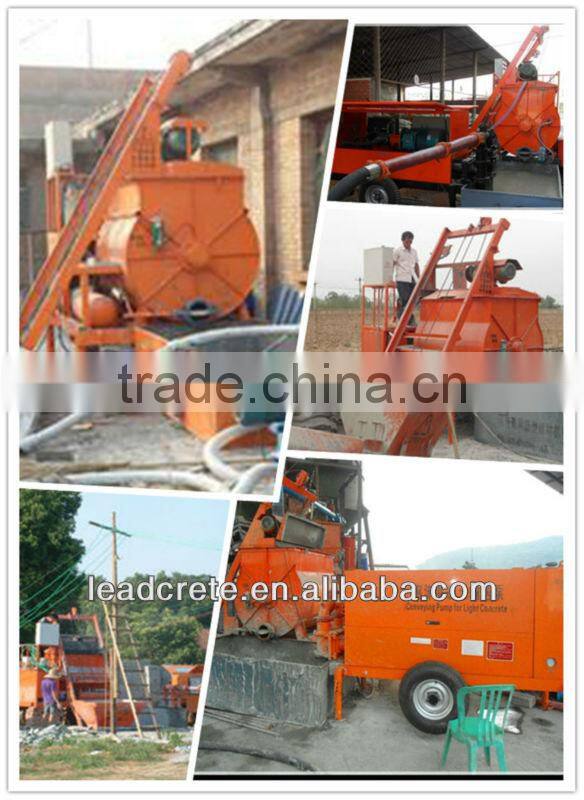

Foam Concrete Machine Pictures:

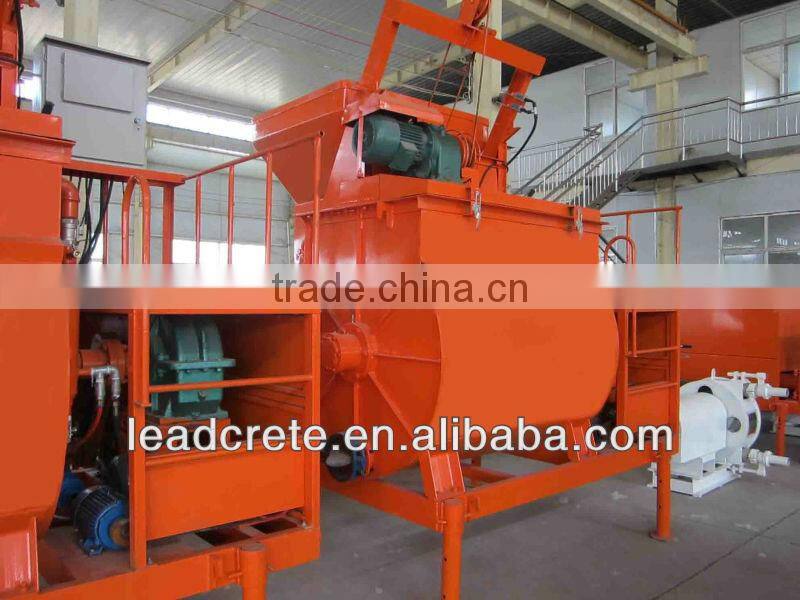

Detailed parts of the mixer and pump

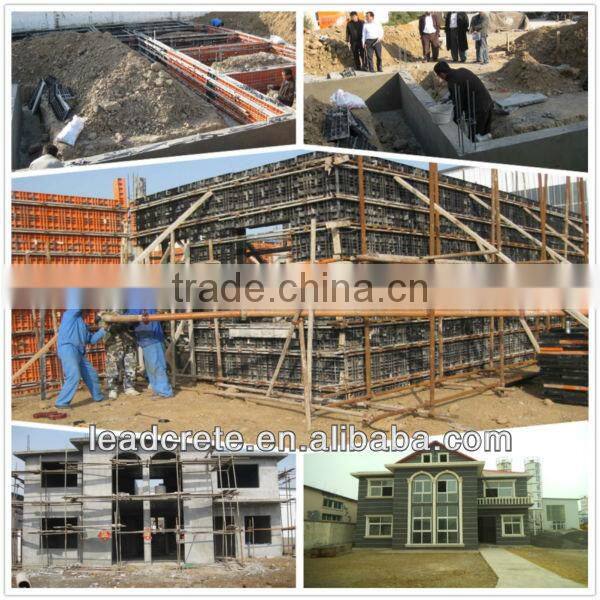

Working pictures:
Test photos:
It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm ,Net weight 3200kg)
concrete pump (3100*920*1300mm,Net weight 2200kg)
Foam Concrete Machine Other applications:
1. Precast wall panels;
2. Cast wall in construction site;

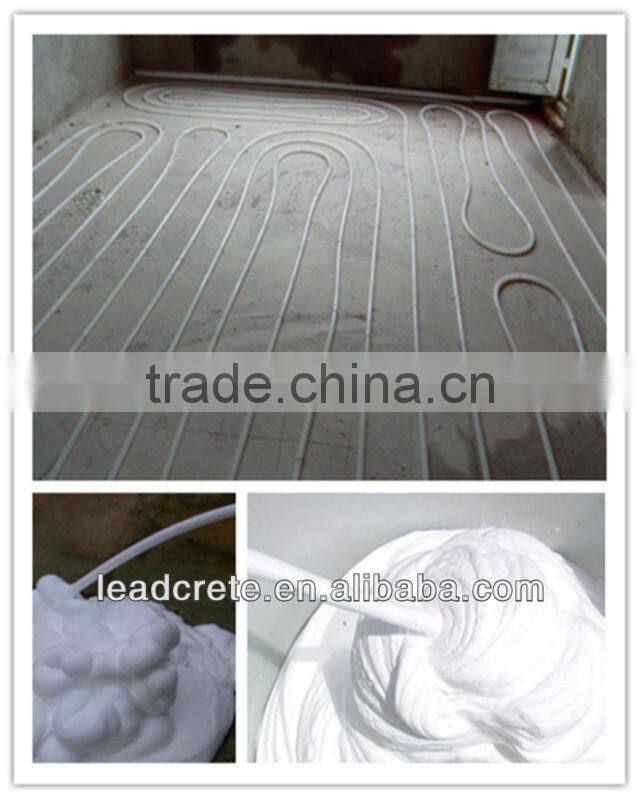

3. Roofing insulation and flooring insulation;
4. Gap filling;
5. Sound inslution layer, tunnel lining filling;
6. Platform filling and mending.
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Thank you for stopping by, if you need offer, please contact with us freely.
