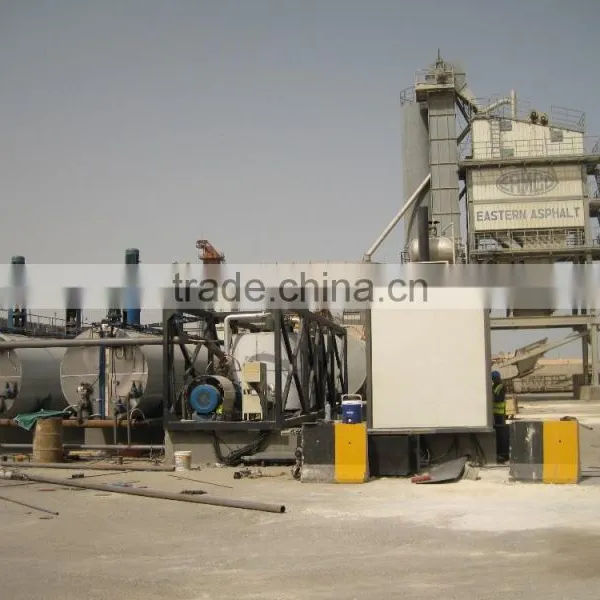

Modified Bitumen Plant

Part

Name

Parameter

Supplier

Remark

Total

Capacity

≤15T/h

Work voltage

380V/50HZ

Total power

≤115Kw

Optional not included

Mixture preparation system size and weight

9000×2200mm×2500mm,15t

1 piece

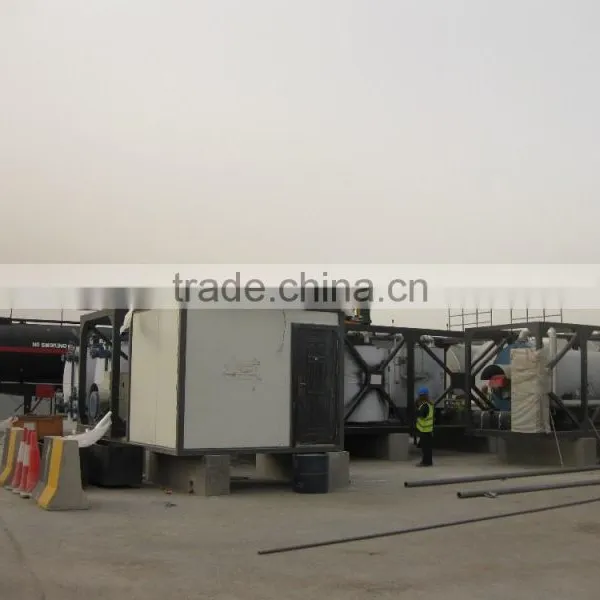

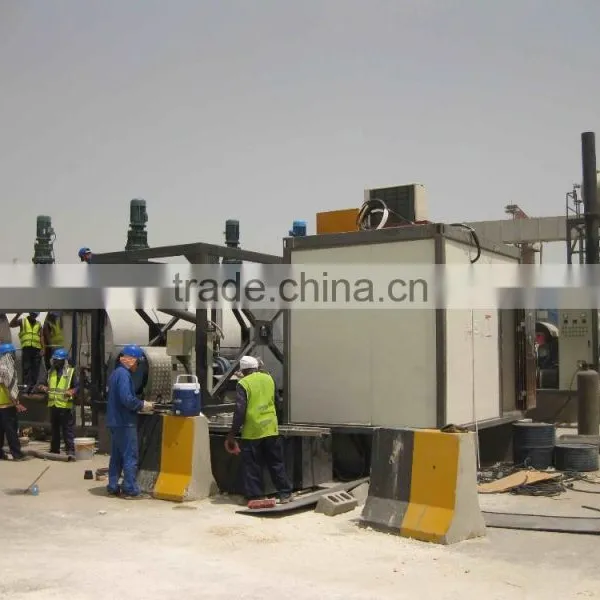

Control room size and weight

3000mm×2200mm×2500mm,3t

1 piece

Minimum clearance in the mill

0.01mm

Ratio between bitumen and modifier

100:1~100:10

Structure

Mobile

Measure

Bitumen

frequency conversion measure bitumen pump

precision±0.5%

Modifier

frequency conversion screw+weigh sensor

precision±0.3%

Control

manual+ automatic

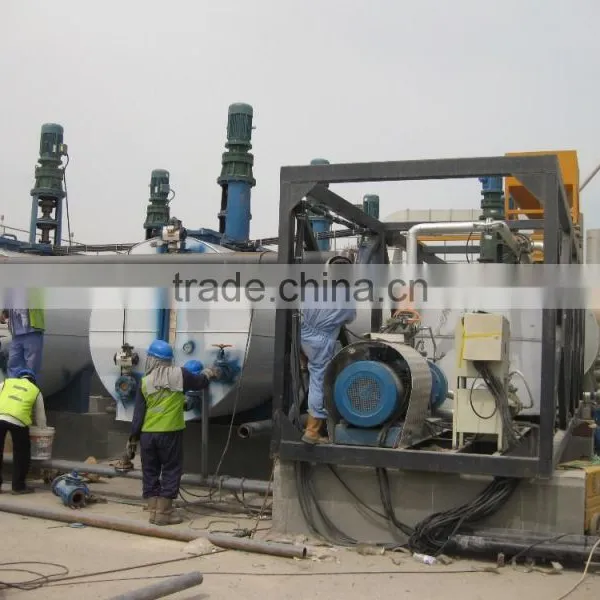

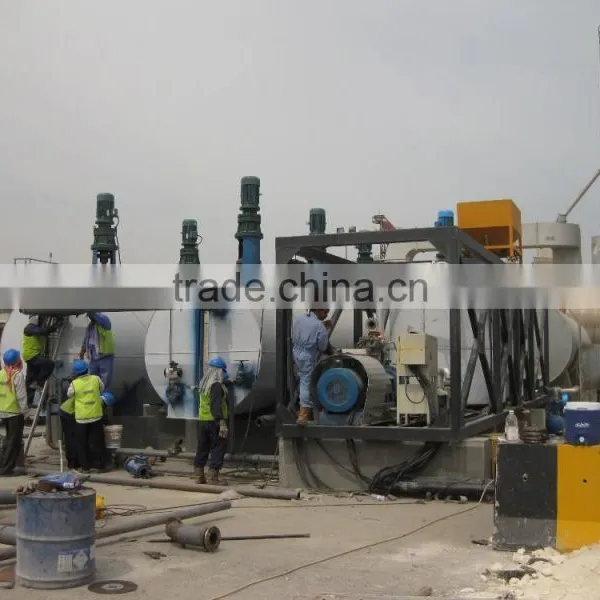

Mixture preparation system

High speed shearing mill

15t/h,75Kw

Huatong

With cooler device and insulation at the mill head

Basic bitumen pump

680L/min,11Kw

Shanggui

Thermal insulation

Basic bitumen filter

50m³/h

Metong

Thermal insulation

Spiral heat exchanger

100M2

Wuxi

Temperature sensor

PT100

Xinghua zhenye

Premix tank

4m3

Metong

Mixer in premix tank

Modifier crusher

Metong

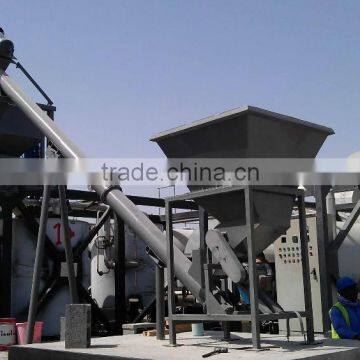

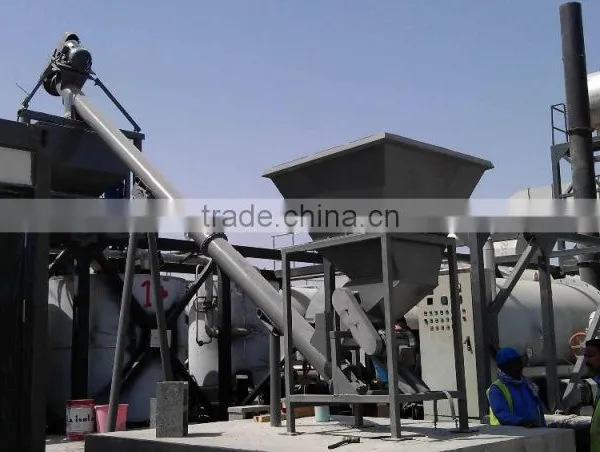

Modifier feed screw

6m³/h,4Kw

Boneng

Frequency converter

Modifier weigh hopper

0.7m³

Metong

Mixture output pump

450L/min,7.5Kw

Shanggui

Frequency converter with insulation

Weight sensor

Zhuhai changlu

High fluid level alarm

Air system

Air compressor

0.7m³/min,3Kw

Dafeng weihai

Contorl system

Manual+ automatic

Main components

Schneider

Schneider

Frequency converter

M440

Siemens

Siemens

PLC

Siemens

Siemens

Stabilizer feed system(powder)

Screw conveyor

5kg/min

Optional

Stabilizer feed system(fluid)

Storage tank

5m³

South Furnace

Mixer

5.5Kw

Feed pump

45L/min,1.5Kw

Weigh sensor

Cosolvent feed system

Storage tank

5m³

Mixer

5.5Kw

Feed pump

50L/min,2.2Kw

Weigh sensor

Reaction system

Reaction tank

25m³

Optional

Mixer

Output pump

Heat system

Hot oil furnace

80
