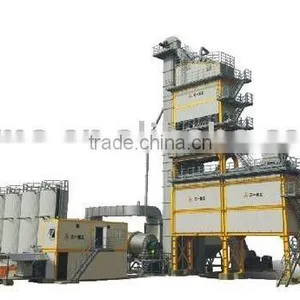

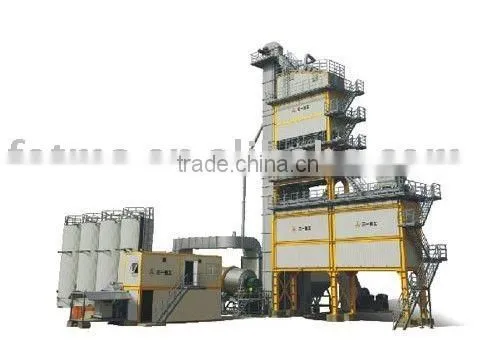

SANY Asphalt Mixing Plant SLB5000

Specifications

SANY Asphalt Mixing Plant SLB5000

1. Model: SLB5000

2. Rated production capacity: 400 ton/hour(Standard)

3. Fuel consumption: 6.5 kg/ton mixture(Standard)

4. Static state measuring accuracy: Asphalt 0.15%,Powder 0.2%,Aggregate 0.3%

5. Trends measuring accuracy: Asphalt 1%,Powder 1.5%,Aggregate 2%

6. Oil-stone ratio error:  ≤0.1%

7. Discharge≤20mg/Nm3 , Ling mann blackness first level

8. Standard installed capacity: 998 Kw

9. Max single-machine capacity: 185 Kw

10. Structure and install: the modular arrangement, Can move

11. end product bunker capacity: 200 ton

12. Equipment land area: 2588 m²

13. Power demand: Exchange 50 Hz,380 V,three-phase four-wire system,1000 kw.
