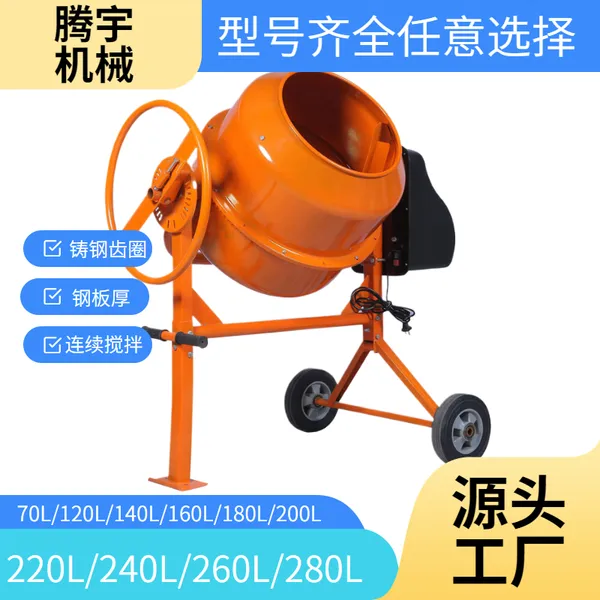

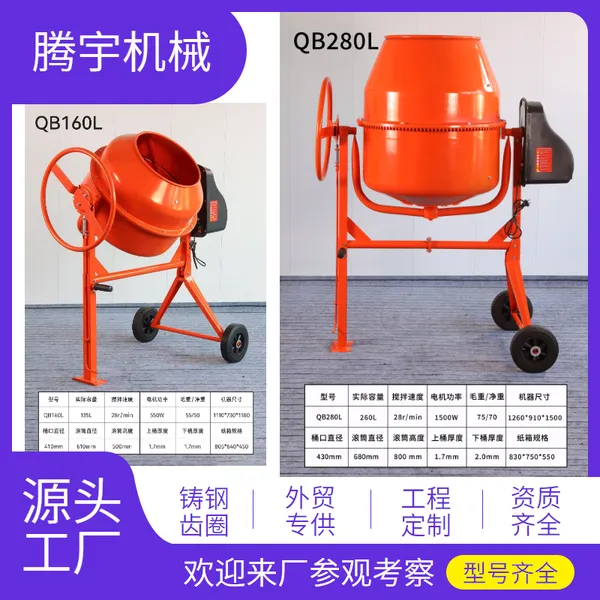

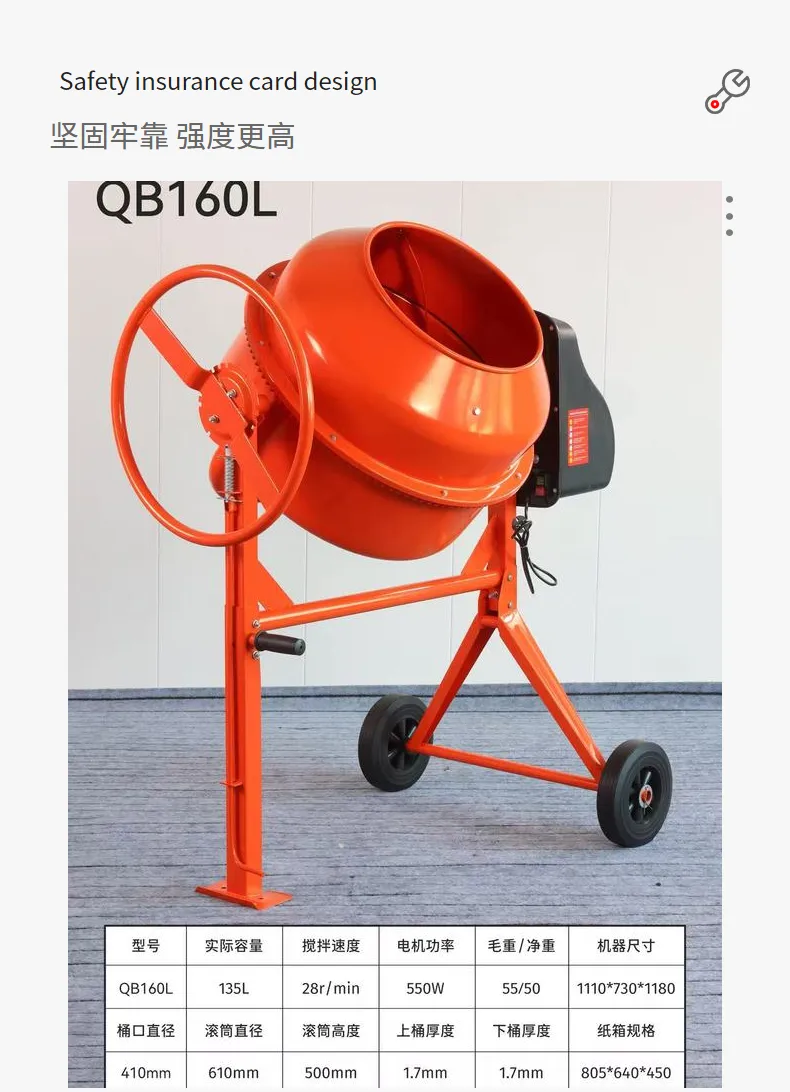

Help Center220V Small Electric Concrete Mixer Portable Mortar Mixer for Construction Site & Farm
Product Spotlights
- Cast steel gear ring, durable and stable
- Uniform mixing at 28r/min, high efficiency
- 70L-240L multiple capacities optional
- Lightweight portable design, easy to move
- Wide application for concrete & mortar mixing
Related Products
-
TYMP-1300 Automatic Mortar Plastering Robot Interior Wall Plastering Leveling MachineNegotiableMOQ: 1 Case -
Jining Tengyu Planetary Pipe Cutting Machine Stainless Steel Pipe CutterNegotiableMOQ: 1 Case
-
150 Model Mini Steel Cannon Airless Paint Sprayer Portable High Pressure Spraying MachineNegotiableMOQ: 1 Case
-
Automatic Floor Leveling Robot BH-750 Intelligent Floor Leveling Robot Automatic Concrete Floor Leveling MachineNegotiableMOQ: 1 Case
-
Industrial Floor Leveling Robot Indoor Concrete Screeding RobotAutomatic Floor Leveling Robot 750NegotiableMOQ: 1 Case
1. Wide Application
Suitable for concrete and mortar mixing in construction sites, household renovation, farms, breeding farms and various small engineering projects.
2. Durable Transmission Structure
Adopts high-strength cast steel gear ring for the transmission part, with strong wear resistance, stable operation and long service life.
3. Stable Mixing Performance
Constant mixing speed at 28r/min, ensures even and sufficient mixing of concrete, mortar and other materials.

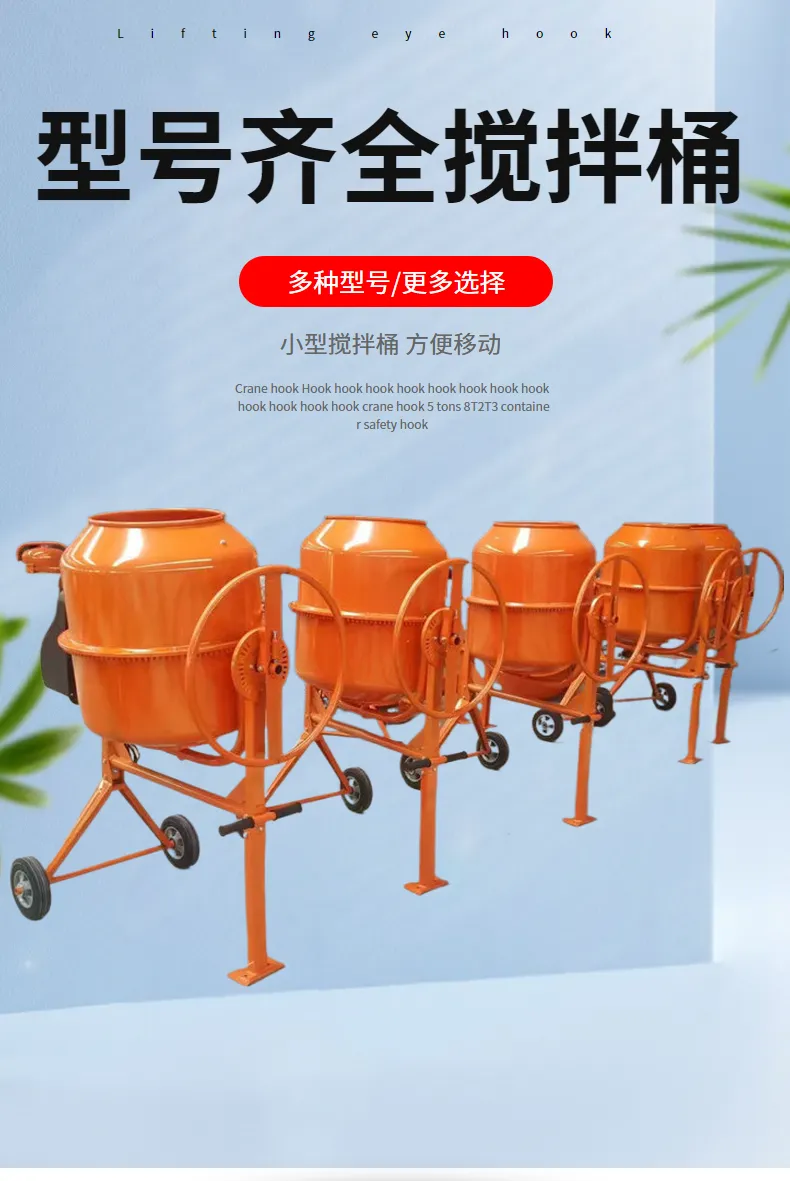

4. Flexible Capacity Selection
7 models with capacities ranging from 70L to 240L are available, meeting different construction volume and usage scenario requirements.
5. Convenient Power Supply
Standard 220V household voltage, can be used normally wherever there is a power supply, no need for special power configuration.
6. Sturdy & Portable

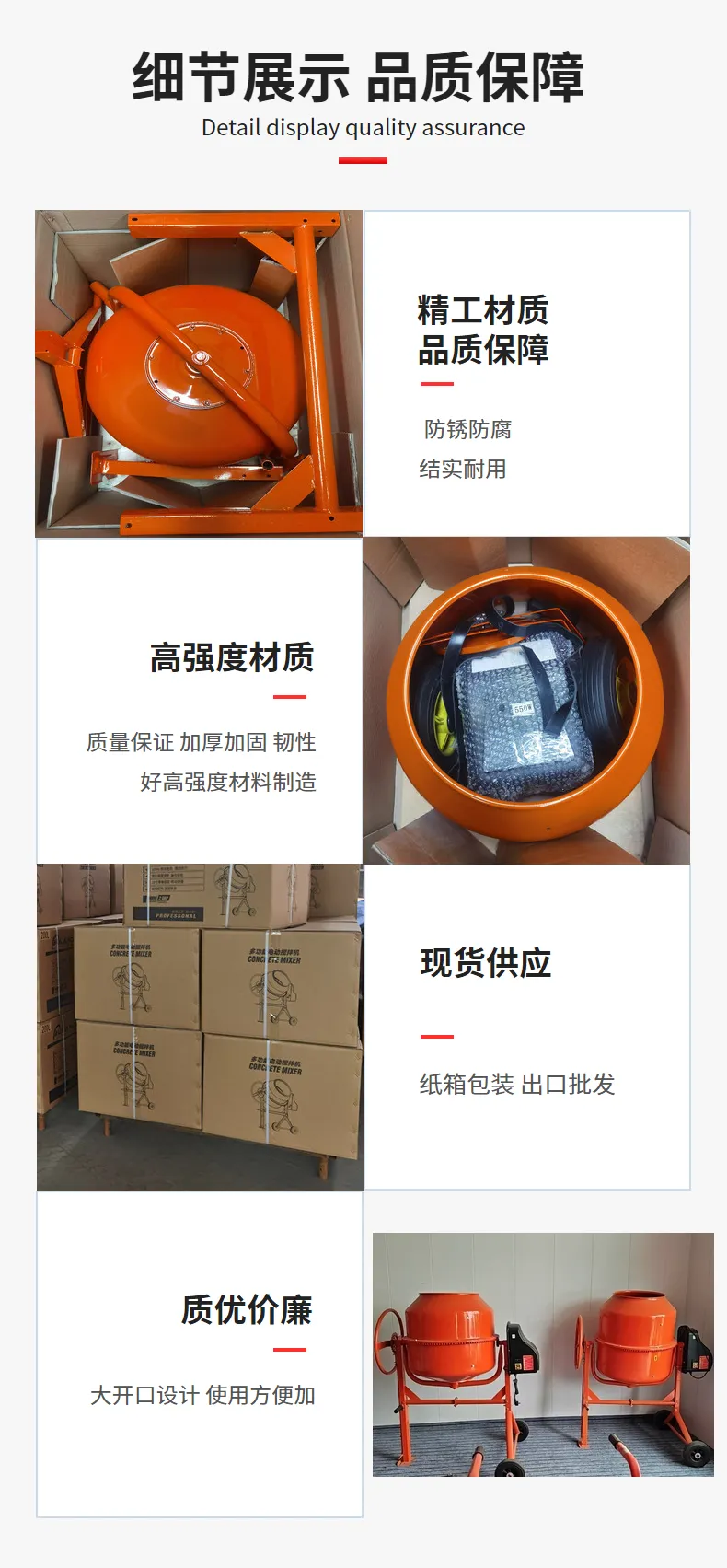

Thickened steel drum with strong pressure resistance; compact structure, moderate weight, easy to transport, move and store.
7. Easy Operation & Maintenance
Simple structure, easy to operate and maintain, low failure rate, suitable for long-term frequent use on construction sites.

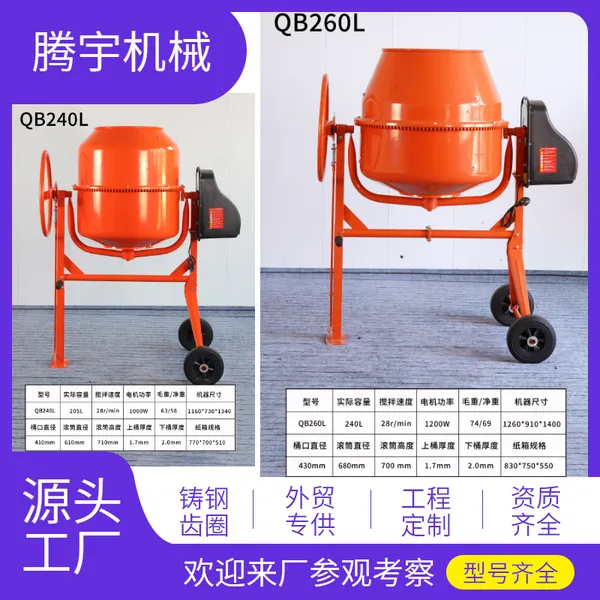

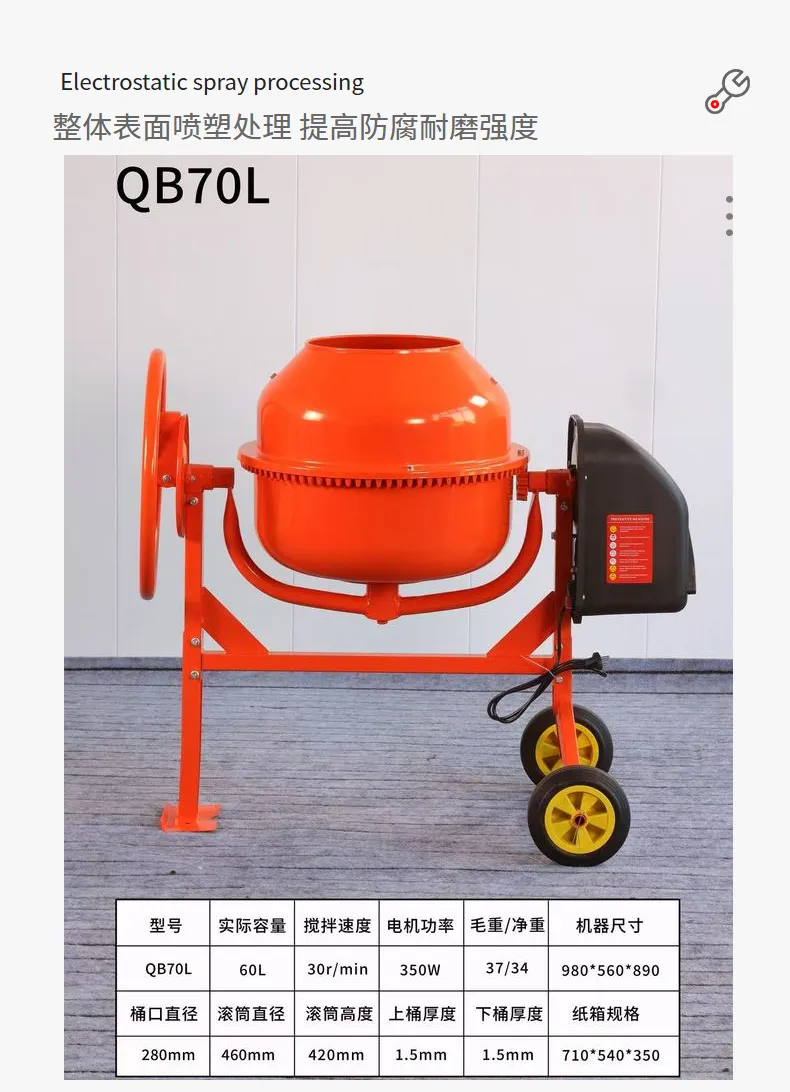

Specification Item TY-70L TY-120L TY-140L TY-160L TY-180L TY-200L TY-240L
Model TY-70L TY-120L TY-140L TY-160L TY-180L TY-200L TY-240L
Capacity 70L 120L 140L 160L 180L 200L 240L
Transmission Material Cast Steel Gear Ring Cast Steel Gear Ring Cast Steel Gear Ring Cast Steel Gear Ring Cast Steel Gear Ring Cast Steel Gear Ring Cast Steel Gear Ring
Mixing Speed 28r/min 28r/min 28r/min 28r/min 28r/min 28r/min 28r/min
Voltage 220V 220V 220V 220V 220V 220V 220V
Motor Power 850W 850W 1000W 1000W 1200W 1200W 1200W
Upper Drum Diameter 300mm 330mm 350mm 350mm 420mm 420mm 420mm
Lower Drum Diameter 460mm 510mm 570mm 570mm 610mm 610mm 610mm
Inner Height of Upper Drum 205mm 290mm 290mm 350mm 220mm 290mm 360mm
Inner Height of Lower Drum 215mm 219mm 280mm 280mm 350mm 350mm 350mm
Upper Drum Thickness 1.5mm 1.5mm 1.5mm 1.5mm 2mm 2mm 2mm
Lower Drum Thickness 1.5mm 2mm 2mm 2mm 2mm 2mm 2mm
Gross Weight 36kg 53kg 56kg 59kg 62kg 65kg 69kg
Net Weight 33kg 50kg 53kg 56kg 59kg 62kg 65kg
Machine Dimension 950×560×860mm 1070×720×1170mm 1120×720×1160mm 1120×720×1220mm 1200×720×1300mm 1200×720×1370mm 1200×720×1440mm
Carton Dimension 700×540×330mm 780×580×480mm 800×650×480mm 800×650×540mm 850×720×530mm 850×720×530mm 850×720×530mm
